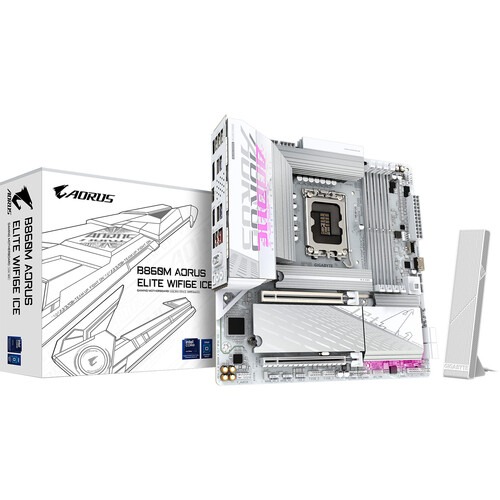

Gigabyte B860M Aorus Elite WiFi6E ICE LGA 1851 mATX Motherboard
Brand: Gigabyte
SKU: B860M A ELT WF6E ICE
Price: ₹20,100 (inclusive of GST · genuine product with warranty)
Micro-ATX Form Factor Intel B860 Chipset LGA 1851 Socket 4 x Dual-Channel DDR5 Slots 1 x PCIe 5.0 x16 with PCIe UD Slot 1 x PCIe 4.0 x4 4 x SATA III | 3 x M.2 2.5GbE LAN | Wi-Fi 6E | Bluetooth 5.3 EZ-Latch Plug, Plus, and Click Support for Windows 11 (64-Bit)
Specifications
| color | WHITE |
|---|---|
| Socket | LGA 1851 |
| Chipset | B860 |
| Platform | INTEL |
| RAM type | DDR5 |
| Warranty | 3 Years |
| Motherboard Size | mATX |
| Motherboard Series | Gigabyte Aorus |
About this product
GIGABYTE B860M AORUS ELITE WIFI6E ICE Intel Core Ultra (Series 2) LGA 1851 Motherboard, mATX, DDR5, 3x M.2, PCIe 5.0, USB-C, WIFI6E, 2.5GbE LAN, EZ-Latch
Key Features
Supports Intel® Core™ Ultra processors (Series 2)
Digital twin 12+1+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
Extended Connectivity : USB4 Type-C with DP-Alt, HDMI, DisplayPort
Category
Specification
CPU
LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU
Chipset
Intel® B860 Express Chipset
Memory
Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support: – 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 2.1 version. – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 2.1 version. – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz * Support for HDMI 1.4 version. (Graphics specifications may vary depending on CPU support.) Support for up to quad-display at the same time
