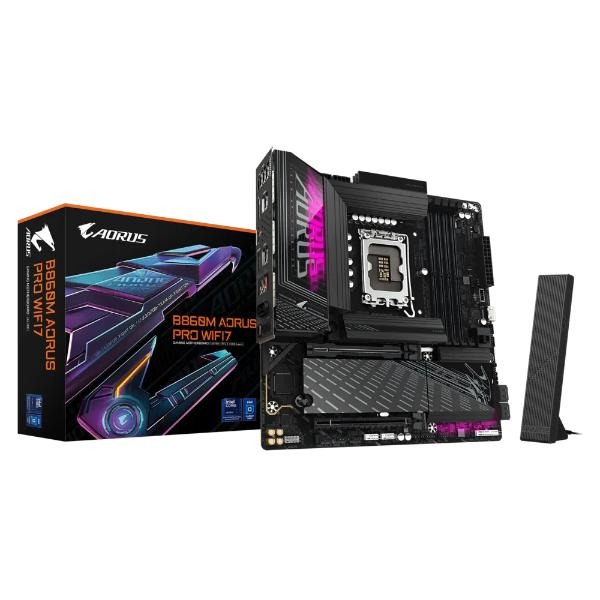

Gigabyte B860M AORUS PRO WIFI7 Motherboard
Brand: Gigabyte
SKU: B860M-A-PRO-WIFI7
Price: ₹20,770 (inclusive of GST · genuine product with warranty)
Supports Intel® Core™ Ultra processors (Series 2) Digital 12+1+2 phases VRM solution Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive : Provides optimal and customized BIOS preset profile for users WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click : M.2 heatsinks with screwless design Sensor Panel Link : O
Specifications
| Socket | LGA 1851 |
|---|---|
| Chipset | B860 |
| Platform | INTEL |
| RAM type | DDR5 |
| Warranty | 3 Years |
| Motherboard Size | mATX |
| Motherboard Series | Gigabyte Aorus |
About this product
Gigabyte B860M AORUS PRO WIFI7 Motherboard
Gigabyte supports Intel® Core™ Ultra processors (Series 2)
Digital 12+1+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : USB4 Type-C with DP-Alt, HDMI, DisplayPort
Category
Specification
CPU
LGA1851 socket: Supports Intel® Core™ Ultra Processors (L3 cache varies with CPU)
Chipset
Intel® B860 Express Chipset
Memory
Supports DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400 / 5600 MT/s 4 x DDR5 DIMM slots, up to 256GB (64GB per slot) Dual-channel architecture Supports ECC & non-ECC Unbuffered DIMMs Supports XMP memory modules
Onboard Graphics
Intel® HD Graphics Display Outputs: – 1 x USB4® USB-C (DP 2.1, 3840×2160@144Hz) – 1 x DisplayPort (2.1, 3840×2160@144Hz) – 1 x HDMI (2.1, 4096×2160@60Hz) – 1 x Front HDMI (1.4, 1920×1080@30Hz) Supports quad-display output
