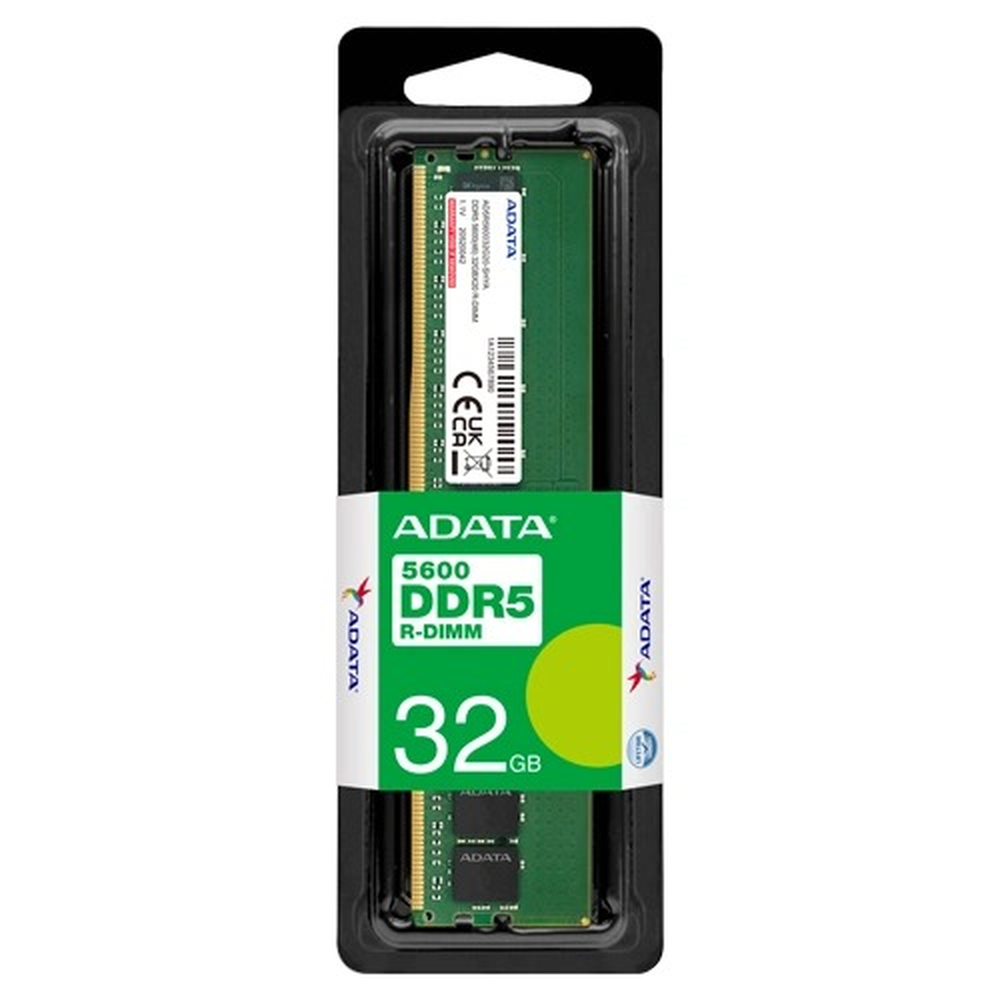

ADATA DDR5 R-DIMM 32GB 5600MHz CL46 ECC Server/Workstation RAM
Brand: Adata
Price: ₹1,05,048 (inclusive of GST · genuine product with warranty)
ADATA DDR5 R-DIMM — 32GB, 5600MHz, CL46, ECC Registered, 288-pin, 1.1V, designed for Intel Xeon and AMD Ryzen Threadripper PRO workstations and servers. The ADATA AD5R560032G20-SHYA is a professional-grade DDR5 32GB R-DIMM module built for heavy workstation and server workloads. With a 5600 MT/s data rate, CL46 latency, and 1.1V operating voltage, it delivers high bandwidth and better efficiency than previous DDR generations. As a registered ECC DIMM, it includes both on-die and side-band ECC
Specifications
| Spec | Detail |
|---|---|
| Type | Server RAM |
| Brand | ADATA |
| Speed | 5600 MT/s |
| Series | DDR5 R-DIMM |
| Weight | 250 g |
| Voltage | 1.1V |
| Capacity | 32GB (1 x 32GB) |
| EAN Code | 4711085949110 |
| Warranty | Limited Lifetime |
| CAS Latency | CL46 |
| ECC Support | On-die ECC and side-band ECC |
| Form Factor | 288-pin DIMM |
| Memory Type | DDR5 |
| Module Type | R-DIMM (Registered ECC) |
| Model Number | AD5R560032G20-SHYA |
| Compatibility | Intel Xeon W-2400/W-3400/W-2500/W-3500, AMD Ryzen Threadripper PRO 7000WX/7000 |
| Additional Features | Register/clock driver, temperature sensor, 30µ gold-plated contacts |
| Operating Temperature | 0°C to 85°C (typical) |
About this product
ADATA DDR5 R-DIMM — 32GB, 5600MHz, CL46, ECC Registered, 288-pin, 1.1V, designed for Intel Xeon and AMD Ryzen Threadripper PRO workstations and servers.
The ADATA AD5R560032G20-SHYA is a professional-grade DDR5 32GB R-DIMM module built for heavy workstation and server workloads. With a 5600 MT/s data rate, CL46 latency, and 1.1V operating voltage, it delivers high bandwidth and better efficiency than previous DDR generations. As a registered ECC DIMM, it includes both on-die and side-band ECC plus a register/clock driver for improved signal integrity, making it ideal for 3D rendering, video post-production, data science, virtualization, and AI workloads on supported Xeon and Threadripper PRO platforms.
32GB DDR5 R-DIMM module for workstations and servers
High speed 5600 MT/s for demanding professional applications
ECC Registered design (R-DIMM) with on-die and side-band ECC for maximum stability
Operates at just 1.1V for improved power efficiency versus DDR4
288-pin DIMM form factor with 30µ gold-plated contacts for durability
Supports Intel Xeon W-2400/W-3400/W-2500/W-3500 and AMD Ryzen Threadripper PRO 7000WX/7000 workstation platforms
Features temperature sensor for thermal monitoring in 24/7 environments
Ideal for content creation, CAD/CAM, simulation, and enterprise workloads
Spec
Detail
Brand
ADATA
Series
DDR5 R-DIMM
Model Number
AD5R560032G20-SHYA
Capacity
32GB (1 x 32GB)
Memory Type
DDR5
Module Type
R-DIMM (Registered ECC)
Speed
5600 MT/s
CAS Latency
CL46
Voltage
1.1V
ECC Support
On-die ECC and side-band ECC
Form Factor
288-pin DIMM
Operating Temperature
0°C to 85°C (typical)
Compatibility
Intel Xeon W-2400/W-3400/W-2500/W-3500, AMD Ryzen Threadripper PRO 7000WX/7000
Additional Features
Register/clock driver, temperature sensor, 30µ gold-plated contacts
