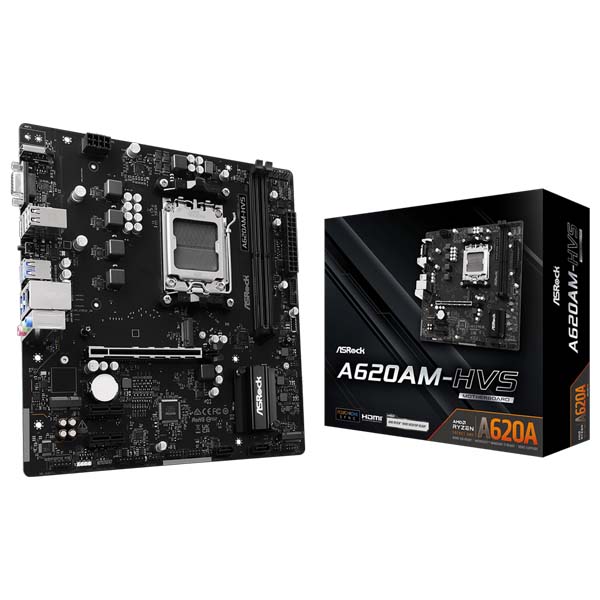

Asrock A620AM-HVS AM5 Micro ATX Motherboard
Brand: ASROCK
SKU: A620AM-HVS
Price: ₹7,549 (inclusive of GST · genuine product with warranty)
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors Dr.MOS Power Design, 2oz PCB 2 x DDR5 DIMMs Supports Dual Channel, up to 6800+ (OC)
Specifications
| color | Black |
|---|---|
| Socket | AM5 |
| Chipset | A620 |
| Warranty | 3 Years |
| Product Type | Normal |
| Motherboard Size | mATX |
About this product
Asrock A620AM-HVS AM5 Micro ATX Motherboard
Feature
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Dr.MOS Power Design, 2oz PCB
2 x DDR5 DIMMs
Supports Dual Channel, up to 6800+ (OC)
1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
Graphics Output Options: 1 HDMI, 1 D-Sub
Realtek ALC897 7.1 CH HD Audio Codec
1 Hyper M.2 (PCIe Gen4x4)
1 Ultra M.2 (PCIe Gen3x4 & SATA3)
2 SATA3
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 (4 Rear, 2 Front)
8 USB 2.0 (4 Rear, 4 Front)
Realtek Gigabit LAN
Supports BIOS Flashback
Built to deliver reliable performance with versatile features, perfect for daily tasks.
Dr. MOS
Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
High Speed M.2 Solution
Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Intelligent Cooling Design
PWM/DC Fan Support
ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
① CPU Fan Connector ② Chassis Fan Connector
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.
