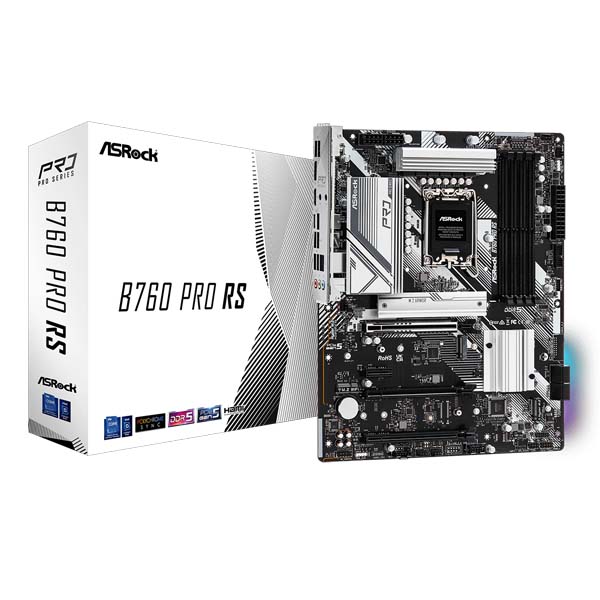

ASRock B760 Pro RS DDR5 ATX LGA1700 Motherboard

Brand: ASrock

SKU: B760-Pro-RS-D5

Price: ₹14,800 (inclusive of GST · genuine product with warranty)

Supports 14 th , 13 th  & 12 th  Gen Intel ®  Core™ Processors (LGA1700) 10+1+1 Power Phase, Dr.MOS for VCore+GT 4 x DDR5 DIMMsSupports Dual Channel, up to 7200+ (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16,

Specifications

About this product

ASRock B760 Pro RS DDR5 ATX LGA1700 Motherboard

Feature

Supports 14 th , 13 th  & 12 th  Gen Intel ®  Core™ Processors (LGA1700)

10+1+1 Power Phase, Dr.MOS for VCore+GT

4 x DDR5 DIMMsSupports Dual Channel, up to 7200+ (OC)

1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16,1 PCIe 3.0 x1, 1 M.2 Key E for WiFi

Graphics Output Options: HDMI, DisplayPort, eDP

Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio

4 SATA3, 2 Hyper M.2 (PCIe Gen4x4),1 M.2 (PCIe Gen4x2)

2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),1 USB 3.2 Gen2 Type-A (Rear),6 USB 3.2 Gen1 (4 Rear, 2 Front),4 USB 2.0 (2 Rear, 2 Front)

Dragon 2.5G LAN

Supports ASRock Auto Driver Installer

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.

RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!

Optimized VRM Design

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

10+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel ®  XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.

DDR5 Memory with Protection Circuit

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.
