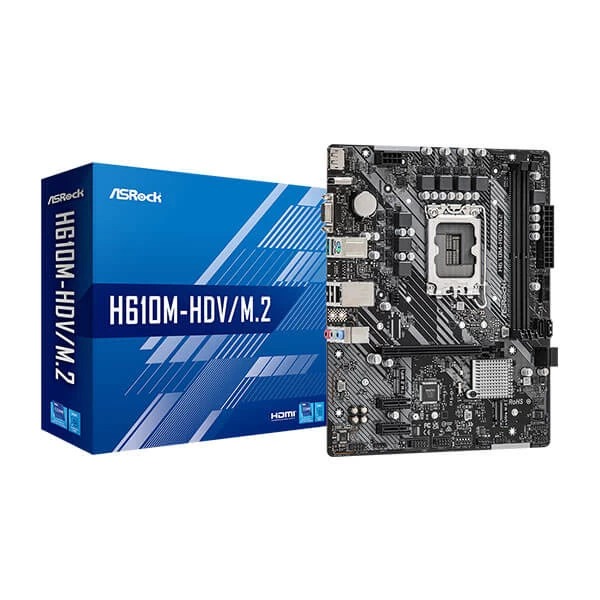

ASRock H610M-HDV/M.2 Intel Motherboard

Brand: Intel

SKU: H610M-HDV-M.2

Price: ₹5,985 (inclusive of GST · genuine product with warranty)

Supports 12th Gen Intel Core Processors (LGA1700) 6 Phase Power Design Supports DDR4 3200MHz 1 PCIe 4.0 x16, 2 PCIe 3.0 x1 1 M.2 Key-E for WiFi

Specifications

About this product

ASRock H610M-HDV/M.2 Motherboard

Supports 12th Gen Intel ®  Core™ Processors (LGA1700)

6 Phase Power Design

Supports DDR4 3200MHz

1 PCIe 4.0 x16, 2 PCIe 3.0 x1

1 M.2 Key-E for WiFi

Graphics Output Options: HDMI, DisplayPort, D-Sub

Realtek ALC887/897 7.1 CH HD Audio Codec

4 SATA3

1 Ultra M.2 (PCIe Gen3 x4 & SATA3)

4 USB 3.2 Gen1 (2 Rear, 2 Front)

5 USB 2.0 (2 Rear, 3 Front)

Intel ®  Gigabit LAN

Overview:

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

Intel ®  Gigabit LAN

Intel ®  LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

*Wi-Fi module is not included.

asrock 3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
