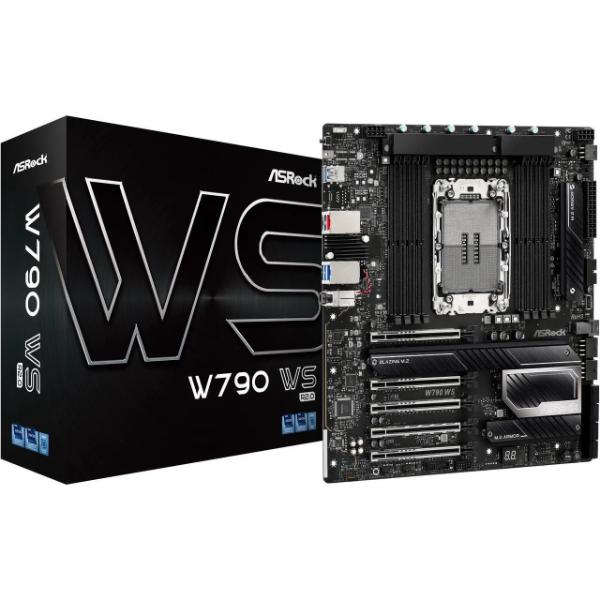

ASRock W790 WS R2.0 LGA 4677 Intel W790 E-ATX Motherboard
Brand: ASrock
SKU: W790 WS R2.0
Price: ₹72,499 (inclusive of GST · genuine product with warranty)
Supports 4th Gen Intel Xeon W-3400 and W-2400 Processors (LGA4677) 20+2 Power Phase, 90A SPS Design 14 Layer Server-Grade Ultra Low-Loss PCB 8 x DDR5 DIMMs Supports Quad Channel ECC Registered memory, up to 6800+ (OC) 4 PCIe 5.0 x16, 1 PCIe 4.0 x16 4 Blazing M.2 (PCIe Gen5 x4), 8 SATA3 1 U.2 mini SAS Connector (PCIe Gen4 x4) 1 USB 3.2 Gen2x2 Type-C (Front) 2 USB 3.2 Gen2 (Rear) 7 USB 3.2 Gen1 (3 Rear, 4 Front) 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Marvell AQUANTIA
Specifications
| color | Black |
|---|---|
| Socket | LGA 4677 |
| Chipset | W790 |
| Motherboard Size | E-ATX |
About this product
ASRock W790 WS R2.0 LGA 4677 Intel W790 E-ATX Motherboard
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
The server grade ultra low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
DDR5 ECC Memory Support
This workstation motherboard supports 8 DIMMs Quad-Channel DDR5 RDIMM ECC Memory overclocking with max capacity of 2048GB and is able to automatically detected and corrected data corruption, reducing the chance of system crashes to ensure workstation stability with multiple memory modules.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
4 x PCIe Gen5 x16
This workstation motherboard supports 4 PCIe Gen5 x16 slots, deliver all the performance of PCIe Gen5 to your GPU and add-on cards. Fulfill all the professional design, deep learning, simulation and rendering applications.
Reinforced Steel Slot[PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:✔ Extra anchor points✔ Stronger latch✔ Ensure signal stability✔ Make sure heavy graphics cards to be well-installed.
Various Storage Interface Selection
Provides multiple interface for storage devices including mini-SAS HDD connector, SATA3, and M.2 Key-M slot that can support PCIe Gen5 x4 M.2 SSD.
