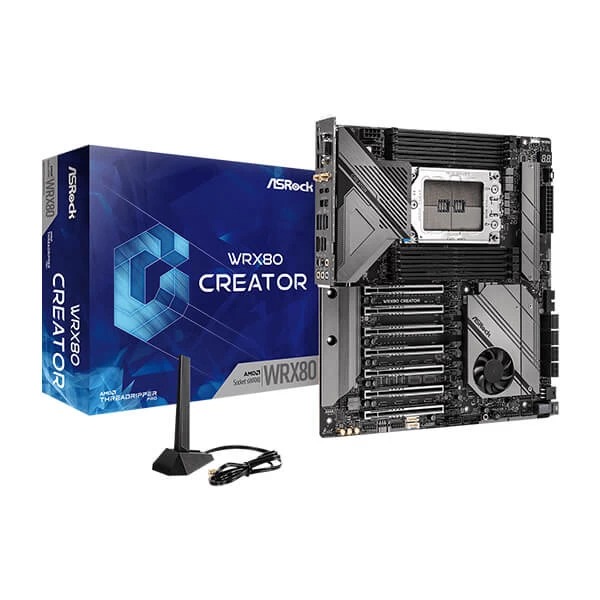

ASRock WRX80 Creator R2.0 WIFI Workstation Motherboard
Brand: ASrock
SKU: WRX80-CREATOR-R2-0
Price: ₹66,199 (inclusive of GST · genuine product with warranty)
Supports AMD Ryzen™ Threadripper™ PRO 3000WX/5000WX Series Processors 8 Power Phase Design, 105A SPS 14 Layer Server-Grade Low-Loss PCB Supports DDR4 4533+(OC) 7 PCIe 4.0 x16 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 U.2 (PCIe Gen3 x4) 2 Thunderbolt™ 4 Type-C, 5 USB 3.2 Gen2 (1 Front Type-C, 4 Rear), 6 USB 3.2 Gen1 (4 Front, 2 Rear)
Specifications
| color | Black |
|---|---|
| Socket | sWRX8 |
| Platform | AMD |
| RAM type | DDR4 |
| Warranty | 3 Years |
| Product Type | workstation |
| EAN / UPC Code | 7598484837929 |
| Motherboard Size | E-ATX |
About this product
ASRock WRX80 CREATOR R2.0 AMD Motherboard Ryzen Threadripper PRO 3000WX/5000WX Dual 10Gbe LAN IPMI Thunderbolt™ 4 Type-C
Feature
Supports AMD Ryzen™ Threadripper™ PRO 3000WX/5000WX Series Processors
8 Power Phase Design, 105A SPS
14 Layer Server-Grade Low-Loss PCB
Supports DDR4 4533+(OC)
7 PCIe 4.0 x16
8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4),1 Hyper M.2 (PCIe Gen4 x4 & SATA3),1 U.2 (PCIe Gen3 x4)
2 Thunderbolt™ 4 Type-C
5 USB 3.2 Gen2 (1 Front Type-C, 4 Rear),6 USB 3.2 Gen1 (4 Front, 2 Rear)
7.1 CH HD Audio (Realtek ALC4050H+ALC1220),Nahimic Audio
Dual 10Gb/s LAN, 1 Dedicated IPMI LAN
Intel ® 802.11ax (WiFi 6E) + Bluetooth
Optimized VRM Design
SPS (Smart Power Stage)
Asrock Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
7W/mK MOSFET Thermal Pads
This thermal pads are much more effective than normal pads. With a 7 watt/mK thermal conductivity it is able to effectively dissipate heat from MOSFET
14 Layer PCB
The 14 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
Optimized VRM Design
Composite VRM Heatsink
It is equipped with a composite VRM heatsink combining dual fans, aluminum fin array and heat pipe for maximum heat dissipation.
Server-Grade Low-Loss PCB
The server grade PCB prevents PCB bending and improves signal integrity, giving higher PCIe 4.0 and memory performance as well as system stability, giving a reliable and long-lasting system without any compromise.
