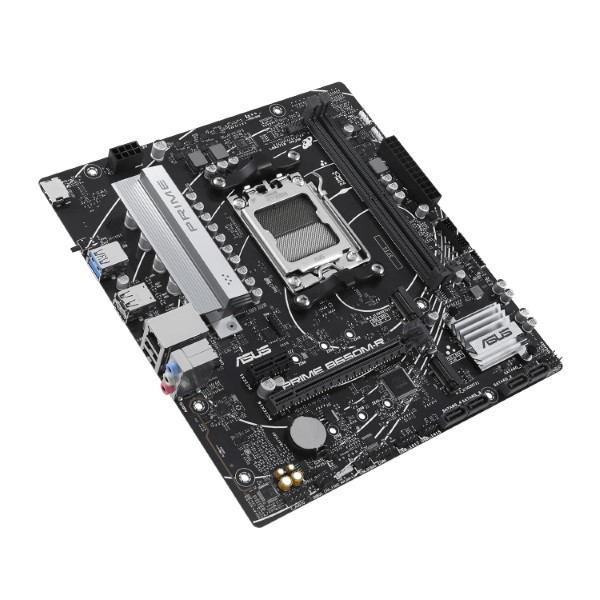

ASUS AMD B650 Prime B650M-R DDR5 mATX Motherboard
Brand: Asus
SKU: PRIME B650M-R
Price: ₹7,999 (inclusive of GST · genuine product with warranty)
AM5 Socket for AMD Ryzen Desktop Processors Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, USB 5Gbps ports, front USB 5Gbps Type-C® Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communic
Specifications
| RGB | Addressable Gen 2 header, Aura Sync |
|---|---|
| Audio | Realtek 7.1 HD codec, 24‑bit/192 kHz |
| Memory | 2 × DDR5 DIMM, up to 96 GB, EXPO, OptiMem II |
| Chipset | AMD B650 |
| Ethernet | Realtek 2.5 Gb LAN, ASUS LANGuard |
| Rear USB | 2 × USB 5 Gbps (Type‑A), 4 × USB 2.0 (Type‑A) |
| Front USB | 1 × USB 5 Gbps (Type‑C), header for 2 × USB 5 Gbps, headers for 4 × USB 2.0 |
| M.2 Slots | 2 × M.2 (2242/2260/2280) PCIe 4.0 ×4 |
| CPU Socket | AM5, for AMD Ryzen 7000/8000/9000 series |
| OS Support | Windows 11 and Windows 10 64‑bit |
| PCIe Slots | 1 × PCIe 4.0 ×16 (x16 or x8/x4), 1 × PCIe 4.0 ×1 |
| Protection | ASUS 5X Protection III (DIGI+ VRM, Overvoltage, Safeslot Core, stainless‑steel I/O) |
| SATA Ports | 4 × SATA 6 Gb/s |
| Form Factor | micro‑ATX (9.3 × 8.7 in / 23.6 × 22.1 cm) |
| RAID Support | AMD RAIDXpert2 (PCIe & SATA RAID 0/1/10) |
| BIOS Features | 256 Mb UEFI AMI BIOS, BIOS FlashBack |
| Memory Speeds | DDR5‑4800–7200+ (OC) |
| Graphics Output | 1 × HDMI 2.1 (up to 4K@60 Hz, CPU dependent) |
| Special Software | Armoury Crate, AI Suite 3, etc. |
About this product
ASUS AMD B650 Prime B650M-R m-ATX Motherboard , DDR5, PCIe 4.0 Support, Realtek 2.5Gb Ethernet, HDMI, SATA 6 Gbps, Front USB 5Gbps Type-C
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-R provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
ASUS AMD B650 Prime B650M-R DDR5 mATX Motherboard , DDR5, PCIe 4.0 support, Realtek 2.5Gb Ethernet, HDMI™, SATA 6 Gbps, front USB 5Gbps Type-C ® , BIOS FlashBack™, Two-Way AI Noise Cancelation, Aura Sync
DDR5 Performance Enhancement
ASUS AMD B650 Prime B650M-R DDR5 mATX Motherboard comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME B650M-R, you can extract all of the potential out of your DDR5 modules, whether they’re from an extreme-speed kit or an entry-level set that would otherwise be locked.For entry-level modules without EXPO™ memory support, we’ve got you covered. Click here to learn more about AEMP. .For those who want to fly past stock DDR5 speeds, the PRIME B650M-R is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
VRM Heatsink and Thermal Pad
ASUS AMD B650 Prime B650M-R DDR5 mATX Motherboard VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
Stack Cool 3+
ASUS AMD B650 Prime B650M-R DDR5 mATX Motherboard 2oz copper PCB design can draw heat away from critical components to keep the optimal operating temperatures.
Storage
PCIe 4.0 M.2 Support
PRIME B650M-R offers two M.2 slots that supports data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.
*Actual transmission speeds will be lower than the theoretical maximum speed.
