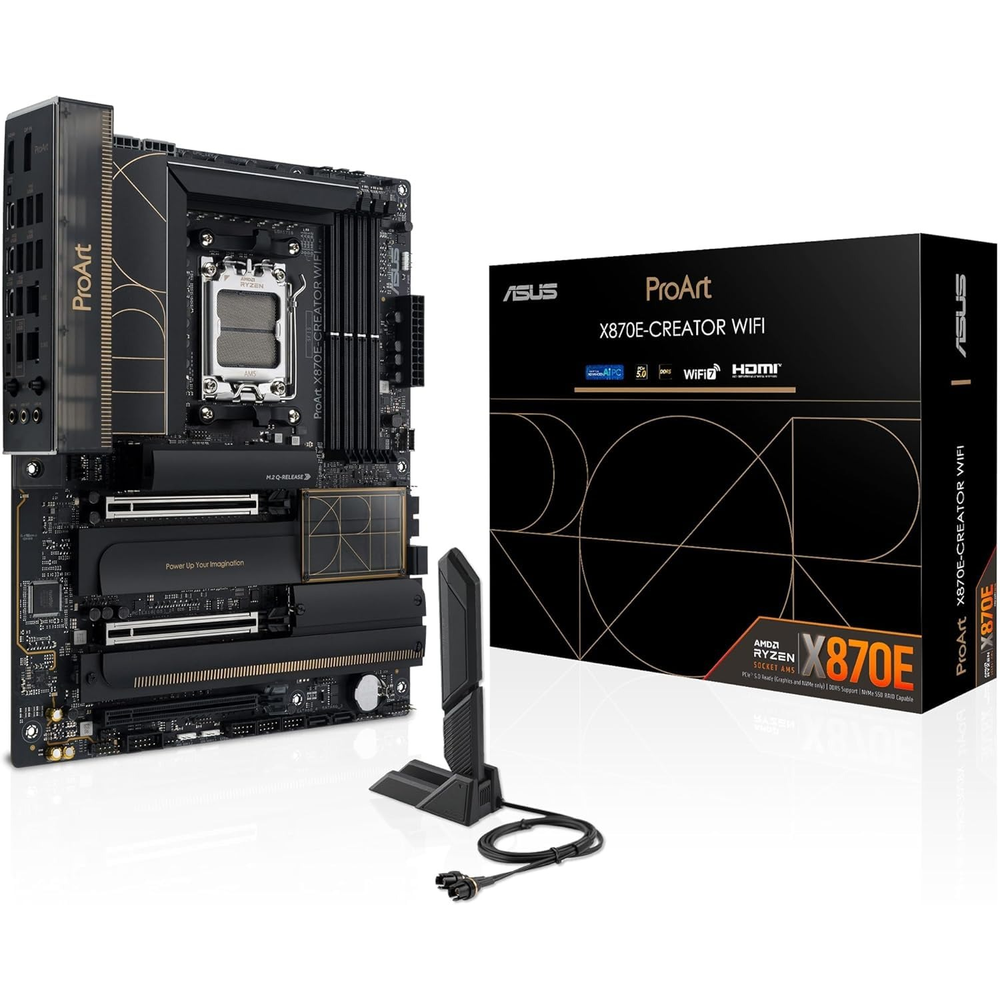

ASUS ProArt X870E-Creator WiFi
Brand: Asus
Price: ₹55,431 (inclusive of GST · genuine product with warranty)
High-end creator-focused ATX board for AMD Socket AM5 with PCIe 5.0, dual USB4, WiFi 7 and multi-10Gb Ethernet.
Specifications
| Socket | AM5 |
|---|---|
| Chipset | AMD X870E |
| Warranty | 3 Years Manufacturer Warranty |
| Wireless | WiFi 7 2×2 + Bluetooth v5.4 |
| M.2 slots | 4 (2 × PCIe 5.0 x4; 2 × PCIe 4.0 x4, one supports 22110 size) |
| CPU socket | AMD Socket AM5 |
| Dimensions | ≈ 30.5 × 24.4 cm |
| SATA ports | 4 × SATA 6 Gb/s |
| Audio codec | Realtek ALC1220P 7.1 surround |
| Form factor | ATX |
| Memory type | DDR5 unbuffered ECC & non-ECC |
| Memory slots | 4 DIMM |
| Power phases | 16 + 2 + 2 teamed stages, 80A each |
| Memory Series | DDR5 |
| Memory support | Supports AMD EXPO, ASUS Enhanced Memory Profile (AEMP) |
| Rear USB ports | 2 USB4 (40 Gbps Type-C), 1 USB-C 20 Gbps, 7 × USB Type-A 10 Gbps, 1 × USB 2.0 |
| I/O video output | HDMI 2.1 (4K@60Hz), plus DisplayPort 1.4 input via USB4 |
| Motherboard Size | ATX |
| Networking (LAN) | 1 × Marvell AQtion 10GbE, 1 × Intel 2.5GbE |
| Back panel buttons | BIOS FlashBack, Clear CMOS |
| ATX power connector | 24-pin main; 2 × 8-pin CPU |
| Max memory capacity | 256 GB |
| Internal fan headers | 1 CPU, 1 CPU optional, 1 AIO pump plus 5 chassis fans |
| PCIe expansion slots | 2 × PCIe 5.0 x16 (x16 or x8/x8), plus 1 × PCIe 4.0 x16 (wired x4) |
| Front-panel USB headers | 1 × USB-C 20 Gbps (30W PD/Quick Charge 4+), 1 × USB-A 5 Gbps header, 3 × USB 2.0 headers |
About this product
The ASUS ProArt X870E-Creator WiFi is an ATX motherboard designed to support AMD Ryzen 7000, 8000 and 9000 Series desktop processors on Socket AM5, making it future-proof for upcoming CPU generations. It delivers robust power delivery via a 16+2+2 power stage design with 80A MOSFETs and high quality thermal management—ideal for overclocking and sustained workloads.\nMemory support includes 4 DDR5 DIMMs (ECC and non-ECC unbuffered), with capacities up to 256 GB, and overclocking profiles via AMD EXPO and ASUS’s AEMP system.\nConnectivity is rich: dual USB4 Type-C that support DisplayPort input, one USB-C 20 Gbps port, multiple high-speed Type-A USB ports, dual Ethernet (10 Gb + 2.5 Gb), WiFi 7 and its included antenna. Four M.2 slots (two PCIe 5.0, two PCIe 4.0), and three full-length PCIe slots give flexibility for storage and GPUs.\nIn terms of build and design features, it offers creator-oriented enhancements such as Q-Release Slim PCIe slot latch, tool-less M.2 latch/slide mechanisms, addressable RGB headers, and a minimal but premium aesthetic with tone-on-tone black and touches of gold.
