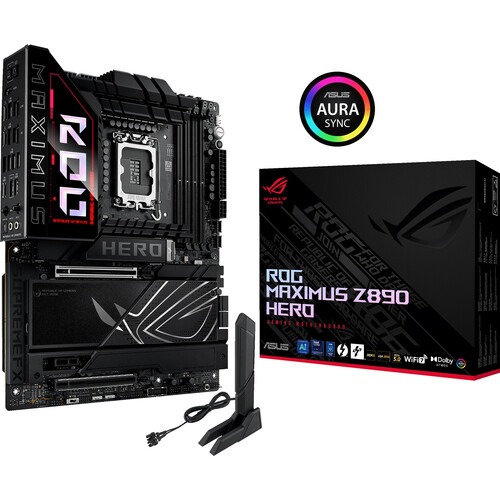

ASUS ROG MAXIMUS Z890 HERO Intel Z890 Chipset Motherboard

Brand: Asus

SKU: ROG MAXIMUS Z890 HERO

Price: ₹64,499 (inclusive of GST · genuine product with warranty)

ATX Form Factor Intel Z890 Chipset LGA 1851 Socket 4 x Dual-Channel DDR5 Slots 4 x SATA III | 6 x M.2

Specifications

About this product

ASUS ROG Maximus Z890 Hero Intel® Z890 LGA 1851 ATX Motherboard, Advanced AI PC-Ready, 22+2+1+2 Stages, DDR5, WiFi 7, 3X PCIe® 5.0 M.2, Thunderbolt™ 4, USB Type-C®, AI Overclocking/Cooling/Networking

Feature

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications

Intel LGA 1851 Socket: Ready for Intel Core Ultra Processors (series 2)

Exclusive AI Technologies: ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, and AI Networking II to simplify setup and improve performance

Exclusive Overclocking & Memory Technologies: NitroPath DRAM Technology, NPU Boost, DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance

Robust Power Solution: 22(110A)+2(90A)+1(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors

Optimized Thermal Design: Massive heatsinks integrated with the I/O cover, joined by a U-shaped heatpipe and connected to the power stages with high-conductivity thermal pads

Latest M.2 Support: Three onboard PCIe 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 Power Boosts, all with substantial cooling solutions

Abundant Connectivity: Dual Thunderbolt 4 USB Type-C ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, USB 10Gbps Type-C front-panel connector, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI 2.1

High-Performance Networking: On-board Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Intel 2.5Gb Ethernet and Realtek 5Gb Ethernet

DIY Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield

Install up to three M.2 PCIe 5.0 SSDs alongside three PCIe 4.0 drives to store your games library, applications, and multimedia files. Four SATA III connectors area also available. The four DDR5 DIMM slots support up to 192GB. With one PCIe 5.0 x16 slot, a PCIe 4.0 x16 (x4 mode) slot, and PCIe 4.0 x1 slot, you can install powerful graphics cards and other compatible expansions.

ASUS ROG MAXIMUS Z890 HERO rear panel features two Thunderbolt 4 ports that can transfer up to 40 Gb/s with compatible devices or connect a USB-C compatible 8K displays. There is also one 10 Gb/s USB-C and four USB-A ports and four USB-A 3.2 Gen 1 ports that work with 5 Gb/s compatible devices. Internal headers allow you to connect front panel 20 Gb/s and 10 Gb/s USB-C ports. Built-in Wi-Fi 7 (802.11be) support and a 5 Gb/s Ethernet port provide you with connections to compatible network devices for smooth video streaming and low-latency online games. Windows 11 is required to take advantage of all this motherboard’s features.

Performance

AI Equipped

Leveraging Artificial Intelligence, the ASUS ROG MAXIMUS Z890 HERO can boost performance with automatic AI overclocking and cooling, enhancing your games and productivity without compromising thermal capabilities. You can ask the ASUS AI Adviser questions about optimizing your system’s performance and finding out more about its features.

Easy Overclocking

ASUS ROG MAXIMUS Z890 HERO differential-sensing circuit and delicate IC simplify overclocking and tuning by allowing you to accurately track voltages.

Enhanced Power Solution

Equipped with 22(110A)+1(90A)+2(90A)+2(80A) power stages with ProCool II connectors, MicroFine alloy chokes, and durable capacitors, this motherboard delivers stable power throughout the entire motherboard, maintaining electrical volume whether you are performing simple tasks or operating at full power during resource-demanding processes.

M.2 PowerBoost

ROG M.2 PowerBoost technology helps ensure that every onboard M.2 device operates simultaneously at optimal performance.

DIMM Fit

ASUS ROG MAXIMUS Z890 HERO ASUS-exclusive BIOS feature analyzes individual memory modules to optimize performance and pinpoint potential issues.

DIMM Flex

ASUS ROG MAXIMUS Z890 HERO DIMM Flex employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings.

AEMP III

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.

Comprehensive Cooling

ASUS ROG MAXIMUS Z890 HERO VRM heat sink works with highly conductive thermal pads and a chipset heat sink to efficiently dissipate heat. M.2 heat sinks and dedicated backplates help to ensure optimal SSD performance during sustained workloads.

Gaming Audio

SupremeFX 7.1 Surround Sound

ROG SupremeFX audio technology delivers pristine audio with a 110 dB signal-to-noise ratio on the line-in jack. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec and an integrated ESS ES9219 Quad DAC capable of reaching -114dB THD+N on the front-panel output. ASUS ROG MAXIMUS Z890 HERO combined system allows for end-to-end 32-bit, 384 kHz resolution playback that conveys the dynamics of each audio track.

Dolby Atmos

With the addition of height channels, Dolby Atmos surround sound creates an immersive audio experiences by providing the sensation of sound coming from above, below, and around the listener.

DIY Friendly

Easy M.2 Installation

ASUS M.2 Q-Release, Q-Slide and Q-Latch technologies allow you to quickly install or remove M.2 SSDs without the need for tools or screws.

PCIe Slot Q-Release Slim
