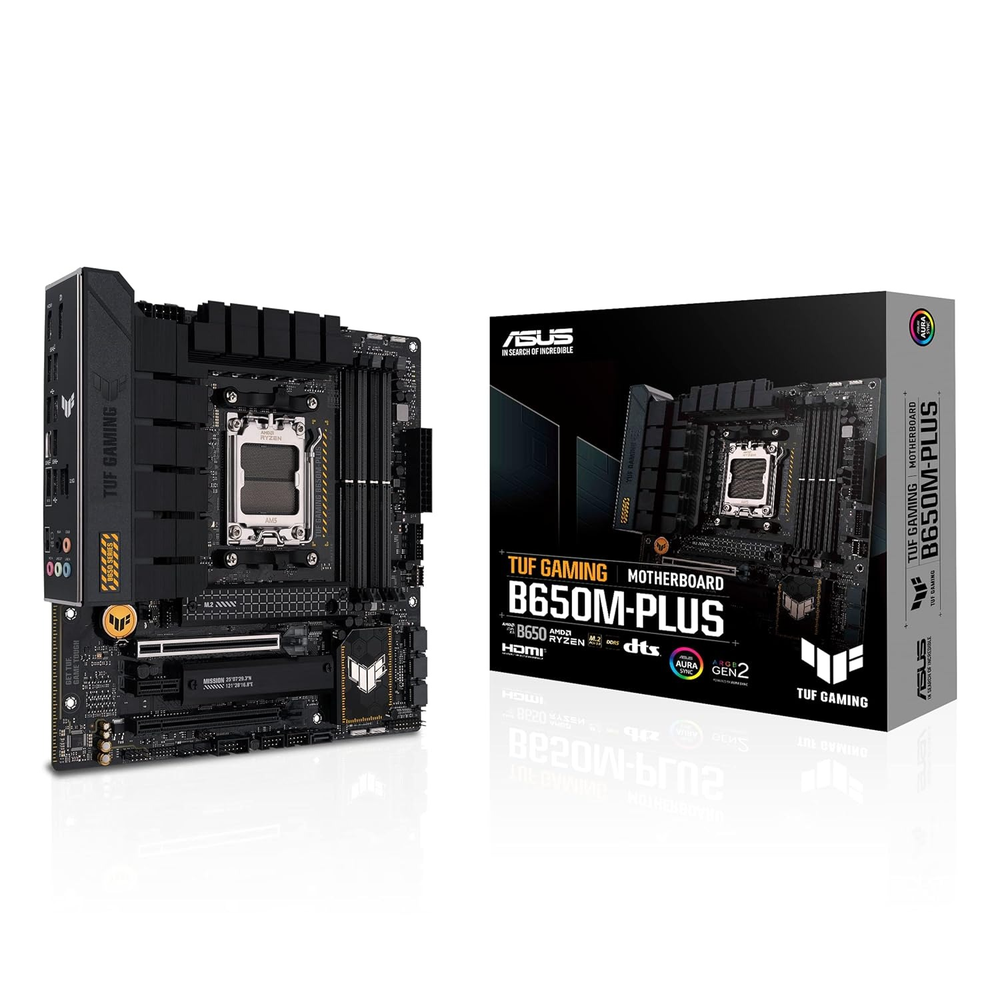

ASUS TUF GAMING B650M-PLUS mATX Motherboard
Brand: Asus
Price: ₹19,999 (inclusive of GST · genuine product with warranty)
ASUS TUF GAMING B650M-PLUS is a micro-ATX AMD B650 gaming motherboard for Ryzen 7000, 8000 and 9000 Series desktop processors on the AM5 socket. It combines a 6-layer PCB, reinforced power design, DDR5 memory support, PCIe 5.0 M.2 storage and Realtek 2.5Gb Ethernet, plus optional Wi‑Fi 6 on the WIFI version, in a compact and ultra‑durable TUF design. Key Features: >AMD B650 micro-ATX motherboard with AM5 socket for Ryzen 9000 / 8000 / 7000 Series processors. >6-layer PCB design and robust
Specifications
| Type | Motherboard |
|---|
About this product
ASUS TUF GAMING B650M-PLUS is a micro-ATX AMD B650 gaming motherboard for Ryzen 7000, 8000 and 9000 Series desktop processors on the AM5 socket. It combines a 6-layer PCB, reinforced power design, DDR5 memory support, PCIe 5.0 M.2 storage and Realtek 2.5Gb Ethernet, plus optional Wi‑Fi 6 on the WIFI version, in a compact and ultra‑durable TUF design.
Key Features:
>AMD B650 micro-ATX motherboard with AM5 socket for Ryzen 9000 / 8000 / 7000 Series processors.
>6-layer PCB design and robust power stages for stable long-session gaming.
>4 x DDR5 DIMM slots with dual-channel support and high-speed EXPO overclocking.
>PCIe 5.0 x4 M.2 slot for next-gen NVMe SSDs plus an additional PCIe 4.0 M.2 and 4 x SATA 6Gb/s ports.
>Realtek 2.5Gb Ethernet for fast wired networking; WIFI model adds Wi‑Fi 6 and Bluetooth.
>HDMI and DisplayPort outputs for Ryzen APUs with integrated graphics (on supported CPUs).
>Multiple fan and AIO pump headers, VRM and chipset heatsinks, and M.2 heatsinks for strong cooling.
>TUF components and military‑grade certification for enhanced durability and reliability.
>Aura Sync RGB headers to sync lighting with ASUS TUF cases, coolers and peripherals.
Specifications:
Chipset
AMD B650
CPU Support
AMD Socket AM5 for Ryzen 9000, 8000 and 7000 Series desktop processors (see ASUS CPU support list).
Form Factor
Micro-ATX
Memory
4 x DDR5 DIMM slots, dual-channel, up to 128–192GB total (depending on module size), high-speed EXPO OC support.
Expansion Slots
1 x PCIe 4.0 x16 slot (CPU, up to x16 mode)
1 x PCIe 4.0 x16 slot (chipset, up to x4 mode)
1 x PCIe 4.0 x1 slot
Storage
Total: 2 x M.2 slots and 4 x SATA 6Gb/s ports
M.2_1: PCIe 5.0 x4 (NVMe)
M.2_2: PCIe 4.0 x4 (NVMe)
4 x SATA 6Gb/s ports with RAID 0/1/10 support
Graphics Output
1 x HDMI port
1 x DisplayPort (with supported Ryzen APUs)
Networking
Realtek 2.5Gb Ethernet (RJ‑45) with TUF LANGuard
WIFI model: Wi‑Fi 6 (802.11ax) and Bluetooth (e.g. v5.2)
Rear USB Ports
Mix of USB 10Gbps (USB 3.2 Gen 2), USB 5Gbps (Gen 1) and USB 2.0 Type‑A (exact count varies by revision and region).
Internal USB Headers
Front USB 5Gbps Type‑C header, USB 5Gbps and USB 2.0 headers for case I/O.
Audio
