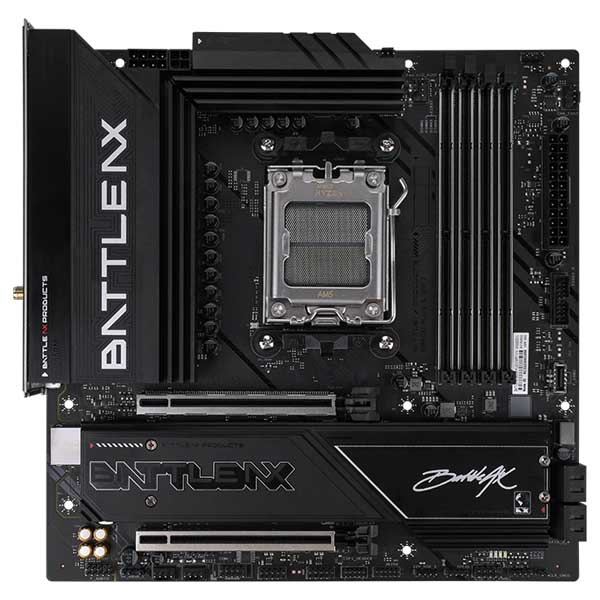

Colorful BATTLE-AX B850M-PLUS S WIFI7 V14 Motherboard
Brand: Colorful
SKU: BATTLE-AX B850M-PLUS S WIFI7 V14
Price: ₹14,699 (inclusive of GST · genuine product with warranty)
Adopts a 10+2+1 phase enhanced power design with F.C.C ferrite chokes (Dr MOS 55A). Provides one PCIe 5.0 x4 M.2 SSD and one PCIe 4.0 x4 M.2 SSD slot. Provides one USB 3.2 Gen 1 5Gbps Type-C and one USB 3.2 Gen 2 10Gbps Type-A high-speed rear port. Equipped with a Realtek 5G high-speed wired network card and WiFi 7 wireless network card, and supports Bluetooth 5.4. Supports iGame Center lighting control software for simultaneous adjustment of radiator, fan, and memory lighting. The I/O
Specifications
| Socket | AM5 |
|---|---|
| Chipset | AMD B850 |
| M.2 Slots | 2 |
| Memory Slots | 4 |
| Memory Series | DDR5 |
| Motherboard Size | Micro‑ATX |
About this product
Colorful BATTLE-AX B850M-PLUS S WIFI7 V14 Motherboard
Colorful BATTLE-AX series features custom frost cooling armor with a full-cover condenser for enhanced heat dissipation.
Adopts a 10+2+1 phase enhanced power design with F.C.C ferrite chokes (Dr MOS 55A).
Provides one PCIe 5.0 x4 M.2 SSD and one PCIe 4.0 x4 M.2 SSD slot.
Provides one USB 3.2 Gen 1 5Gbps Type-C and one USB 3.2 Gen 2 10Gbps Type-A high-speed rear port.
Equipped with a Realtek 5G high-speed wired network card and WiFi 7 wireless network card, and supports Bluetooth 5.4.
Supports iGame Center lighting control software for simultaneous adjustment of radiator, fan, and memory lighting.
The I/O backplane supports one-click BIOS upgrades.
Key Features
Model
BATTLE-AX B850M-PLUS S WIFI7 V14
Product Series
BATTLE-AX series
Chipset
AMD B850
Processor
Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard
Memory
4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory)
– Support DDR5-8000 (OC)/7800 (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400(OC)/5200 (OC)/5000MHz memory
– Support Extreme Memory Profile (XMP) memory technology
– Support EXtended Profiles for Overclocking (EXPO) memory technology
– Supports dual channel memory technology
SATA Ports
2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces in total, supports creating RAID 0, RAID 1, RAID 10 disk arrays with SATA or M.2 NVMe hard disk devices
-M.2_1 slot: supports 2242/2280 specification M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)
-M.2_2 slot: supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel)
(*Whether PCIe 5.0 is supported depends on the CPU of the motherboard)
Board I/O
Rear I/O :
-4×USB 2.0 interfaces
-2×USB 3.2 Gen 1 5Gbps Type-A interfaces
-1×USB 3.2 Gen 2 10Gbps Type-A interface
-1×USB 3.2 Gen 1 5Gbps Type-C interface
-1×DP 1.2 interface, supporting up to 4K 60Hz resolution
-1×HDMI 1.4 interface, supporting up to 4K 30Hz resolution
-1×5G network interface
-2×Wi-Fi 7 antenna interfaces
-1× BIOS update button
-3×Audio interfaces (audio input/audio output/microphone)
