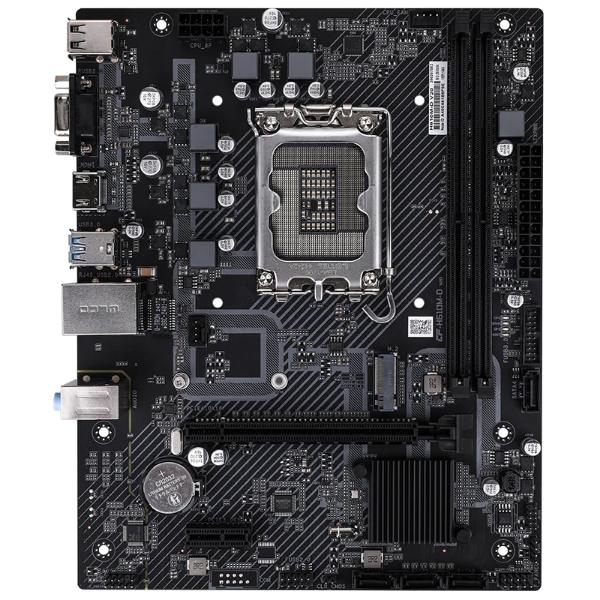

Colorful H610M-D V20 Intel mATX Motherboard
Brand: Colorful
SKU: COL-H610-D-V20
Price: ₹4,999 (inclusive of GST · genuine product with warranty)
Supports dual-channel DDR4-3200MHz memory Provides 1 PCIe 3.0 x4 M.2 SSD slot Equipped with HDMI+VGA display interface Equipped with Realtek 8111H Gigabit wired network card Equipped with Realtek ALC897 sound card chip, supporting up to 5.1 channels
Specifications
| Socket | LGA 1700 |
|---|---|
| Chipset | H610 |
| RAM type | DDR4 |
| Warranty | 3 Years |
| Motherboard Size | mATX |
About this product
Colorful H610M-D V20 Intel mATX Motherboard
Feature Highlights:
Intel H610 chipset
Supports dual-channel DDR4-3200MHz memory
Provides 1 PCIe 3.0 x4 M.2 SSD slot
Equipped with HDMI+VGA display interface
Equipped with Realtek 8111H Gigabit wired network card
Equipped with Realtek ALC897 sound card chip, supporting up to 5.1 channels
Rear: 2 USB 3.2 Gen 1 Type-A interfaces, 4 USB 2.0 interfaces
Front: Expandable 2 USB 3.2 Gen 1 Type-A interfaces, 2 USB 2.0 interfaces
Specification
Model
H610M-D V20
Product Series
Colorful series
Chipset
Intel H610
Processor
Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor
Memory
2 DDR4 memory slots, supporting up to 64 GB memory (single slot supports up to 32 GB)
– Supports DDR4-3200/2933/2666/2400/2133MHz memory
– Supports dual-channel memory technology
SATA Ports
1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces
-M.2 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel)
Board I/O
Rear I/O :
-4×USB 2.0 interfaces
-2×USB 3.2 Gen 1 Type-A interfaces
-1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution
-1×VGA interface
-1×Gigabit network interface
-3×Audio interfaces (audio input/audio output/microphone)
On board:
-1×CPU fan pin
-1×System fan pin
-1×USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces
-1×Front audio pin
