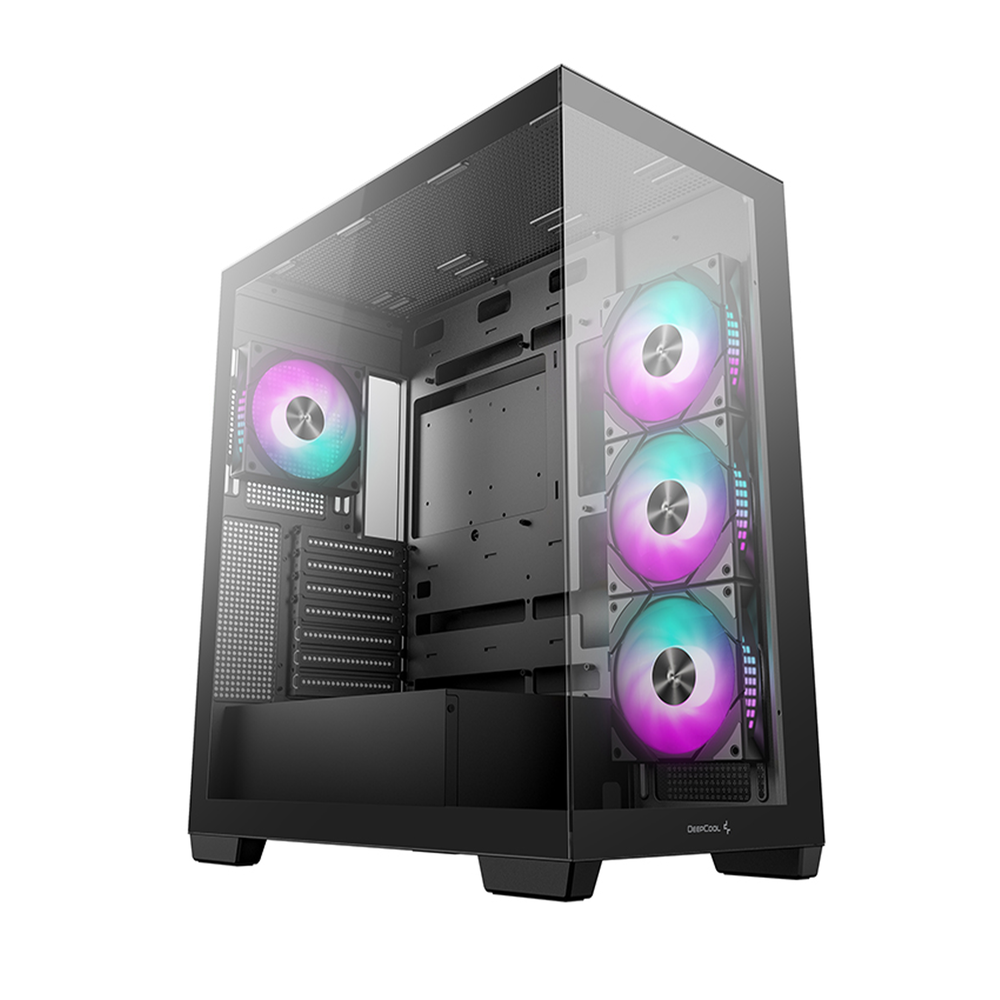

DEEPCOOL CG580 4F Black Panoramic ATX Case
Brand: Deepcool
SKU: DEEPCOOL-CG580-4F-BLACK
Price: ₹10,999 (inclusive of GST · genuine product with warranty)
The DeepCool CG580 4F Black is a panoramic single‑chamber ATX case designed to showcase your core components with a clean “fish‑tank” style layout and 270° glass view. With three reverse‑blade ARGB fans on the side and one standard ARGB fan at the rear, it delivers strong directed airflow across the GPU and CPU while creating a striking lighting wall inside the case. The front is kept solid/clean for aesthetics, while the side, top, and rear handle cooling, giving you both visual impact and
Specifications
| Top | 120 / 140 / 240 / 280 / 360 mm |
|---|---|
| Rear | 120 / 140 mm |
| Side | 120 / 240 / 360 mm |
| Size | 210mm |
| Type | Gaming Cabinet / PC Case |
| Model | DeepCool CG580 4F Panoramic ATX Case (Black) |
| Bottom | 1 × 120 mm (shared with 3.5" HDD position) |
| Warranty | Typically 1 year limited warranty (match your store policy) |
| Materials | ABS, SGCC/SPCC steel, tempered glass |
| Dimensions | 437 × 235 × 501 mm (L × W × H) |
| Net Weight | Approx. 8.7 kg (some listings show ~7.9 kg; use what matches your stock spec sheet) |
| PSU Shroud | 2 × 120 mm |
| Fan Support | Front: N/A |
| Form Factor | ATX mid tower, single‑chamber panoramic design |
| PSU Support | ATX PS2, up to 210 mm, bottom‑mounted |
| Dust Filters | Top and bottom dust filters |
| Color Options | Black (this listing); white variant sold separately |
| Drive Support | 2 × 3.5" HDD + 2 × 2.5" SSD |
| Expansion Slots | 7 |
| Side/Front Panels | Panoramic tempered glass (side + front area, no A‑pillar) |
| Motherboard Support | ITX, Micro‑ATX, ATX, ATX (rear connector), Micro‑ATX (rear connector) |
| CPU Cooler Clearance | Up to 176 mm |
| Radiator / Aio Support | Front: N/A |
About this product
The DeepCool CG580 4F Black is a panoramic single‑chamber ATX case designed to showcase your core components with a clean “fish‑tank” style layout and 270° glass view. With three reverse‑blade ARGB fans on the side and one standard ARGB fan at the rear, it delivers strong directed airflow across the GPU and CPU while creating a striking lighting wall inside the case. The front is kept solid/clean for aesthetics, while the side, top, and rear handle cooling, giving you both visual impact and airflow in a balanced way.
Supporting ITX, Micro‑ATX, and ATX (including rear‑connector boards), the CG580 4F fits GPUs up to 410 mm, CPU coolers up to 176 mm, and PSUs up to 210 mm, covering everything from mid‑range to high‑end gaming builds. It provides 2 × 3.5" and 2 × 2.5" drive bays plus 7 expansion slots, enough for multi‑drive setups and larger GPUs without crowding. With support for 360 mm radiators on the top and side, plus multiple fan locations including PSU shroud fans, it is ready for advanced air or liquid‑cooling configurations.
Key Specifications
Model: DeepCool CG580 4F Panoramic ATX Case (Black)
Form factor: ATX mid tower, single‑chamber panoramic design
Motherboard support: ITX, Micro‑ATX, ATX, ATX (rear connector), Micro‑ATX (rear connector)
GPU clearance: Up to 410 mm (limited to around 262 mm if a 360 mm side radiator + fans are installed)
CPU cooler clearance: Up to 176 mm
PSU support: ATX PS2, up to 210 mm, bottom‑mounted
Pre‑installed fans: 4 × 120 mm PWM ARGB (3 × side reverse‑blade, 1 × rear standard)
Fan support: Front: N/A; Top: 3 × 120 mm or 2 × 140 mm; Side: 3 × 120 mm; Rear: 1 × 120 / 1 × 140 mm; Bottom: 1 × 120 mm (shared with 3.5" HDD position); PSU shroud: 2 × 120 mm
Radiator / AIO support: Front: N/A; Top: 120 / 140 / 240 / 280 / 360 mm; Side: 120 / 240 / 360 mm; Rear: 120 / 140 mm
Drive support: 2 × 3.5" HDD + 2 × 2.5" SSD
Expansion slots: 7
Front I/O: 2 × USB 3.0, 1 × USB Type‑C (Gen2), 1 × combo audio & mic, power + RGB control buttons
Dimensions: 437 × 235 × 501 mm (L × W × H)
Net weight: Approx. 8.7 kg (some listings show ~7.9 kg; use what matches your stock spec sheet)
Materials: ABS, SGCC/SPCC steel, tempered glass
Side/front panels: Panoramic tempered glass (side + front area, no A‑pillar)
Dust filters: Top and bottom dust filters
Color options: Black (this listing); white variant sold separately
