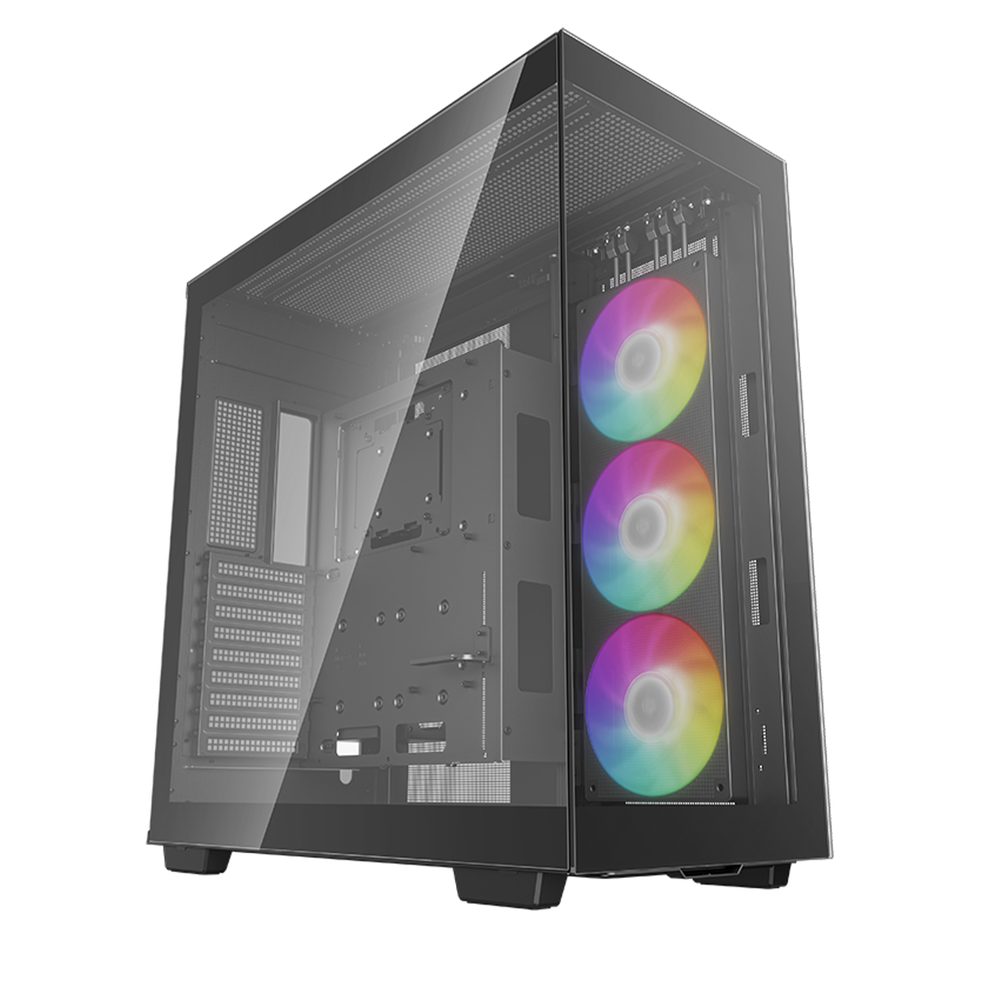

DEEPCOOL CH780 Black Panoramic E‑ATX Full Tower Case
Brand: Deepcool
SKU: DEEPCOOL-CH780-BLACK
Price: ₹20,000 (inclusive of GST · genuine product with warranty)
The DeepCool CH780 Black is a premium panoramic case built for high‑end café, esports, and studio rigs that need E‑ATX support, vertical GPU, and extreme cooling options in a dual‑chamber layout. With support for up to three 420 mm radiators, four 200 mm or nine 140 mm fans, and GPUs up to 480 mm, it’s designed for flagship builds that run heavy loads all day without airflow compromises. The dual‑chamber design hides PSU and cables in the rear, so front‑facing café systems look clean even wh
Specifications
| Top | 120 / 140 / 240 / 280 / 360 / 420 mm |
|---|---|
| Side | 120 / 140 / 240 / 280 / 360 / 420 mm |
| Size | 132mm |
| Type | Gaming Cabinet / PC Case |
| Model | DeepCool CH780 Black (P/N R‑CH780‑BKADE41‑G‑1) |
| Panels | Panoramic tempered glass on front and side, steel/mesh in the rear chamber for PSU airflow |
| Warranty | Typically 1 year from most retailers (match your store policy) |
| Front I/O | 4 × USB 3.0 Type‑A, 1 × USB Type‑C, 1 × audio jack, power button |
| Materials | ABS, SPCC steel, tempered glass |
| Net Weight | 13.7 kg |
| Form Factor | E‑ATX full tower, panoramic tempered‑glass, dual‑chamber layout |
| PSU Support | ATX PS2, maximum length 180 mm, mounted in rear chamber |
| Color Options | Black (this listing); white CH780 WH sold separately |
| Drive Support | 2 × 3.5" HDD + 2 + 1 × 2.5" SSD (2 dedicated + 1 shared) |
| GPU Length Limit | Up to 480 mm (vertical mount via included PCIe 4.0 riser) |
| Product Dimensions | 528 × 250 × 551 mm (L × W × H) |
| Motherboard Support | Mini‑ITX, Micro‑ATX, ATX, E‑ATX |
| Side (Main Chamber) | 3 × 120 mm / 3 × 140 mm |
| Included Accessories | PCIe 4.0 riser cable and vertical GPU mount bracket |
About this product
The DeepCool CH780 Black is a premium panoramic case built for high‑end café, esports, and studio rigs that need E‑ATX support, vertical GPU, and extreme cooling options in a dual‑chamber layout. With support for up to three 420 mm radiators, four 200 mm or nine 140 mm fans, and GPUs up to 480 mm, it’s designed for flagship builds that run heavy loads all day without airflow compromises. The dual‑chamber design hides PSU and cables in the rear, so front‑facing café systems look clean even when staff are swapping parts and routing wires under pressure.
Key Specifications
Model: DeepCool CH780 Black (P/N R‑CH780‑BKADE41‑G‑1)
Form factor: E‑ATX full tower, panoramic tempered‑glass, dual‑chamber layout
Motherboard support: Mini‑ITX, Micro‑ATX, ATX, E‑ATX
GPU length limit: Up to 480 mm (vertical mount via included PCIe 4.0 riser)
CPU cooler height limit: Up to 132–168 mm depending on fan/radiator layout (DeepCool spec lists 132 mm hard limit with internal rad setups – build accordingly)
PSU support: ATX PS2, maximum length 180 mm, mounted in rear chamber
Pre‑installed fans: 1 × 420 mm ARGB fan wall (effectively triple‑140 mm ARGB unit on side)
Fan support:
Top: 3 × 120 mm / 3 × 140 mm / 2 × 180 mm / 2 × 200 mm
Side (main chamber): 3 × 120 mm / 3 × 140 mm
Bottom: 3 × 120 mm / 3 × 140 mm / 2 × 180 mm / 2 × 200 mm
Radiator support:
Top: 120 / 140 / 240 / 280 / 360 / 420 mm
Side: 120 / 140 / 240 / 280 / 360 / 420 mm
Bottom: 120 / 140 / 240 / 280 / 360 / 420 mm (supports up to three 420 mm rads simultaneously in extreme loops)
Drive support: 2 × 3.5" HDD + 2 + 1 × 2.5" SSD (2 dedicated + 1 shared)
