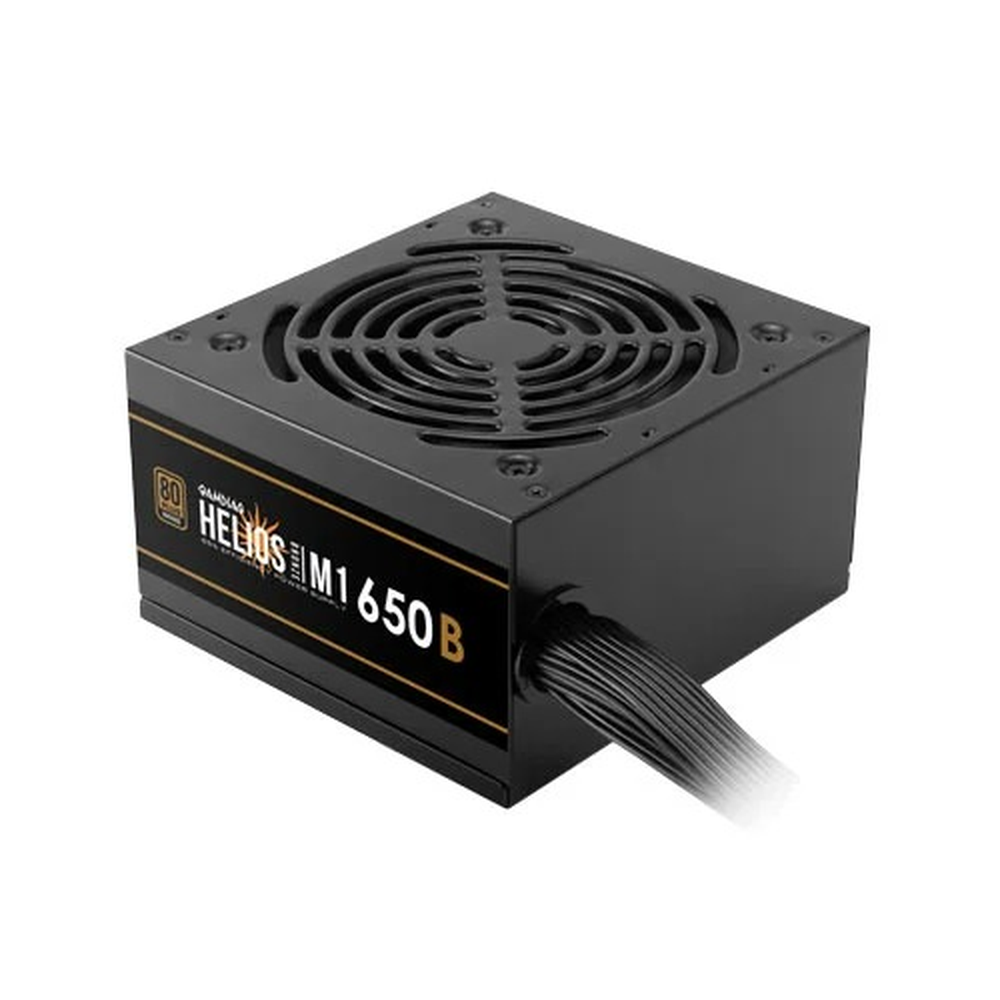

GAMDIAS HELIOS M1-650B 650W 80+ Bronze Non-Modular ATX Power Supply (120mm Hydraulic Fan, Dual PCIe, Flat Cables)
Brand: Gamdias
Price: ₹9,999 (inclusive of GST · genuine product with warranty)
The GAMDIAS HELIOS M1-650B is an 80 PLUS Bronze certified 650 W non-modular ATX power supply built for reliable, efficient power delivery in mid to upper mid-range gaming and productivity PCs. It delivers up to 85% efficiency, uses an active PFC design with PF up to 0.99 and features a 120 mm hydraulic-bearing smart fan that automatically adjusts speed based on temperature and load. With flat black cables, support for Intel C6/C7 power states, dual 6+2-pin PCIe connectors and multiple protection
Specifications
| Size | 120mm |
|---|---|
| Type | Power Supply |
| Modular | Non modular |
| Wattage | 650W |
| 80 PLUS Rating | Bronze |
| Active Pfc With Pf Up To 0.99 | APFC design improves input efficiency and voltage stability, supporting a wide 100–240 V AC range |
About this product
The GAMDIAS HELIOS M1-650B is an 80 PLUS Bronze certified 650 W non-modular ATX power supply built for reliable, efficient power delivery in mid to upper mid-range gaming and productivity PCs. It delivers up to 85% efficiency, uses an active PFC design with PF up to 0.99 and features a 120 mm hydraulic-bearing smart fan that automatically adjusts speed based on temperature and load. With flat black cables, support for Intel C6/C7 power states, dual 6+2-pin PCIe connectors and multiple protections (OVP, UVP, OPP, OCP, SCP), the HELIOS M1-650B offers a stable and quiet foundation for modern single-GPU systems.
80 PLUS Bronze efficiency (up to 85%): Certified to meet 80 PLUS Bronze standards, reducing wasted power and heat while delivering stable 650 W output.
120 mm hydraulic-bearing smart fan: Automatic fan speed optimization adjusts RPM according to temperature and load, keeping noise low at idle and boosting cooling when gaming or rendering.
Active PFC with PF up to 0.99: APFC design improves input efficiency and voltage stability, supporting a wide 100–240 V AC range.
Dual PCIe and ample connectors: Includes 1 × 20+4-pin ATX, 1 × 4+4-pin EPS CPU, 2 × 6+2-pin PCIe, 5 × SATA and 3 × Molex connectors, covering typical mid-range gaming builds with multiple drives.
Flat black non-modular cables: Flat black cables simplify routing and improve airflow inside the case while keeping overall cost lower than modular designs.
Specification
Detail
Brand
GAMDIAS
Model
HELIOS M1-650B
Form Factor
ATX12V v2.4
Total Power
650 W
Certification
80 PLUS Bronze, up to 85% efficiency
AC Input
100–240 V / 5–10 A / 47–63 Hz
DC Outputs
+3.3 V, +5 V, +12 V, -12 V, +5 Vsb
Max Output Current
+3.3 V: 18 A; +5 V: 18 A; +12 V: 48 A; -12 V: 0.4 A; +5 Vsb: 2.5 A
Max Power per Rail
+3.3 V/+5 V: 100 W; +12 V: 576 W; -12 V: 4.8 W; +5 Vsb: 12.5 W
Power Factor Correction
Active PFC (PF up to 0.99)
Support C6/C7
Yes (Intel C6/C7 power states)
Modular Type
Non-modular
Cooling Fan
120 mm hydraulic bearing fan, automatic speed optimization
Main Power
1 × 20+4-pin ATX
CPU Power
1 × 8-pin (4+4) EPS/CPU
PCIe Power
2 × 8-pin (6+2) PCIe
