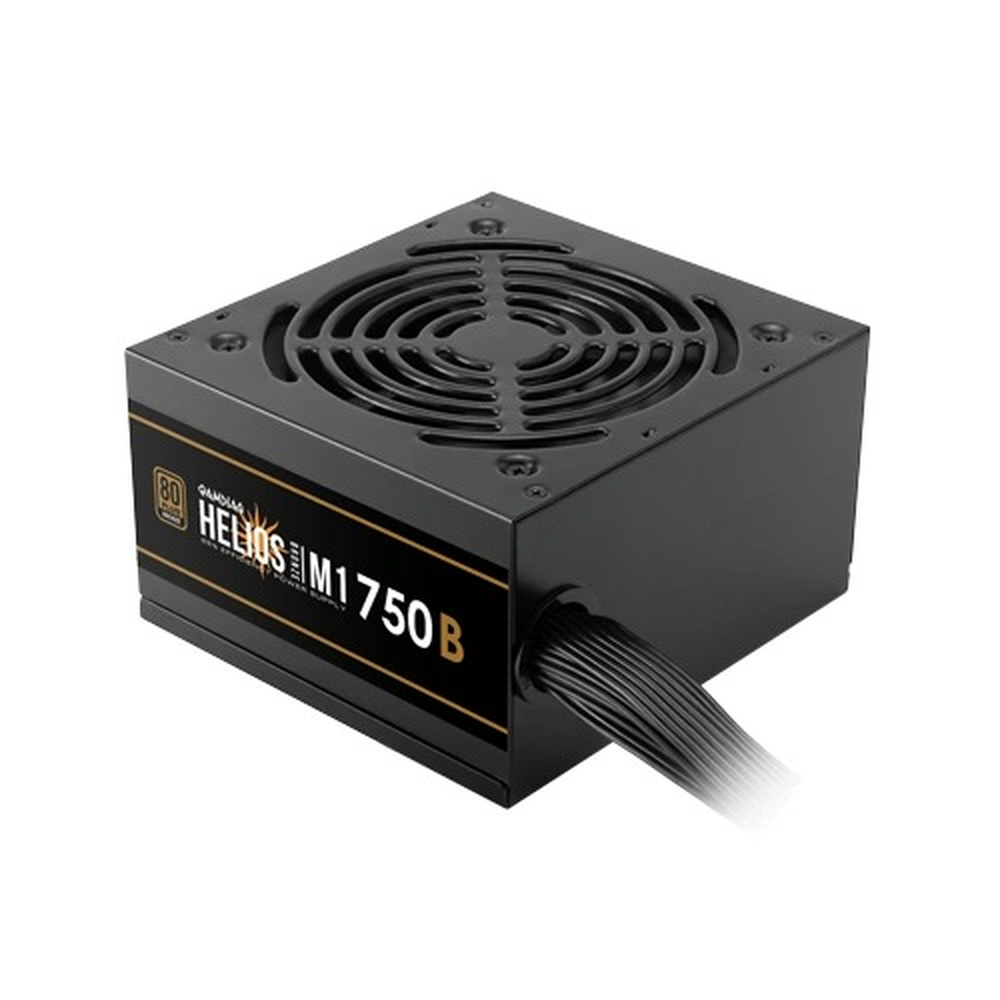

GAMDIAS HELIOS M1-750B 750W 80+ Bronze Non-Modular ATX Power Supply (120mm Hydraulic Fan, 4x PCIe, Flat Cables)
Brand: Gamdias
Price: ₹10,999 (inclusive of GST · genuine product with warranty)
The GAMDIAS HELIOS M1-750B is an 80 PLUS Bronze certified 750 W non-modular ATX power supply designed for high-power gaming and creator PCs that need reliable, efficient power delivery. It delivers up to 85% efficiency, uses active PFC with a power factor up to 0.99 and features a 120 mm hydraulic-bearing smart fan that automatically adjusts speed according to temperature and load. With four 6+2-pin PCIe connectors, five SATA, three Molex, flat black cables and full protections (OVP, UVP, OPP, O
Specifications
| Size | 120mm |
|---|---|
| Type | Power Supply |
| Modular | Non modular |
| Wattage | 750W |
| 80 PLUS Rating | Bronze |
| Active Pfc With Pf Up To 0.99 | APFC design improves input efficiency and voltage stability over a wide 100–240 V AC range |
About this product
The GAMDIAS HELIOS M1-750B is an 80 PLUS Bronze certified 750 W non-modular ATX power supply designed for high-power gaming and creator PCs that need reliable, efficient power delivery. It delivers up to 85% efficiency, uses active PFC with a power factor up to 0.99 and features a 120 mm hydraulic-bearing smart fan that automatically adjusts speed according to temperature and load. With four 6+2-pin PCIe connectors, five SATA, three Molex, flat black cables and full protections (OVP, UVP, OPP, OCP, SCP), the HELIOS M1-750B is ideal for single high-end GPU builds and upgrade-ready systems.
80 PLUS Bronze efficiency (up to 85%): Certified to meet 80 PLUS Bronze efficiency, reducing wasted power and heat while delivering stable 750 W output.
120 mm hydraulic-bearing smart fan: Automatic fan speed optimization adjusts RPM based on temperature and load, keeping noise low at idle and boosting airflow when gaming or rendering.
Active PFC with PF up to 0.99: APFC design improves input efficiency and voltage stability over a wide 100–240 V AC range.
4 PCIe connectors for GPU headroom: Equipped with 4 × 6+2-pin PCIe, 1 × 20+4-pin ATX, 1 × 4+4-pin EPS CPU, 5 × SATA and 3 × Molex, supporting high-end GPUs and multiple drives.
Flat black non-modular cables: Flat black cables simplify routing and improve airflow, while non-modular design keeps cost lower than modular alternatives.
Specification
Detail
Brand
GAMDIAS
Model
HELIOS M1-750B
Form Factor
ATX12V v2.4
Total Power
750 W
Certification
80 PLUS Bronze (up to 85% efficiency)
AC Input
100–240 V / 5.5–11 A / 47–63 Hz
DC Outputs
+3.3 V, +5 V, +12 V, -12 V, +5 Vsb
Max Output Current
+3.3 V: 18 A; +5 V: 18 A; +12 V: 56 A; -12 V: 0.4 A; +5 Vsb: 2.5 A
Max Power per Rail
+3.3 V/+5 V: 100 W; +12 V: 672 W; -12 V: 4.8 W; +5 Vsb: 12.5 W
Power Factor Correction
Active PFC (PF up to 0.99)
Support C6/C7
Yes (Intel C6/C7 power states)
Modular Type
Non-modular
Cooling Fan
120 mm hydraulic bearing fan, automatic speed optimization
Main Power
1 × 20+4-pin ATX
CPU Power
1 × 8-pin (4+4) EPS/CPU
PCIe Power
4 × 8-pin (6+2) PCIe
