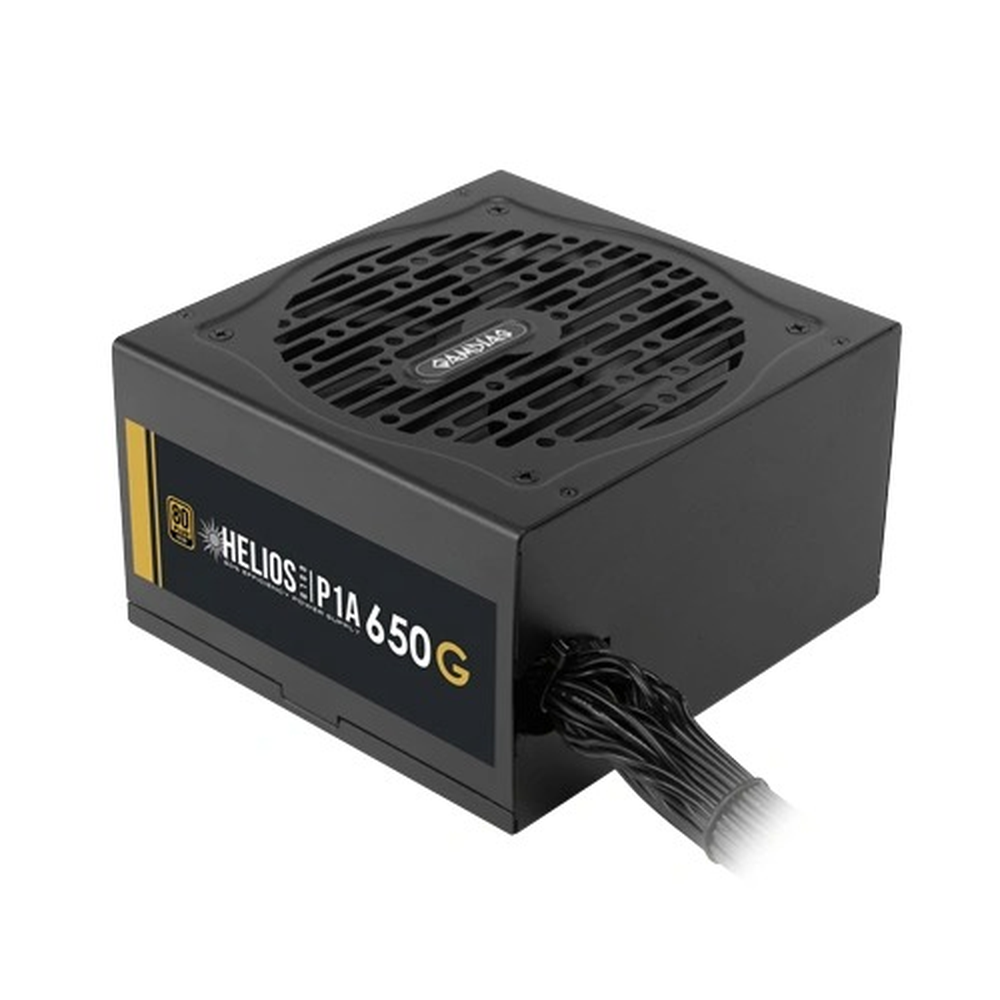

GAMDIAS HELIOS P1A-650G 650W 80+ Gold Non-Modular ATX Power Supply (120mm Hydraulic Fan, 2x PCIe, Flat Cables)
Brand: Gamdias
Price: ₹11,999 (inclusive of GST · genuine product with warranty)
The GAMDIAS HELIOS P1A-650G is an 80 PLUS Gold certified 650 W ATX power supply designed to deliver powerful, efficient and stable power for modern gaming and creator PCs. Certified for up to 90–92% efficiency, it uses a DC-to-DC design with full bridge LLC resonance and 12 V synchronous rectification for cleaner output and better stability. A 120 mm hydraulic-bearing smart fan automatically adjusts its speed based on temperature and load, while high-quality capacitors, flat black cables and a f
Specifications
| Size | 120mm |
|---|---|
| Type | Power Supply |
| Modular | Non modular |
| Wattage | 650W |
| 80 PLUS Rating | Gold |
About this product
The GAMDIAS HELIOS P1A-650G is an 80 PLUS Gold certified 650 W ATX power supply designed to deliver powerful, efficient and stable power for modern gaming and creator PCs. Certified for up to 90–92% efficiency, it uses a DC-to-DC design with full bridge LLC resonance and 12 V synchronous rectification for cleaner output and better stability. A 120 mm hydraulic-bearing smart fan automatically adjusts its speed based on temperature and load, while high-quality capacitors, flat black cables and a full protection suite (OVP, UVP, OPP, OCP, OTP, SCP) ensure long-term reliability.
> 80 PLUS Gold (up to ~90–92% efficiency): Gold certification guarantees stable power output with up to ~92% efficiency at 50% load, significantly reducing wasted power and heat versus Bronze units.
> DC-to-DC with LLC resonant design: Uses a DC-to-DC structure with full bridge LLC resonance and 12 V synchronous rectification to improve performance, stability and safety under varying loads.
> 120 mm hydraulic-bearing smart fan: Hydraulic-bearing fan automatically optimizes speed according to temperature and load, delivering quiet operation at idle and strong cooling when gaming.
> Flat black cables and ATX12V v2.52 support: Flat black cables simplify routing and improve airflow, while ATX12V v2.52 and C6/C7 power state support ensure compatibility with latest platforms.
> Heavy-duty protection suite: Full suite of protections including OVP, UVP, OPP, OCP, OTP and SCP helps keep your system safe from voltage, current and temperature-related faults.
Specification
Detail
Brand
GAMDIAS
Model
HELIOS P1A-650G
Form Factor
ATX12V v2.52
Total Power
650 W
Certification
80 PLUS Gold (up to ~90–92% efficiency)
AC Input
100–240 V~, 10 A, 50–60 Hz
DC Outputs
+3.3 V, +5 V, +12 V, -12 V, +5 Vsb
Max Output Current
+3.3 V: 20 A; +5 V: 20 A; +12 V: 54 A; -12 V: 0.3 A; +5 Vsb: 2.5 A
Max Power per Rail
+3.3 V/+5 V: 110 W; +12 V: 648 W; -12 V: 3.6 W; +5 Vsb: 12.5 W
Power Factor Correction
Active PFC (high PF, up to ~0.9+ typical of Gold units)
Support C6/C7
Yes (Intel C6/C7 power states)
Modular Type
Non-modular (all fixed flat black cables)
Cooling Fan
120 mm hydraulic bearing fan, automatic fan speed optimization
Main Power
1 × 20+4-pin ATX
CPU Power
1 × 8-pin (4+4) EPS/CPU
PCIe Power
2 × 8-pin (6+2) PCIe
