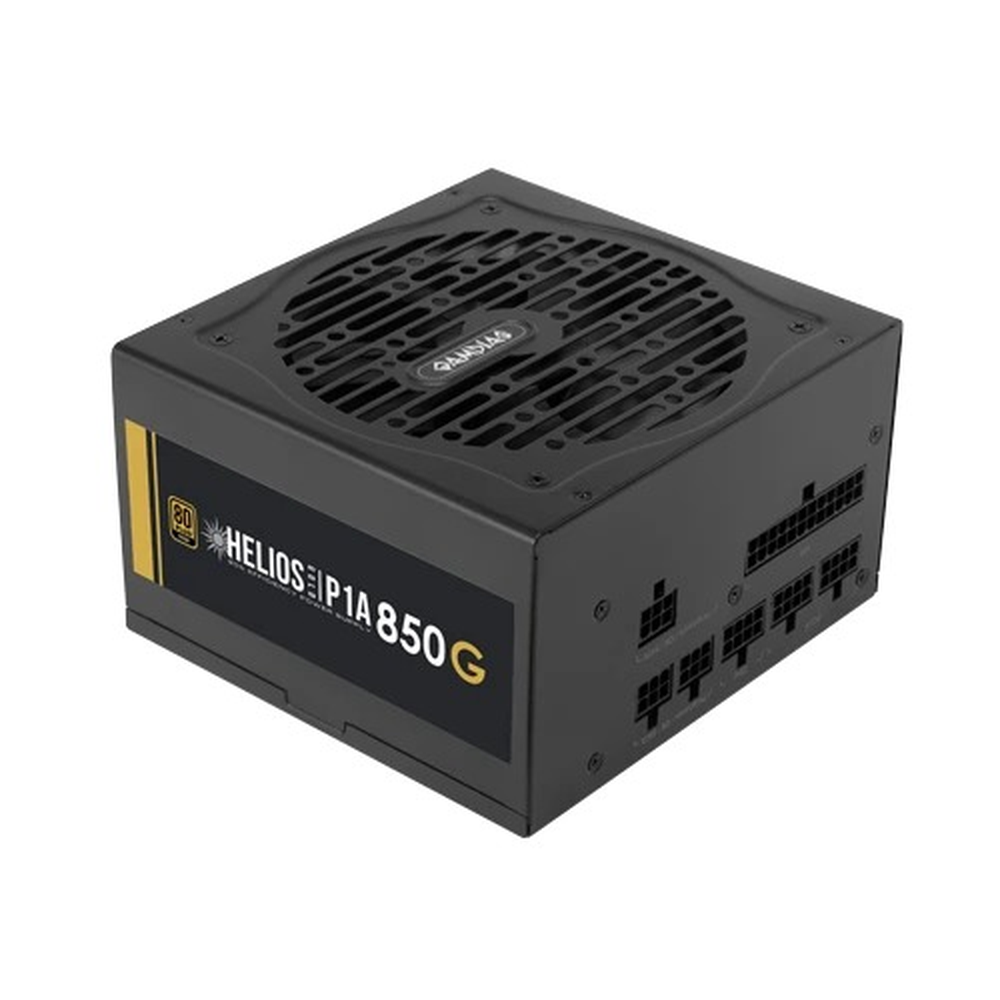

GAMDIAS HELIOS P1A-850G 850W 80+ Gold Fully Modular ATX Power Supply (120mm Hydraulic Fan, Flat Cables, ATX12V v2.52)
Brand: Gamdias
Price: ₹16,999 (inclusive of GST · genuine product with warranty)
The GAMDIAS HELIOS P1A-850G Fully Modular is an 80 PLUS Gold certified 850 W ATX power supply designed to deliver powerful, efficient and stable power for high-performance gaming and creator PCs. It uses a full DC-to-DC structure with full bridge LLC resonance and 12 V synchronous rectification for cleaner output and better stability, achieving up to 90% efficiency and reducing wasted power and heat. A 120 mm hydraulic-bearing smart fan automatically adjusts its speed based on temperature and lo
Specifications
| Size | 120mm |
|---|---|
| Type | Power Supply |
| Modular | Fully modular |
| Wattage | 850W |
| 80 PLUS Rating | Gold |
About this product
The GAMDIAS HELIOS P1A-850G Fully Modular is an 80 PLUS Gold certified 850 W ATX power supply designed to deliver powerful, efficient and stable power for high-performance gaming and creator PCs. It uses a full DC-to-DC structure with full bridge LLC resonance and 12 V synchronous rectification for cleaner output and better stability, achieving up to 90% efficiency and reducing wasted power and heat. A 120 mm hydraulic-bearing smart fan automatically adjusts its speed based on temperature and load, while fully modular flat black cables, high-quality capacitors and a full protection suite (OVP, UVP, OPP, OCP, OTP, SCP) ensure a clean build and long-term reliability.
80 PLUS Gold efficiency: Gold certification guarantees stable power output with up to 90% efficiency, reducing power loss and heat versus lower-tier units.
Full DC-to-DC, LLC resonant design: DC-to-DC structure with full bridge LLC resonance and 12 V synchronous rectification improves performance, voltage stability and safety.
120 mm hydraulic-bearing smart fan: Hydraulic-bearing fan supports automatic speed optimization according to temperature and load for quieter operation and longer lifespan.
Fully modular flat cables: Fully modular design with flat black cables simplifies cable management, improves airflow and keeps the interior clean.
Heavy-duty protection suite: Full protections including OVP, UVP, OPP, OCP, OTP and SCP help protect your system from electrical faults.
Specification
Detail
Brand
GAMDIAS
Model
HELIOS P1A-850G Fully Modular
Form Factor
ATX, ATX12V v2.52
Total Power
850 W
Certification
80 PLUS Gold (up to 90% efficiency)
AC Input
100–240 V~, 12–8 A, 50–60 Hz
DC Outputs
+3.3 V, +5 V, +12 V, -12 V, +5 Vsb
Max Output Current
+3.3 V: 22 A; +5 V: 22 A; +12 V: 70.8 A; -12 V: 0.3 A; +5 Vsb: 3 A
Max Power per Rail
+3.3 V/+5 V: 120 W; +12 V: 850 W; -12 V: 3.6 W; +5 Vsb: 15 W
Design
Full DC-DC, full bridge LLC resonant, single +12 V rail
Modular Type
Fully modular, flat black cables
Fan
120 mm hydraulic-bearing fan with automatic speed control
Main Power
1 × 24-pin ATX
CPU Power
2 × 8-pin (4+4) EPS/CPU (varies by region; at least 1 × 8-pin)
PCIe Power
Typically 4 × 8-pin (6+2) PCIe connectors (check included cable set)
SATA Power
6 × SATA connectors
