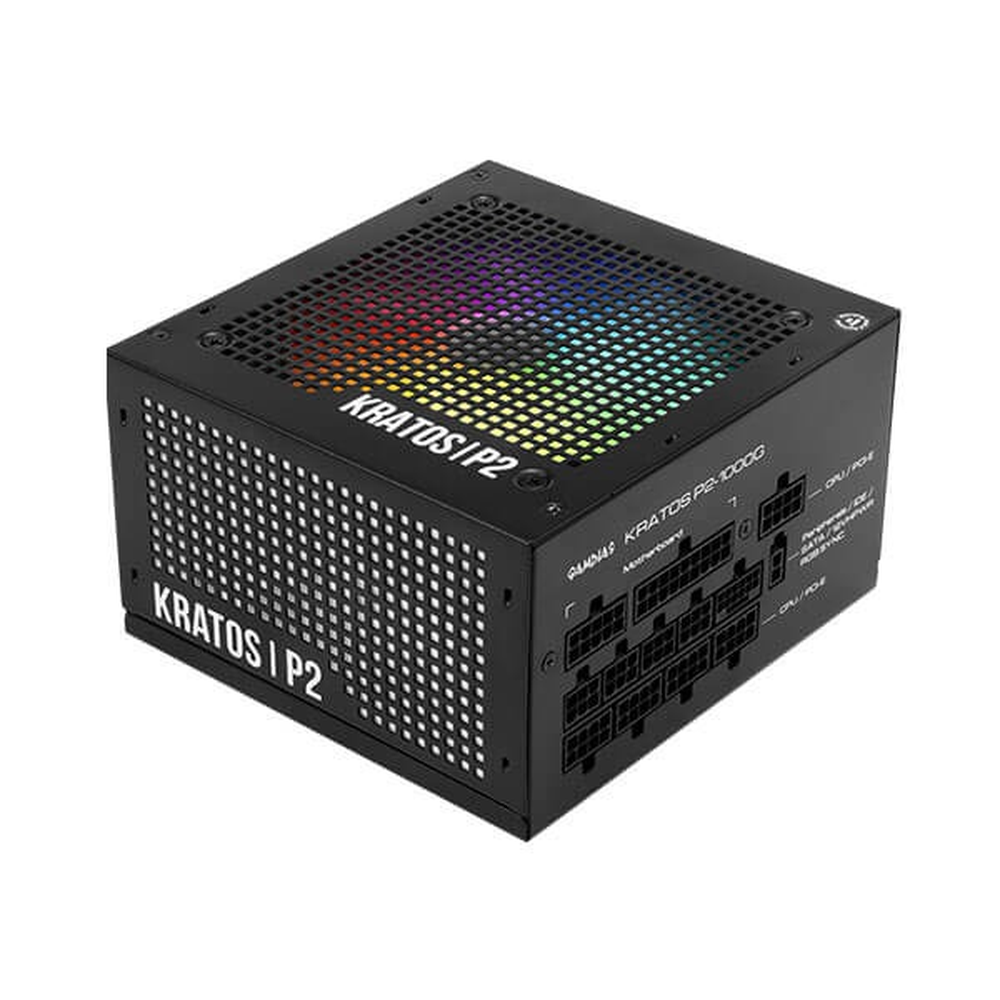

GAMDIAS KRATOS P2-1000G RGB 1000W 80+ Gold ATX 3.0 Fully Modular Power Supply (12VHPWR, PCIe Gen 5.0, 30 ARGB Effects)
Brand: Gamdias
Price: ₹28,999 (inclusive of GST · genuine product with warranty)
The GAMDIAS KRATOS P2-1000G RGB is a 1000 W 80 PLUS Gold fully modular ATX 3.0 power supply designed for high-end gaming and creator PCs that demand both performance and ARGB aesthetics. It delivers up to 90% efficiency at 50% load, uses a full DC-to-DC, LLC resonant design with active PFC (PF up to 0.99) and 100% industrial-grade Japanese capacitors for stable, clean power. With native 16-pin 12VHPWR support (up to 600 W), ATX 3.0 and PCIe Gen 5.0 compliance, a quiet 120 mm hydraulic-bearing fa
Specifications
| Size | 120mm |
|---|---|
| Type | Power Supply |
| Modular | Fully modular |
| Wattage | 1000W |
| ATX Version | 3.0 |
| 80 PLUS Rating | Gold |
About this product
The GAMDIAS KRATOS P2-1000G RGB is a 1000 W 80 PLUS Gold fully modular ATX 3.0 power supply designed for high-end gaming and creator PCs that demand both performance and ARGB aesthetics. It delivers up to 90% efficiency at 50% load, uses a full DC-to-DC, LLC resonant design with active PFC (PF up to 0.99) and 100% industrial-grade Japanese capacitors for stable, clean power. With native 16-pin 12VHPWR support (up to 600 W), ATX 3.0 and PCIe Gen 5.0 compliance, a quiet 120 mm hydraulic-bearing fan and 30 built-in ARGB lighting effects with motherboard sync, the KRATOS P2-1000G is built to power next-generation GPUs while lighting up your build. [web:2449][web:2499][web:2500][web:2501][web:2506]
80 PLUS Gold efficiency: Certified to deliver up to 90% efficiency at 50% load and around 87% at full load, reducing wasted power and heat. [web:2499][web:2500][web:2501]
ATX 3.0 & PCIe Gen 5.0 ready: Meets ATX12V v3.0 spec with support for PCIe Gen 5.0 and a native 12VHPWR (16-pin) connector for next-gen GPUs, plus up to 200% total power excursion. [web:2449][web:2499][web:2500][web:2501]
Japanese capacitors & LLC resonant design: Built with 100% Japanese 105 °C electrolytic capacitors, DC-to-DC structure, full bridge LLC resonance and 12 V synchronous rectification for stable, low-ripple output. [web:2499][web:2500][web:2501]
120 mm hydraulic-bearing silent fan: 120 mm hydraulic-bearing fan supports automatic speed control and a silent mode that minimizes noise at low and medium loads. [web:2499][web:2500][web:2501]
ARGB with 30 built-in effects & sync: Integrated ARGB lighting with 30 built-in effects and 5 V 3-pin ARGB sync support lets you control lighting via motherboard software or a dedicated button. [web:2449][web:2499][web:2500][web:2501]
---
## Key specs
| Spec | Detail |
| --- | --- |
| **Brand** | GAMDIAS [web:2449][web:2499] |
| **Model** | KRATOS P2-1000G RGB [web:2449][web:2499][web:2500] |
| **Form factor** | ATX12V v3.0, ATX 3.0 compliant [web:2499][web:2500][web:2502] |
| **Total power** | 1000 W (peak ~1300 W per spec) [web:2499][web:2500][web:2506] |
| **Certification** | 80 PLUS Gold, up to 90% efficiency at 50% load [web:2499][web:2500][web:2501] |
| **AC input** | 100–240 V~, 13–6.5 A, 47–63 Hz [web:2499][web:2500][web:2506] |
| **DC rails** | +3.3 V, +5 V, +12 V, -12 V, +5 Vsb [web:2499][web:2506] |
| **Max current** | +3.3 V: 20 A; +5 V: 20 A; +12 V: 83 A; -12 V: 0.3 A; +5 Vsb: 3 A [web:2499][web:2506] |
| **Max power per rail** | +3.3 V/+5 V: 130 W; +12 V: 996 W; -12 V: 3.6 W; +5 Vsb: 15 W [web:2499][web:2506] |
| **PFC** | Active PFC, PF up to 0.99 [web:2499][web:2500] |
| **Design** | Full DC-DC, full bridge LLC resonant, single +12 V rail [web:2499][web:2501] |
| **C6/C7 support** | Yes (C6/C7 power states) [web:2499][web:2502] |
| **Modularity** | Fully modular [web:2449][web:2499][web:2500][web:2506] |
| **Fan** | 120 mm hydraulic-bearing fan, automatic speed, silent mode [web:2499][web:2500][web:2501] |
| **Main power** | 1 × 24-pin ATX [web:2499][web:2500][web:2506] |
| **CPU power** | 2 × 8-pin (4+4) EPS/CPU [web:2499][web:2500][web:2506] |
| **PCIe 8-pin** | 4 × 8-pin (6+2) PCIe [web:2499][web:2500][web:2506] |
| **12VHPWR** | 1 × 12+4-pin 12VHPWR (up to 600 W) [web:2499][web:2500][web:2501] |
| **SATA** | 8 × SATA [web:2499][web:2500][web:2506] |
| **Molex** | 4 × 4-pin Molex [web:2499][web:2500][web:2506] |
| **Dimensions (L × W × H)** | 140 × 150 × 86 mm [web:2499][web:2500][web:2506] |
| **Protections** | OVP, UVP, OPP, SCP, OCP, OTP [web:2499][web:2500][web:2501][web:2506] |
| **Capacitors** | 100% Japanese 105 °C electrolytic capacitors [web:2499][web:2500][web:2501] |
