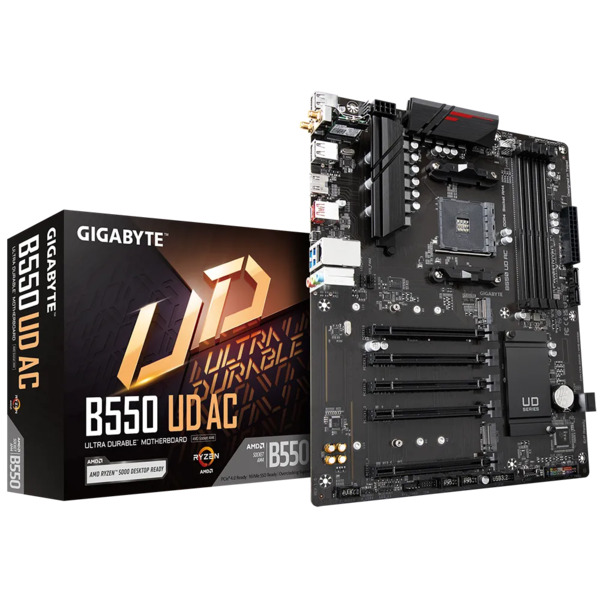

GIGABYTE B550 UD AC AM4 ATX Motherboard
Brand: Gigabyte
SKU: B550-UD-AC
Price: ₹11,999 (inclusive of GST · genuine product with warranty)
AMD AM4 Socket: Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors DDR4 Compatible: Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs Sturdy Power Design: 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs Connectivity: PCIe 4.0 x16 Slot, Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors, Realtek GbE LAN chip Warranty: 3 Years
Specifications
| color | Black |
|---|---|
| Socket | AM4 |
| Chipset | B550 |
| Platform | AMD |
| RAM type | DDR4 |
| Warranty | 3 Years |
| Product Type | gaming |
| Memory Series | DDR4 |
| EAN / UPC Code | 8524775794337 |
| Motherboard Size | ATX |
| Motherboard Series | Gigabyte Ultra Durable |
About this product
GIGABYTE B550 UD AC (AM4/ AMD/ B550/ ATX/Dual M.2/ SATA 6Gb/s/USB 3.2 Gen 2/ Intel 802.11a/b/g/n/ac/Realtek GbE LAN/PCIe 4.0/ Motherboard)
Feature
Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
Ultra Durable™ PCIe 4.0 Ready x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors
GbE LAN with Bandwidth Management
Front USB 3.2 Gen1 Type-C ® and HDMI
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
RGB FUSION 2.0 support Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
AMD StoreMI Technology
GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy• Optimizing computer responsiveness from system boot to application launch• Offering SSD performance with HDD capacity at an affordable cost• Quickly accessing key files by automatically learning users' computing behaviors
10+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
GIGABYTE UD series motherboards use a 10+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
Benefits of Low RDS(on) MOSFETs
‧ Optimized gate charge to minimize switching losses.‧ Lower temperature, smaller size, better thermal characteristics.
M.2 PCIe 4.0 Slot
M.2 PCIe 4.0 x4 slot with Lower impedance.
PCIe 4.0 Slot
PCIe 4.0 x16 slot with faster bandwidth and lower impedance.
Dual Band 802.11ac Wi-Fi
The onboard 802.11ac Wi-Fi module from Intel ® supports Dual Band and up to 1.73Gbps, 5x faster Wi-Fi speed than 802.11n and also support BLUETOOTH 5.
