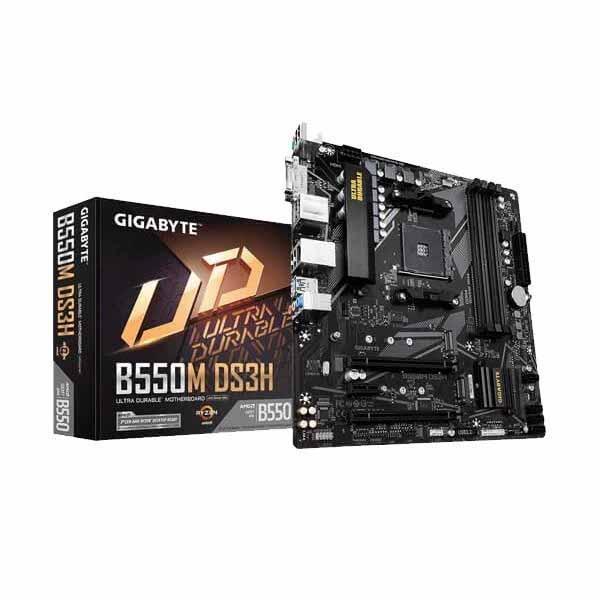

Gigabyte B550M DS3H Motherboard
Brand: Gigabyte
SKU: B550M-DS3H
Price: ₹8,495 (inclusive of GST · genuine product with warranty)
Micro-ATX Gigabyte board for AMD AM4 with the B550 chipset, four DDR4 slots, PCIe 4.0 graphics, two M.2 slots and Q-Flash Plus.
Specifications
| Socket | AM4 |
|---|---|
| Chipset | B550 |
| Platform | AMD |
| RAM type | DDR4 |
| Warranty | 3 Years |
| Memory Series | DDR4 |
| EAN / UPC Code | 4719331809416 |
| Motherboard Size | mATX |
| Motherboard Series | Gigabyte Ultra Durable |
About this product
The Gigabyte B550M DS3H is a Micro-ATX board for AMD's AM4 socket, built on the B550 chipset. It is one of the most common budget boards for Ryzen 5000 series and 3rd Gen Ryzen processors, and it remains a sensible base for an affordable DDR4 build.
It carries four DDR4 memory slots in dual channel, which is more than many entry boards offer and makes later upgrades easy: start with two sticks, add two more when needed. The board accepts both ECC and non-ECC unbuffered memory. Power comes through a 5+3 phase digital VRM with low-resistance MOSFETs, comfortable for six- and eight-core Ryzen chips in normal use.
The main graphics slot is PCIe 4.0 and reinforced under Gigabyte's Ultra Durable design. There are two M.2 slots for NVMe drives: the one wired to the processor runs at PCIe 4.0 with a Ryzen 5000 chip, while the second runs at PCIe 3.0. Networking is wired, through GIGABYTE 8118 Gaming LAN; there is no Wi-Fi on this model.
Smart Fan 5 lets you set fan curves and stop fans at low temperatures for silence, and RGB FUSION 2.0 controls lighting headers. Q-Flash Plus is the most useful feature here: older stock may need a BIOS update before it recognises a newer Ryzen 5000 processor, and Q-Flash Plus updates the BIOS from a USB stick without a CPU or memory installed.
Who it suits: a budget gaming or office PC, an upgrade for an older AM4 system, or a home server on DDR4. Gigabyte covers it with a 3 Years warranty.
