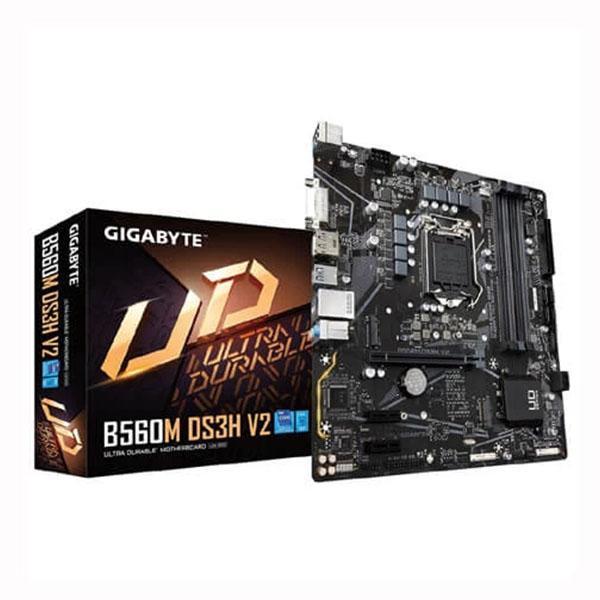

Gigabyte B560M DS3H V2
Brand: Gigabyte
SKU: B560M-DS3H-V2
Price: ₹11,999 (inclusive of GST · genuine product with warranty)
Budget-friendly micro‑ATX board for 10th/11th Gen Intel CPUs with DDR4 and PCIe 4.0 support.
Specifications
| LAN | Realtek RTL8111H Gigabit Ethernet |
|---|---|
| BIOS | UEFI with Q‑Flash |
| Chipset | Intel B560 |
| M.2 Slots | 2 (M.2_1: PCIe 3.0 x4, M.2_2: SATA/PCIe 3.0 x4) |
| CPU Socket | LGA1200 |
| SATA Ports | 4 x SATA 6 Gb/s |
| VRM Phases | 4+2 digital power phases |
| Audio Codec | Realtek ALC887 (7.1‑channel HD Audio) |
| Form Factor | Micro‑ATX (24.4 cm x 22.5 cm) |
| Memory Type | DDR4 |
| Memory Slots | 4 DIMM slots |
| Memory Speed | Up to 5333 MHz (OC) |
| USB Type‑C | None |
| Maximum Memory | 128 GB |
| Supported CPUs | 10th Gen Intel Core (Comet Lake) and 11th Gen Intel Core (Rocket Lake) |
| PCIe x16 Version | PCIe 4.0 (CPU lane) |
| Power Connectors | 24‑pin ATX, 8‑pin EPS |
| USB Ports (Rear) | 2 x USB 3.2 Gen1 Type‑A, 2 x USB 2.0 Type‑A, 1 x HDMI, 1 x DisplayPort |
| PCI Express Slots | 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1 |
| Operating Temperature | 0 °C to 50 °C |
About this product
The Gigabyte B560M DS3H V2 is a micro‑ATX motherboard built around Intel's B560 chipset, targeting budget and mainstream builds. It supports 10th and 11th generation Intel Core processors on the LGA1200 socket, offering a solid platform for everyday computing and entry‑level gaming.
Memory support includes four DDR4 DIMM slots with a maximum capacity of 128 GB and speeds up to 5333 MHz (OC). The board provides a single PCIe 4.0 x16 slot for a graphics card, plus two PCIe 3.0 x1 slots for additional expansion. Storage options feature two M.2 slots (one PCIe 3.0 x4, one SATA) and four SATA 6 Gb/s ports.
Connectivity is handled by a Realtek RTL8111H Gigabit Ethernet controller and a Realtek ALC887 audio codec, delivering reliable network and audio performance. Rear I/O includes USB 3.2 Gen1 Type‑A ports, USB 2.0, HDMI, DisplayPort, and standard audio jacks. The board is powered by a 4+2 phase digital VRM, ensuring stable power delivery for the supported CPUs.
Designed for Indian consumers, the B560M DS3H V2 comes with a comprehensive box package, a three‑year manufacturer warranty, and Gigabyte's UEFI BIOS with easy‑to‑use Q‑Flash for updates. It is a practical choice for users building cost‑effective PCs without compromising essential features.
