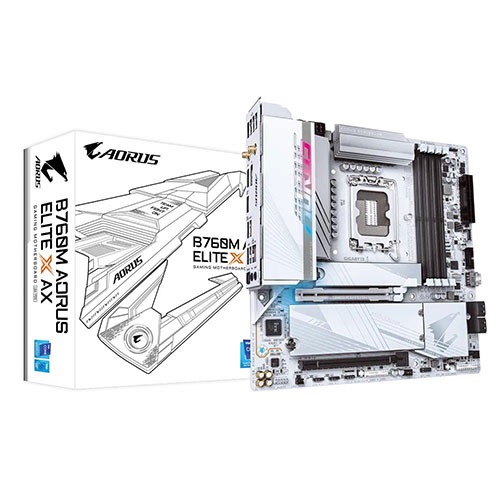

Gigabyte B760M Aorus ELITE X AX DDR5 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors
Brand: Gigabyte
SKU: B760M-AORUS-ELITE-X-AX
Price: ₹18,849 (inclusive of GST · genuine product with warranty)
Supports Intel® Core™ 14th and 13th processors Digital twin 14+1+1 phases VRM solution Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card EZ-Latch Click：M.2 heatsinks with screwless design
Specifications
| LAN | Intel 2.5 GbE |
|---|---|
| BIOS | AMI UEFI BIOS, 256 Mbit flash, Q‑Flash / Q‑Flash Plus |
| Audio | Realtek HD Audio codec, up to 7.1‑channel, S/PDIF out |
| Chipset | Intel B760 Express |
| USB rear | 1 × USB‑C Gen2×2, 1 × USB‑C Gen2 (header), 1 × USB‑A Gen2, 1 × USB‑A Gen1, 4 × USB 2.0 |
| Wireless | Wi‑Fi 6E (Realtek RTL8852CE or Intel AX211), Bluetooth 5.3 |
| M.2 slots | 2 × M.2 Socket 3 (CPU: 2280 PCIe 4.0 x4; Chipset: 22110/2280 PCIe 4.0 x4) |
| CPU socket | LGA1700 |
| PCIe slots | 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x4 |
| SATA ports | 4 × SATA 6 Gb/s (RAID 0/1/5/10) |
| Form factor | Micro‑ATX, 24.4 × 24.4 cm |
| Video outputs | 1 × HDMI 2.1 (4096×2160@60 Hz), 1 × Front HDMI 1.4 (1080p@30 Hz), 1 × DisplayPort 1.2 (4096×2304@60 Hz) |
| Memory support | DDR5 up to 8266 MT/s (OC), 4 × DIMM, up to 256 GB |
| Unique features | GIGABYTE Control Center, Q‑Flash Plus, TPM header |
| Memory architecture | Dual‑channel, XMP, ECC (non‑ECC mode) |
| Operating system support | Windows 11 64‑bit, Windows 10 64‑bit |
About this product
This motherboard supports 12th, 13th and 14th Gen Intel Core, Pentium Gold and Celeron processors using the LGA1700 socket, offering future upgrade paths. It uses the Intel B760 chipset for mainstream feature balance. The memory design accommodates four DDR5 DIMM slots, dual‑channel architecture, and supports XMP profiles and high overclocked speeds. Networking is robust with Intel 2.5 GbE LAN and Wi‑Fi 6E plus Bluetooth 5.3 (depending on PCB revision). Storage options include multiple M.2 slots with PCIe 4.0 support and SATA ports with RAID support. The rear I/O includes modern connectivity—USB 3.2 Gen2×2 Type‑C, HDMI 2.1, DisplayPort 1.2, and audio with S/PDIF support. It's compact Micro‑ATX (24.4 × 24.4 cm), suitable for smaller builds.
Buy online at https://www.rj-quantum.com/products/gigabyte-b760m-aorus-elite-x-ax — secure checkout with UPI, cards & net-banking, GST invoice on every order, delivery across India.
