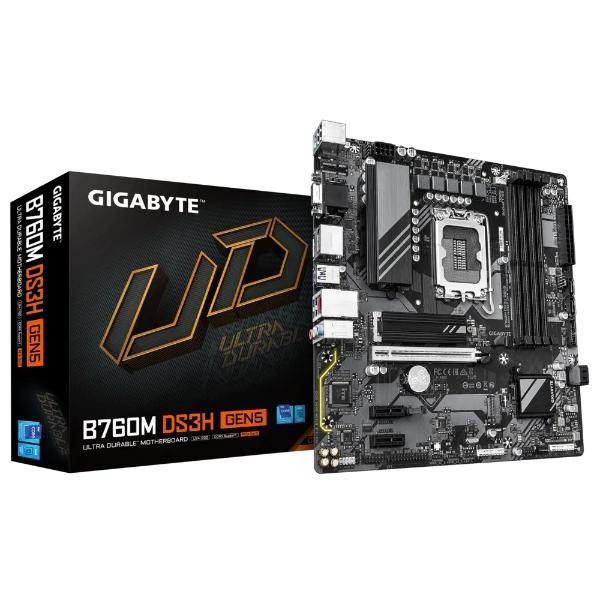

Gigabyte B760M DS3H GEN5 Motherboard
Brand: Gigabyte
SKU: B760M-DS3H-GEN5
Price: ₹13,149 (inclusive of GST · genuine product with warranty)
Specifications
| Socket | LGA 1700 |
|---|---|
| Chipset | B760 |
| RAM type | DDR5 |
| Motherboard Size | mATX |
| Motherboard Series | Gigabyte Ultra Durable |
About this product
Gigabyte B760M DS3H GEN5 Motherboard
PCIe Gen5 Performance : Perfect Sync to Win
Supports Intel® Core™ 14th/ 13th /12th processors
EZ-Latch : PCIe 5.0×16 Slot with Quick Release Design
PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
Gigabyte Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
Fast Networks : 2.5 GbE LAN
Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
Extended Connectivity : Rear USB-C® 10Gb/s, DP, HDMI, D-Sub
Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
Category
Details
CPU Support
LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
Chipset
Intel® B760 Express
Memory
– DDR5 5600/5200/4800/4400 MT/s (i9/i7) – DDR5 4800/4400 MT/s (i5/i3/Pentium/Celeron) – 4x DDR5 DIMM (up to 256 GB) – ECC/non-ECC Un-buffered DIMMs
Graphics (iGPU)
– D-Sub (1920×1200@60Hz) – HDMI 2.1 (4096×2160@60Hz) – 2x DisplayPort 1.2 (4096×2304@60Hz) – Quad display support
Audio
Realtek® Audio CODEC, 7.1-channel HD Audio, S/PDIF Out
LAN
Realtek® 2.5GbE LAN
Expansion Slots
– 1x PCIe x16 (Gen5) – 2x PCIe x1 (Gen3)
Storage
– 2x M.2 PCIe 4.0 x4/x2 (2280) – 4x SATA 6Gb/s – RAID 0, 1, 5, 10
USB Ports
– 1x USB-C 3.2 Gen 2 – 5x USB 3.2 Gen 1 (3 rear, 2 internal) – 6x USB 2.0 (2 rear, 4 internal via headers)
Internal Headers
24-pin ATX, 8-pin 12V, 3x fan, RGB Gen2, TPM, SPDIF, front panel, serial, parallel, USB headers, reset/CMOS jumper, Q-Flash Plus
Back Panel I/O
2x USB 2.0, PS/2, D-Sub, HDMI, 2x DisplayPort, 3x USB 3.2 Gen 1, 1x USB-C 3.2 Gen 2, RJ-45, 3x Audio jacks
I/O Controller
iTE® I/O Controller
Monitoring
Voltage, temperature, fan speed, water flow rate, fan fail warning, smart fan control
