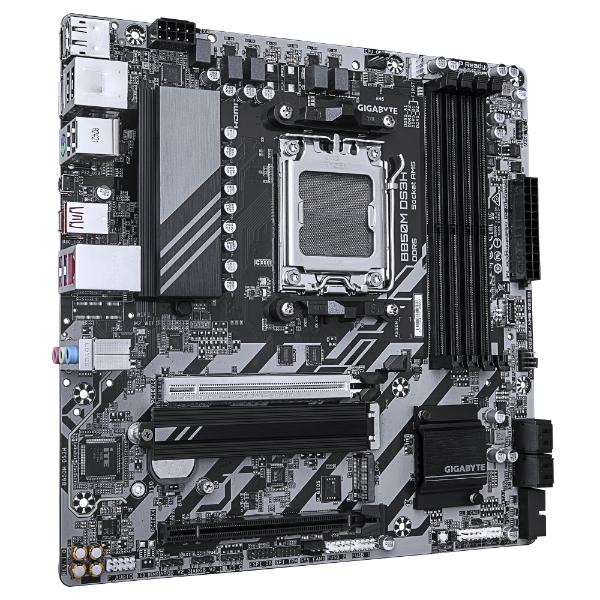

Gigabyte B850M DS3H AM5 M-ATX AMD Motherboard
Brand: Gigabyte
SKU: B850M DS3H
Price: ₹13,099 (inclusive of GST · genuine product with warranty)
Gigabyte B850M DS3H Micro-ATX AM5 motherboard, B850, X3D Turbo Mode, four DDR5 slots, PCIe 5.0 M.2, EZ-Latch, 2.5GbE LAN.
Specifications
| LAN | Realtek 2.5 GbE |
|---|---|
| BIOS | 256 Mbit AMI UEFI BIOS |
| audio | Realtek HD Audio (2/4/5.1/7.1‑channel) |
| socket | AM5 |
| chipset | AMD B850 |
| USB_rear | 1 × USB‑C (USB 3.2 Gen 2), 1 × USB 3.2 Gen 2 Type‑A, 2 × USB 3.2 Gen 1, 4 × USB 2.0 |
| features | Q‑Flash, Q‑Flash Plus, Smart Backup, GIGABYTE Control Center |
| M.2_slots | 2 (1 × PCIe 5.0 x4, 1 × PCIe 4.0 x4 — CPU dependent) |
| OS_support | Windows 10/11 64‑bit |
| SATA_ports | 4 × SATA 6 Gb/s |
| max_memory | 256 GB |
| RGB_headers | 3 × Addressable RGB Gen2, 1 × RGB LED header |
| fan_headers | CPU fan, CPU/pump, system fan/pump |
| form_factor | Micro‑ATX (24.4 cm × 24.4 cm) |
| memory_type | DDR5 |
| RAID_support | RAID 0/1/5/10 (RAID 5 only with Ryzen 9000) |
| USB_internal | 1 × USB‑C header Gen 2, 1 × USB 3.2 Gen 1 header, 2 × USB 2.0 headers |
| memory_slots | 4 × DIMM |
| memory_speed | DDR5‑8200 (OC) down to 4800 MT/s |
| PCIe_x16_slot | 1 × PCIe 5.0 ×16 (CPU dependent) |
| video_outputs | 1 × HDMI 2.1 (4K@60 Hz), 2 × DisplayPort 1.4 (4K@144 Hz) |
| PCIe_secondary | 1 × PCIe 3.0 ×4 (chipset) |
About this product
The Gigabyte B850M DS3H is a Micro-ATX motherboard for AMD's AM5 socket, built on the B850 chipset. It supports Ryzen 9000, 8000 and 7000 series processors and gives a mid-range AM5 build modern features without the price of a premium board.
Gaming performance gets a helping hand from X3D Turbo Mode, a BIOS setting that tunes the system for Ryzen processors with 3D V-Cache in one step. Power reaches the processor through a digital twin 8+2+2 phase VRM, sized well for six- and eight-core Ryzen chips.
Memory runs in dual channel across four DDR5 slots with AMD EXPO support, so a rated kit reaches its speed with a single setting, and there is room to add sticks later. That is a practical advantage over many compact boards that offer only two slots.
Storage includes two M.2 slots, one of them PCIe 5.0, both under M.2 Thermal Guard heatsinks to hold drive speeds steady. Building is easier thanks to Gigabyte's EZ-Latch on the graphics slot, which gives it a quick-release design, and M.2 EZ-Latch Plus for screwless M.2 installation.
The BIOS is friendly for first-time builders, with multiple themes, AIO fan control for liquid coolers, and Q-Flash Auto Scan to find firmware updates. Networking is wired 2.5GbE LAN; this model has no built-in Wi-Fi, so add an adapter if you need wireless. Display outputs include two DisplayPort and one HDMI for Ryzen processors with integrated graphics.
Who it suits: gamers and home users building a compact AM5 PC who want four memory slots and PCIe 5.0 storage. Gigabyte covers it with a 3 Years warranty.
