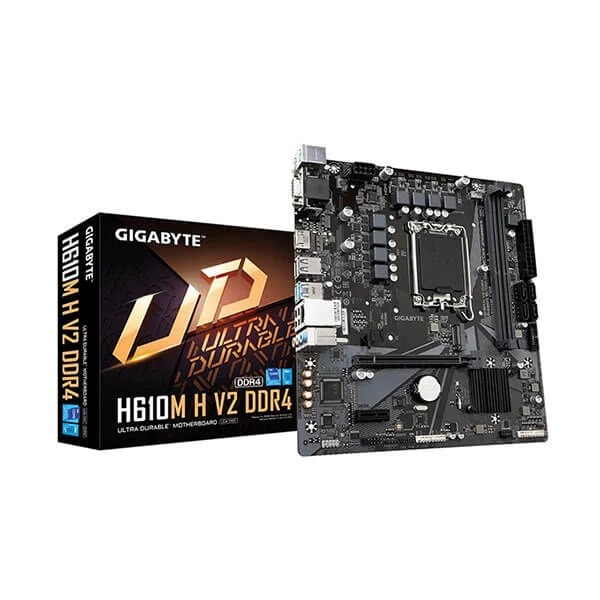

Gigabyte H610M H V2 DDR4 (rev. 1.0) Motherboard Supports Intel 12th, 13th & 14th Gen Processors
Brand: Gigabyte
SKU: H610M-H-V2-DDR4
Price: ₹6,400 (inclusive of GST · genuine product with warranty)
Supports Intel ® Core™ 14th/ 13th /12th processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs 6+1+1 Hybrid Digital VRM Design GbE LAN with Bandwidth Management
Specifications
| color | Black |
|---|---|
| Socket | LGA 1700 |
| Warranty | 3 Years |
| Product Type | Normal |
| Memory Series | DDR4 |
| EAN / UPC Code | 4719331851743 |
| Motherboard Size | mATX |
About this product
GIGABYTE H610M H V2 DDR4 motherboard (LGA1700) Supports 13th Generation Intel® Core Processors and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors*
Feature
Supports 13th/12th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
6+1+1 Hybrid Digital VRM Design
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan
Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design
6+1+1 Phases Hybrid Power Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
6+1+1 Phases Low RDS(on) MOSFETs
Solid capacitors to improve transient response and minimize oscillation.
8-pin Solid Pin CPU Power Connector.
Single 32GB Support
The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Smart Fan 6
Headers & Sensors
3 PWM/DC Fan Headers
4 Internal Temperature Sensors
Cooling Features
High Current Support
Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
Precision Control
Up to 7 temperature/fan speed control points for precise fan curve
Dual Curve Mode
Slope/Stair dual mode for different user scenario
Fan Stop
Fan can stop completely below users' specified temperature point
Hybrid Cores Optimization
With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
PCIe 3.0 m.2 Slot
NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
