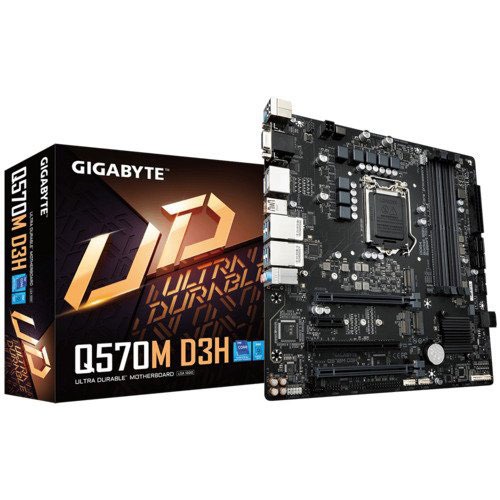

Gigabyte Q570M D3H DDR4 Micro ATX Intel Motherboard

Brand: Gigabyte

SKU: Q570M-D3H

Price: ₹13,444 (inclusive of GST · genuine product with warranty)

Supports 11th and 10th Gen Intel ®  Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2

Specifications

About this product

Gigabyte Q570M D3H DDR4 Micro ATX Intel Motherboard

Feature

Supports 11th and 10th Gen Intel ®  Core™ Series Processors

Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs

Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2

Dual Intel ®  GbE LAN with cFosSpeed Internet Accelerator Software

High Quality Audio Capacitors

Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

Anti-Sulfur Resistors Design

Support Intel ®  vPro™ Technology

Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

Digital PWM Controller to deliver appropriate voltage to the CPU.

Direct 6+2 Phases Low RDS(on) MOSFETs without PWM Doublers, each power phase connects directly to the CPU.

All-solid capacitors to improve transient response and minimize oscillation.

4-pin Solid Pin CPU Power Connector.

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Headers & Sensors

2 PWM/DC Fan Headers

4 Internal Temperature Sensors

Cooling Features

High Current Support

Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control

Up to 7 temperature/fan speed control points for precise fan curve

Dual Curve Mode

Slope/Stair dual mode for different user scenario

Fan Stop

Fan can stop completely below users' specified temperature point

Smart Fan 6 BIOS UI

Improve fan curve UI

We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.

Slope/Stair dual graph mode

Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.

Manual Input

For advanced users, we provide fan speed manual input for more precise control.

EZ Tuning

Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
