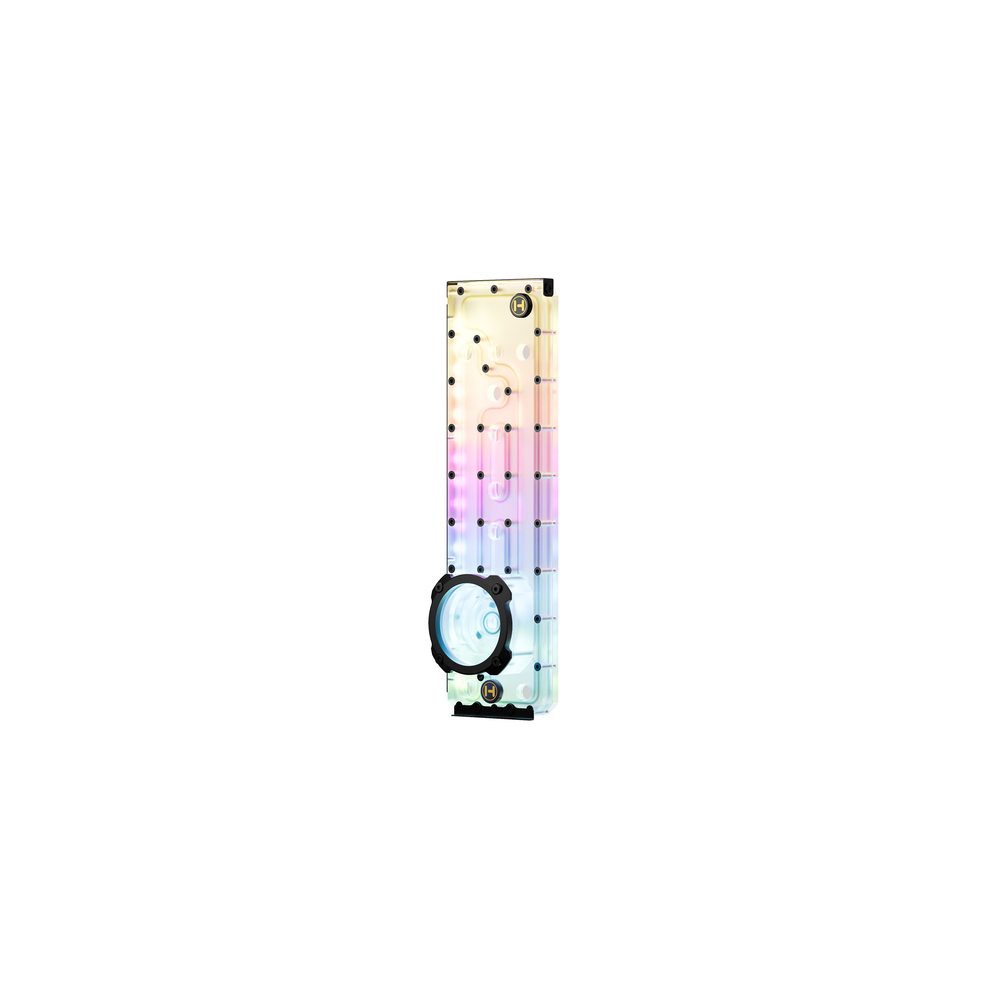

HYTE Y60 BYO Distro ARGB Distribution Plate for Y60
Brand: HYTE
Price: ₹17,499 (inclusive of GST · genuine product with warranty)
The HYTE Y60 BYO Distro is a custom ARGB distribution plate engineered exclusively for the HYTE Y60 case, replacing the corner glass to put your coolant flow front and center. It supports both D5 and DDC pumps, includes four separate flow chambers and is designed for dual‑radiator CPU + GPU custom loops, making it the perfect centrepiece for showcase builds. Exclusively for HYTE Y60: Designed to fit the Y60’s corner glass position, using dedicated brackets an
Specifications
| Type | Accessories |
|---|---|
| Lighting | ARGB |
About this product
The HYTE Y60 BYO Distro is a custom ARGB distribution plate engineered exclusively for the HYTE Y60 case, replacing the corner glass to put your coolant flow front and center. It supports both D5 and DDC pumps, includes four separate flow chambers and is designed for dual‑radiator CPU + GPU custom loops, making it the perfect centrepiece for showcase builds.
Exclusively for HYTE Y60: Designed to fit the Y60’s corner glass position, using dedicated brackets and hardware for a seamless, rigid install.
Showcase your loop: Clear acrylic distro with routed channels prioritises visible coolant flow across the front of the case so your loop becomes part of the aesthetics.
ARGB illumination: 17 addressable RGB LEDs connect via a 3‑pin 5 V ARGB header to light the distro and coolant path with rich, even lighting.
Bring your own pump: Includes tops and mounting hardware for both D5 and DDC pumps so you can choose your preferred pump (pump not included).
Four flow chambers: Internal layout with four separate flow chambers enables precise routing between CPU block, GPU block and up to two radiators.
Dual‑radiator ready: Port layout supports cooling for both CPU and GPU in a dual‑radiator loop inside the Y60.
Specification
Detail
Brand
HYTE
Product Name
Y60 Distro / Y60 BYO Distro ARGB Distribution Plate
SKU
CS-HYTE-Y60-DISTRO
Case Compatibility
HYTE Y60 only (replaces corner/front glass)
Materials
Acrylic, silicone, steel, POM
Thread
G1/4" ports
Flow Chambers
Four internal flow chambers
Pump Support
D5 and DDC pump tops with O-rings included (pump not included)
D5 Mounting
D5 pump top pre‑installed, D5 retention & screws included
DDC Mounting
DDC pump top with O‑ring and mounting screws included
Included Stop Fittings
2 × stop fittings
LEDs
17 addressable RGB LEDs
RGB Connector
3‑pin 5 V ARGB header
Addressable RGB
Yes
Loop Support
CPU + GPU + dual radiators (Y60 layout)
Included Hardware
