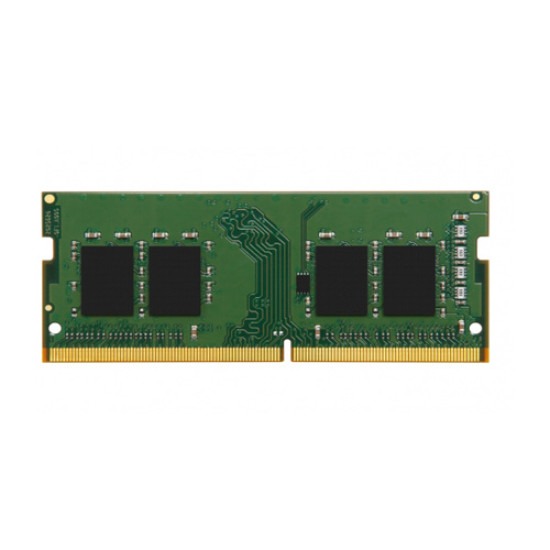

Kingston 16GB 3200MHZ DDR4 NON-ECC RAM (KVR32S22S8-16)
Brand: KIngston
SKU: KVR32S22S8/16
Price: ₹12,298 (inclusive of GST · genuine product with warranty)
DDR4 · 3200 MHz · Green. 10 Years warranty.
Specifications
| color | Green |
|---|---|
| RAM type | DDR4 |
| Warranty | 10 Years |
| RAM Frequency | 3200 MHz |
About this product
Kingston 16GB 3200MHZ DDR4 NON-ECC RAM (KVR32S22S8-16)
Feature
This document describes Kingston ValueRAM's KVR32S22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.
Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Single-rank
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
PCB: Height 1.18” (30.00mm)
RoHS Compliant and Halogen-Free
