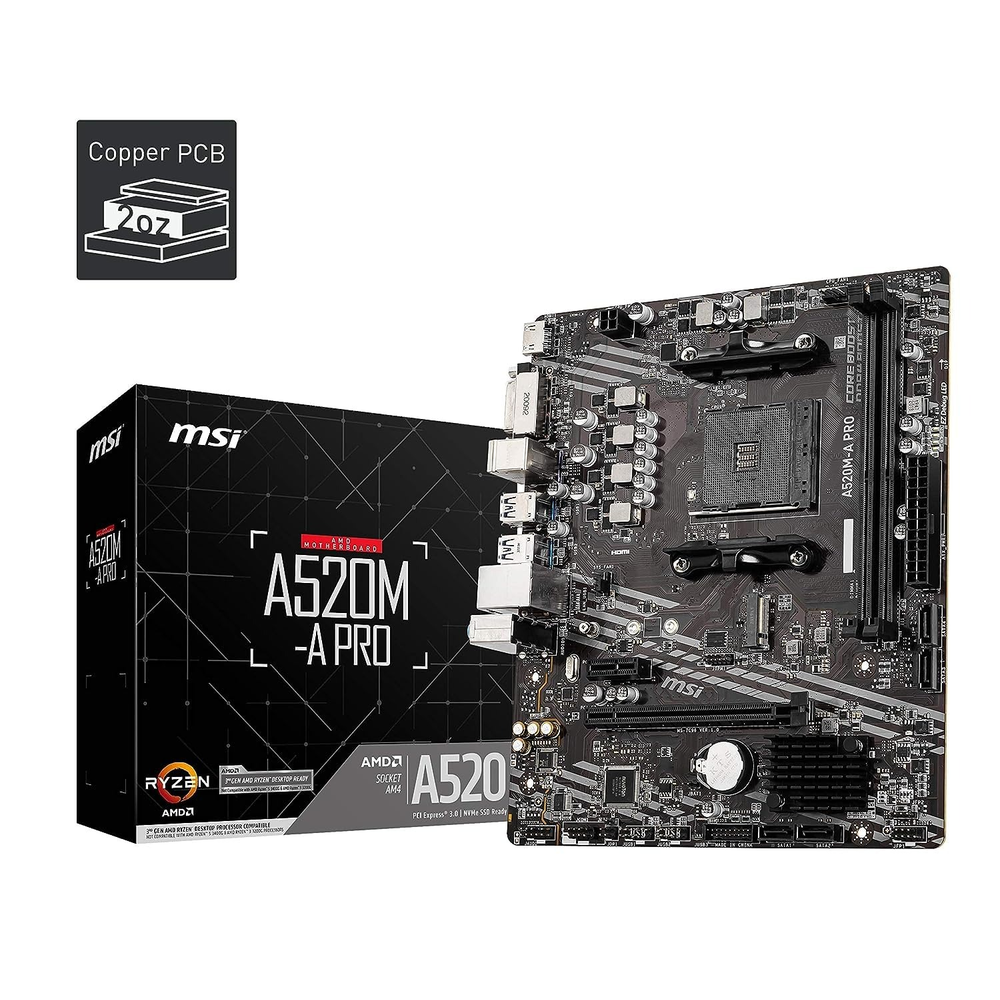

MSI A520M-A PRO Motherboard
Brand: MSI
SKU: MOBO0476
Price: ₹7,200 (inclusive of GST · genuine product with warranty)
AMD A520 mATX Motherboard for AM4 — Core Boost, Turbo M.2 PCIe 3.0 x4, No Wi-Fi, 1G LAN, DDR4 4600+ OC, 2x DDR4 up to 64GB, 4x SATA, HDMI 1.4 + DVI-D, USB 5Gbps, Ryzen 5000 / 4000G / 3000 Ready. The MSI A520M-A PRO is the most affordable AM4 mATX for reliable everyday Ryzen builds — no overclocking, no frills, just stable performance. Built on AMD A520 with Core Boost VRM, it features Turbo M.2 (PCIe 3.0 x4 from CPU), Realtek 1G LAN, dual video output (HDMI 1.4 + DVI-D), Audio Boost 7.1-CH, U
Specifications
| PCIE | PCI_E1: PCIe 3.0 x16 (CPU); 1x PCIe 3.0 x1 (Chipset) |
|---|---|
| Type | Motherboard |
| Audio | Realtek ALC892, 7.1-CH, Audio Boost, up to 192kHz |
| Connectivity | No Wi-Fi; Realtek RTL8111H 1G LAN |
| HDMI Version | 1.4 |
| PCIe Version | 3.0 |
| Power Delivery | Core Boost, DDR4 Boost, 1x 4-pin CPU connector |
About this product
AMD A520 mATX Motherboard for AM4 — Core Boost, Turbo M.2 PCIe 3.0 x4, No Wi-Fi, 1G LAN, DDR4 4600+ OC, 2x DDR4 up to 64GB, 4x SATA, HDMI 1.4 + DVI-D, USB 5Gbps, Ryzen 5000 / 4000G / 3000 Ready.
The MSI A520M-A PRO is the most affordable AM4 mATX for reliable everyday Ryzen builds — no overclocking, no frills, just stable performance. Built on AMD A520 with Core Boost VRM, it features Turbo M.2 (PCIe 3.0 x4 from CPU), Realtek 1G LAN, dual video output (HDMI 1.4 + DVI-D), Audio Boost 7.1-CH, USB 5Gbps Gen 1, 4x SATA 6G, and full Ryzen 5000 compatibility — the ideal low-cost foundation for office, home, or first-time builds.
> CPU Support: AMD Ryzen 5000 / 5000G / 4000G / 3000 / 3000G Series — Socket AM4 (no overclocking; A520 chipset)
> Power Delivery: Core Boost, DDR4 Boost, 1x 4-pin CPU connector
> Storage: M2_1: PCIe 3.0 x4 + SATA (CPU, 2242/2260/2280) — 1 slot only; 4x SATA 6G | RAID 0, 1, 10
> Connectivity: No Wi-Fi; Realtek RTL8111H 1G LAN
> USB: Rear — 2x USB 2.0, 4x USB 5Gbps Gen 1 Type-A, 1x PS/2; Front — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A
> PCIe: PCI_E1: PCIe 3.0 x16 (CPU); 1x PCIe 3.0 x1 (Chipset)
> Audio: Realtek ALC892, 7.1-CH, Audio Boost, up to 192kHz
Specification
Details
Chipset
AMD A520
Socket
AM4
Form Factor
mATX (200 x 236 mm)
Memory
2x DDR4 UDIMM, up to 64GB; DDR4 4600+(OC) / 3200(JEDEC) MHz; 1DPC 1R max 4600 MHz / 1DPC 2R max 3866 MHz; Supports ECC UDIMM (non-ECC mode)
Memory Standard
A-XMP OC Mode, Dual Channel, Non-ECC & ECC (non-ECC mode) Unbuffered
PCIe Slots
PCI_E1: PCIe 3.0 x16 (CPU); 1x PCIe 3.0 x1 (Chipset)
M.2 Slots
M2_1: PCIe 3.0 x4 + SATA (CPU, 2242/2260/2280) — 1 slot only; No PCIe 4.0 M.2; No CPU/memory overclocking (A520)
