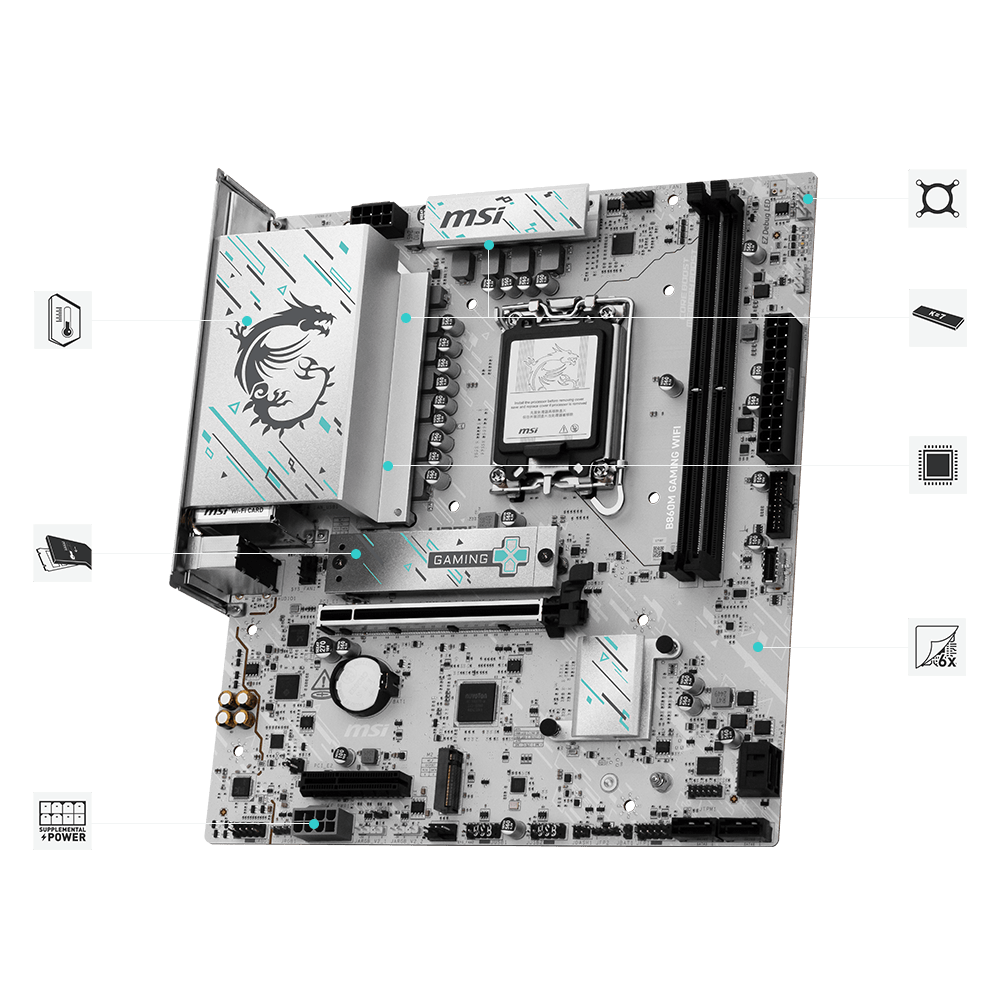

MSI B860M GAMING WIFI Motherboard
Brand: MSI
SKU: MSI-MOBO0506
Price: ₹14,999 (inclusive of GST · genuine product with warranty)
Value mATX Intel B860 Gaming Motherboard — Wi-Fi 7, 5G LAN, PCIe 5.0, and USB 20G Type-C for Intel Core Ultra Series 2. The MSI B860M GAMING WIFI is a compact Micro-ATX gaming motherboard for Intel Core Ultra Series 2 processors on the LGA 1851 socket. It delivers strong value with Wi-Fi 7 (up to 2.9Gbps), Realtek 5G LAN, PCIe 5.0 x16, 3x M.2 slots with M.2 Gen5, USB 20Gbps Type-C, Supplemental PCIe Power, and EZ DIY features — optimised for 24/7 gaming with a compact footprint and 2-slot DDR
Specifications
| Type | Motherboard |
|---|---|
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| CPU Support | Intel Core Ultra Series 2, LGA 1851 socket |
| Connectivity | Wi-Fi 7 (802.11be, 2.4/5/6GHz, 160MHz, up to 2.9Gbps), Realtek 8126 5G LAN, Bluetooth 5.4 |
| Wi-Fi Version | 7 |
| Power Delivery | 10+1+1+1 Duet Rail Power System, supplemental PCIe power, single 8-pin CPU connector |
About this product
Value mATX Intel B860 Gaming Motherboard — Wi-Fi 7, 5G LAN, PCIe 5.0, and USB 20G Type-C for Intel Core Ultra Series 2.
The MSI B860M GAMING WIFI is a compact Micro-ATX gaming motherboard for Intel Core Ultra Series 2 processors on the LGA 1851 socket. It delivers strong value with Wi-Fi 7 (up to 2.9Gbps), Realtek 5G LAN, PCIe 5.0 x16, 3x M.2 slots with M.2 Gen5, USB 20Gbps Type-C, Supplemental PCIe Power, and EZ DIY features — optimised for 24/7 gaming with a compact footprint and 2-slot DDR5 layout.
> CPU Support: Intel Core Ultra Series 2, LGA 1851 socket
> Power Delivery: 10+1+1+1 Duet Rail Power System, supplemental PCIe power, single 8-pin CPU connector
> Storage: 3x M.2 — M.2_1: PCIe 5.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (Chipset); M.2_3: PCIe 4.0 x4 / SATA (Chipset); 4x SATA 6G
> Connectivity: Wi-Fi 7 (802.11be, 2.4/5/6GHz, 160MHz, up to 2.9Gbps), Realtek 8126 5G LAN, Bluetooth 5.4
> USB: Rear — 1x USB 20Gbps Type-C, 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 2x USB 2.0; Front — 2x USB 5Gbps, 1x USB 10Gbps Type-C, 4x USB 2.0
> Note: 2x DDR5 slots (up to 128GB) — ideal for single-stick upgradeable builds
> Audio: Realtek ALC897, 7.1-Channel HD Audio
Specification
Details
Chipset
Intel B860
Socket
LGA 1851
Form Factor
mATX (220 x 243.84 mm)
Memory
2x DDR5 UDIMM, up to 128GB, DDR5 9066+ MT/s (OC) / 6400–4800 MT/s (JEDEC)
Memory Standard
XMP 3.0, CUDIMM supported, Dual Channel, single-sided DIMM latches
PCIe Slots
PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 4.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset)
M.2 Slots
3x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (Chipset, up to 22110); M.2_3: PCIe 4.0 x4 / SATA (Chipset, 2280/2260/2242)
