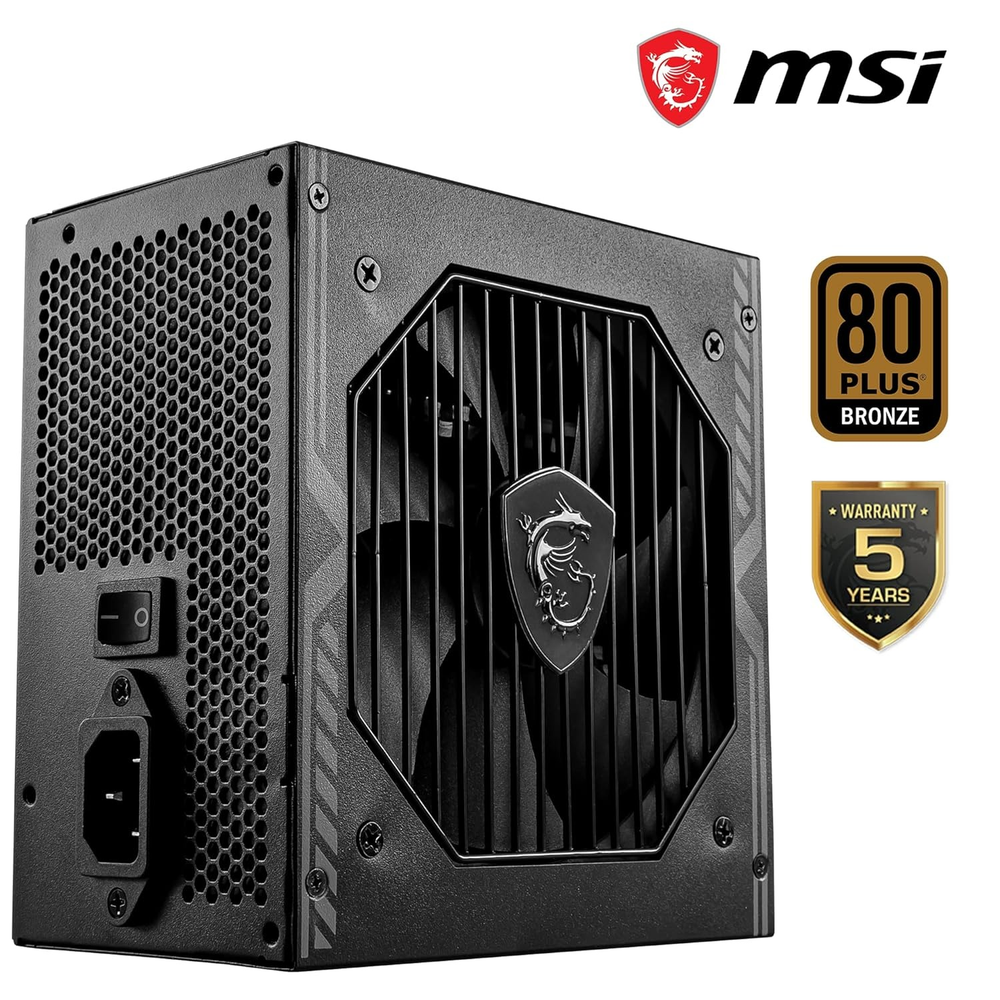

MSI MAG A650BN 650W 80+ Bronze Non-Modular Power Supply Unit
Brand: MSI
Price: ₹4,090 (inclusive of GST · genuine product with warranty)
650W Non-Modular ATX PSU — 80 PLUS Bronze (up to 85% efficiency), Single +12V Rail (648W), DC-DC Circuit Design, 120mm Low-Noise Fan, Active PFC, 5-Year Warranty. The MSI MAG A650BN is a 650W non-modular ATX power supply aimed at mid-range gaming PCs and workstations. With an 80 PLUS Bronze rating (up to 85% efficiency), a strong single +12V rail delivering up to 648W, and a 120mm low-noise sleeve bearing fan, it provides stable, efficient power for modern multi-core CPUs and GPUs. DC-to-DC c
Specifications
| Size | 120mm |
|---|---|
| Type | Power Supply |
| Modular | Non modular |
| Wattage | 650W |
| 80 PLUS Rating | Bronze |
About this product
650W Non-Modular ATX PSU — 80 PLUS Bronze (up to 85% efficiency), Single +12V Rail (648W), DC-DC Circuit Design, 120mm Low-Noise Fan, Active PFC, 5-Year Warranty.
The MSI MAG A650BN is a 650W non-modular ATX power supply aimed at mid-range gaming PCs and workstations. With an 80 PLUS Bronze rating (up to 85% efficiency), a strong single +12V rail delivering up to 648W, and a 120mm low-noise sleeve bearing fan, it provides stable, efficient power for modern multi-core CPUs and GPUs. DC-to-DC circuitry, active PFC, industrial-grade protections, and a 5-year warranty make the MAG A650BN a reliable backbone for mainstream gaming builds and value-focused systems.
> 80 PLUS Bronze Certified — Up to 85% efficiency under typical load, reducing wasted power and internal heat for better overall system efficiency.
> Single +12V Rail Design — Provides up to 54A / 648W on the +12V rail, ensuring stable power delivery to CPU and GPU under gaming or rendering loads.
> DC-to-DC Circuit Design — Core DC-to-DC conversion on minor rails improves voltage stability and reduces ripple for sensitive components.
> 120mm Low-Noise Fan — Sleeve-bearing 120mm fan automatically adjusts speed for quiet cooling during typical use.
> Active PFC — Active power factor correction improves input power quality and reduces reactive power draw.
> Industrial-Grade Protection — OCP, OVP, OPP, OTP, and SCP help protect your system from over-current, over-voltage, overload, over-temperature, and short-circuit conditions.
> Non-Modular Cabling — Fixed cables keep costs down and provide a full set of connectors for typical mid-range gaming builds.
> 5-Year Warranty — MSI backs the MAG A650BN with a 5-year limited warranty for long-term reliability.
Spec
Detail
Product Name
MAG A650BN
Power Wattage
650W
Efficiency Rating
80 PLUS Bronze (up to 85%)
Form Factor
ATX
Modular
No (non-modular)
Input Voltage
100–240 VAC
Input Current
115Vac/10.0A max; 230Vac/5.0A max
Input Frequency
50–60 Hz
PFC Type
Active PFC
Fan Size
120 mm
Fan Bearing
Sleeve Bearing
Dimensions (D × W × H)
140 × 150 × 86 mm
+12V Rail
Single rail, 54A, 648W max
+3.3V / +5V
20A each; combined 110W
