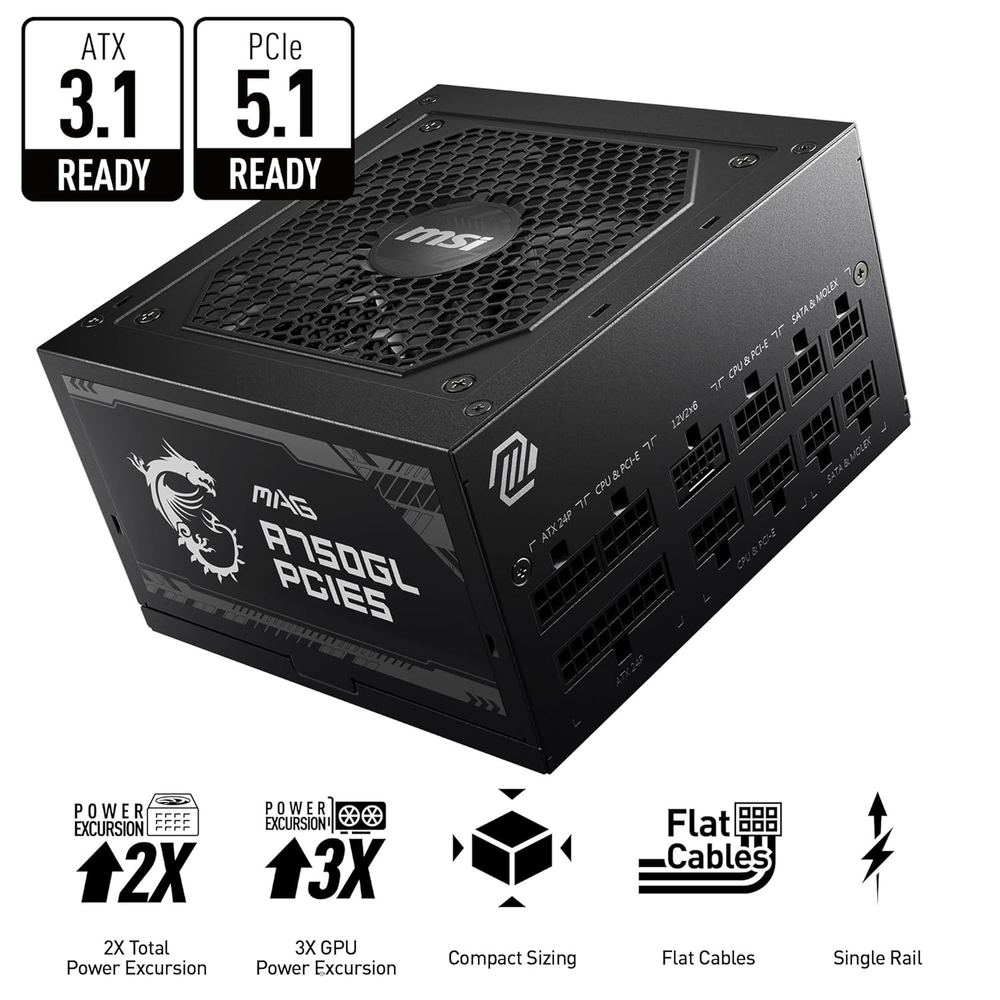

MSI MAG A750GL PCIE5 750W 80+ Gold Fully Modular PCIe 5.0 ATX 3.1 Power Supply Unit
Brand: MSI
Price: ₹8,190 (inclusive of GST · genuine product with warranty)
750W Fully Modular ATX 3.1 PSU — 80 PLUS Gold (up to 90% efficiency), Native PCIe 5.1 16‑Pin (450W) Connector, Full‑Bridge LLC DC‑to‑DC Design, 120mm FDB Fan, 2× Power Excursion & 3× GPU Excursion Support, 7‑Year Warranty. The MSI MAG A750GL PCIE5 is a fully modular 750W 80 PLUS Gold power supply designed for modern RTX 40/50‑series gaming builds. ATX 3.1 readiness, PCIe 5.1 16‑pin support up to 450W, and a full‑bridge LLC DC‑to‑DC topology deliver stable, efficient power with improved handli
Specifications
| Type | Power Supply |
|---|---|
| Modular | Fully modular |
| Wattage | 750W |
About this product
750W Fully Modular ATX 3.1 PSU — 80 PLUS Gold (up to 90% efficiency), Native PCIe 5.1 16‑Pin (450W) Connector, Full‑Bridge LLC DC‑to‑DC Design, 120mm FDB Fan, 2× Power Excursion & 3× GPU Excursion Support, 7‑Year Warranty.
The MSI MAG A750GL PCIE5 is a fully modular 750W 80 PLUS Gold power supply designed for modern RTX 40/50‑series gaming builds. ATX 3.1 readiness, PCIe 5.1 16‑pin support up to 450W, and a full‑bridge LLC DC‑to‑DC topology deliver stable, efficient power with improved handling of power excursions. A compact 140mm ATX chassis, flat black modular cables, 120mm fluid dynamic bearing fan, and full industrial‑grade protection make the MAG A750GL PCIE5 a strong, future‑proof choice for mid‑to‑high‑end gaming PCs.
ATX 3.1 & PCIe 5.1 Ready — Compliant with Intel ATX 3.1 PSDG and PCIe 5.1, supporting up to 2× total power excursion and 3× GPU power excursion versus rated wattage.
Native 16‑Pin (12V2x6) Cable — Integrated dual‑color PCIe 5.1 16‑pin connector can supply up to 450W directly to compatible RTX 40/50‑series GPUs, eliminating most adapters.
80 PLUS Gold Efficiency — Up to 90% efficiency under typical load reduces waste heat and power draw, improving system efficiency and PSU longevity.
Full‑Bridge LLC DC‑to‑DC Topology — High‑quality LLC + DC‑to‑DC platform delivers stable voltages and low ripple on all rails, ideal for high‑performance CPUs and GPUs.
Fully Modular Design — Detachable flat black cables simplify cable management and airflow, letting you connect only what you need.
120mm Fluid Dynamic Bearing Fan — FDB fan offers quiet, long‑life cooling and ramps up smoothly under load.
High Power Excursion Support — Rated for up to 1500W brief power excursion (200% of rated output for 100μs), ideal for handling transient spikes from modern GPUs.
Industrial‑Grade Protection — OCP, OVP, OPP, OTP, SCP, and UVP protect your system from common electrical faults.
Compact ATX Size — 140mm depth ATX housing fits easily in most modern mid‑towers and compact builds.
7‑Year Warranty — Long 7‑year manufacturer warranty underscores MSI’s confidence in long‑term reliability.
Spec
Detail
Product Name
MAG A750GL PCIE5
Total Power
750W
Efficiency Rating
80 PLUS Gold (up to 90%)
ATX Standard
ATX 3.1 compatible (ATX 3.0 on some earlier labels)
Form Factor
ATX
Modular
Yes (fully modular)
Input Voltage Range
100–240 VAC
Input Frequency Range
47–63 Hz
AC Input (Max)
100–240V~, 10A, 47–63Hz
PFC Type
Active PFC
Fan Size
120 mm
Fan Bearing
Fluid Dynamic Bearing (FDB)
Dimensions (D × W × H)
140 × 150 × 86 mm
