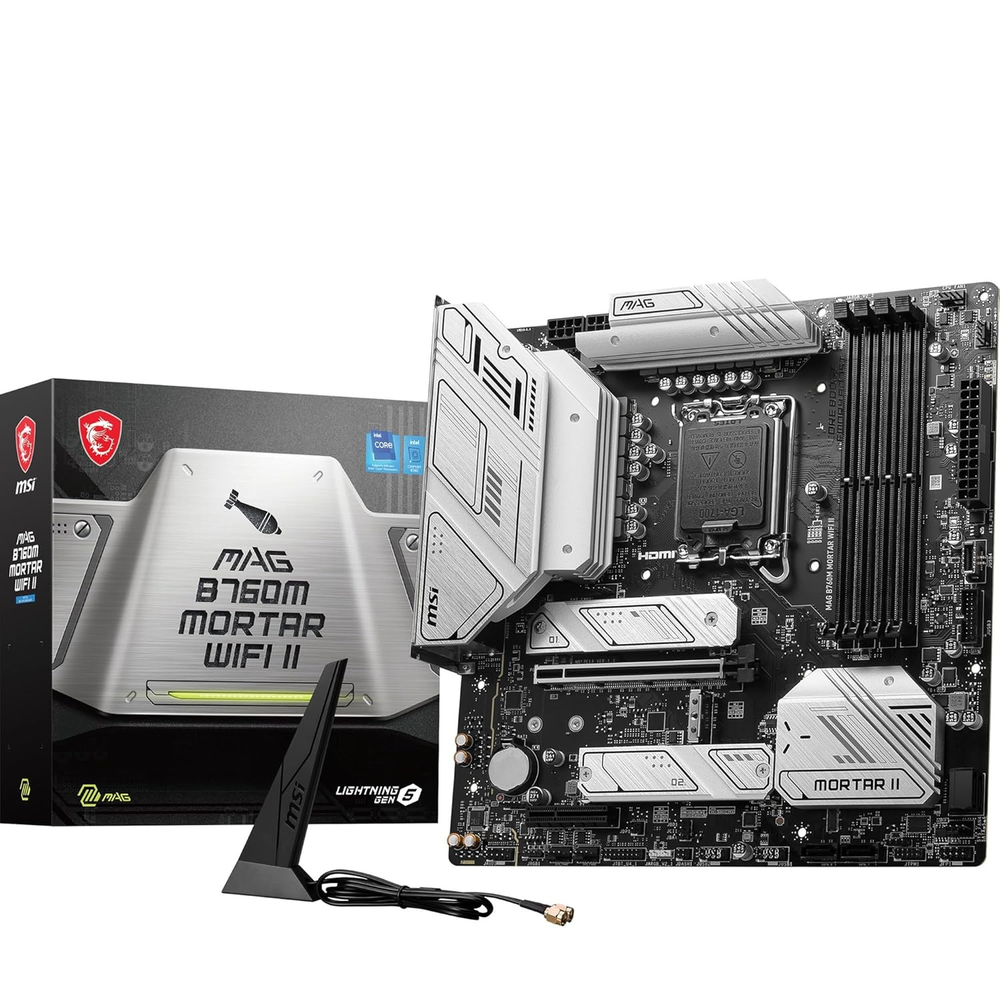

MSI MAG B760M MORTAR WIFI II Motherboard
Brand: MSI
SKU: MSI-MOBO0513
Price: ₹14,999 (inclusive of GST · genuine product with warranty)
Compact mATX Intel B760 Gaming Motherboard — Wi-Fi 6E, PCIe 5.0, DDR5 7800+, and 3x M.2 Gen4 for Intel Core 12th, 13th & 14th Gen. The MSI MAG B760M MORTAR WIFI II is a feature-rich Micro-ATX gaming motherboard for Intel Core 12th, 13th, and 14th Gen processors on the LGA 1700 socket. It packs a 12+1+1 Duet Rail power system with dual 8-pin CPU connectors, Intel Wi-Fi 6E (up to 2.4Gbps), Realtek 2.5G LAN, PCIe 5.0 x16, 3x M.2 PCIe 4.0 slots, USB 20Gbps Type-C, and Extended M.2 Shield Frozr —
Specifications
| Type | Motherboard |
|---|---|
| Audio | Realtek ALC897, 7.1-Channel HD Audio, S/PDIF output |
| CPU Support | Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket |
| Ez Features | EZ M.2 Clip, EZ Debug LED (4x), JDASH tuning controller connector, USB4 card header (JTBT_U4) |
| Connectivity | Intel Wi-Fi 6E (2.4/5/6GHz, 160MHz, up to 2.4Gbps), Realtek 2.5G LAN, Bluetooth 5.3 |
| Bluetooth Version | 5.3 |
About this product
Compact mATX Intel B760 Gaming Motherboard — Wi-Fi 6E, PCIe 5.0, DDR5 7800+, and 3x M.2 Gen4 for Intel Core 12th, 13th & 14th Gen.
The MSI MAG B760M MORTAR WIFI II is a feature-rich Micro-ATX gaming motherboard for Intel Core 12th, 13th, and 14th Gen processors on the LGA 1700 socket. It packs a 12+1+1 Duet Rail power system with dual 8-pin CPU connectors, Intel Wi-Fi 6E (up to 2.4Gbps), Realtek 2.5G LAN, PCIe 5.0 x16, 3x M.2 PCIe 4.0 slots, USB 20Gbps Type-C, and Extended M.2 Shield Frozr — all on a 6-layer 2oz copper server-grade PCB for compact high-performance builds.
CPU Support: Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket
Power Delivery: 12+1+1 Duet Rail Power System, dual 8-pin CPU connectors, Core Boost, Memory Boost, 6-layer 2oz thickened copper PCB
Storage: 3x M.2 — M.2_1: PCIe 4.0 x4 (CPU, 2280/2260/2242); M.2_2: PCIe 4.0 x4 (Chipset, 2280/2260); M.2_3: PCIe 4.0 x4 / SATA (Chipset, 2280); 4x SATA 6G — M.2 Shield Frozr on all slots
Connectivity: Intel Wi-Fi 6E (2.4/5/6GHz, 160MHz, up to 2.4Gbps), Realtek 2.5G LAN, Bluetooth 5.3
USB: Rear — 3x USB 10Gbps Type-A, 1x USB 20Gbps Type-C, 4x USB 2.0; Front — 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0
EZ Features: EZ M.2 Clip, EZ Debug LED (4x), JDASH tuning controller connector, USB4 card header (JTBT_U4)
Audio: Realtek ALC897, 7.1-Channel HD Audio, S/PDIF output
Specification
Details
Chipset
Intel B760
Socket
LGA 1700
Form Factor
mATX (243.84 x 243.84 mm), 6-layer 2oz copper PCB
Memory
4x DDR5 UDIMM, up to 256GB, DDR5 7800+ MT/s (OC) / 5600–4800 MT/s (JEDEC)
Memory Standard
XMP, Dual Channel, non-ECC unbuffered
