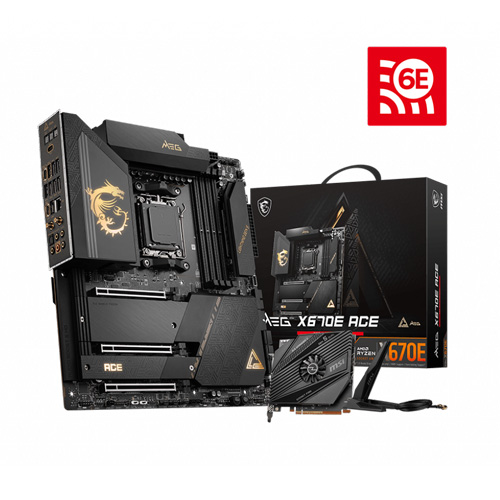

MSI MEG X670E ACE DDR5 AM5 AMD Ryzen 7000 Series Wi-Fi 6E E-ATX Motherboard

Brand: MSI

SKU: MEG X670E ACE

Price: ₹76,899 (inclusive of GST · genuine product with warranty)

Supports AMD Ryzen™ 7000 Series Desktop Processors Supports DDR5 Memory, Dual Channel DDR5 6666 MHz (OC) Extreme Power Design: 22 2 1 phases power design with 90A Power Stage and dual CPU power connectors are ready to unleash the maximum performance. Maximum 6 x M.2 Connectors: Onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing thrott

Specifications

About this product

MSI MEG X670E ACE DDR5 AM5 AMD Ryzen 7000 Series Wi-Fi 6E E-ATX Motherboard

Overviews

Supports AMD Ryzen™ 7000 Series Desktop Processors

Supports DDR5 Memory, Dual Channel DDR5 6666 MHz (OC)

Extreme Power Design: 22 2 1 phases power design with 90A Power Stage and dual CPU power connectors are ready to unleash the maximum performance.

Maximum 6 x M.2 Connectors: Onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.

Outstanding Cooling Solution: Stacked Fin Array, Direct Touch VRM Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, double-sided M.2 Shield Frozr and Frozr AI software ensure the extreme performance with low temperature.

10G Super LAN with latest Wi-Fi 6E solution: Onboard 10Gbps LAN with the latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.

Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2×2 20G with 60W USB Power Delivery.

DIY Friendly Design: Patent Magnetic M.2 Shield Frozr, Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor

8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.

Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience

Specifications

CHIPSET : AMD X670

CPU SUPPORT : Supports AMD Ryzen™ 7000 Series Desktop Processors

Socket AM5

MEMORY : 4x DDR5, Maximum Memory Capacity 128GB

Memory Support DDR5 6666 (OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6666 MHz

• 1DPC 2R Max speed up to 6000 MHz

• 2DPC 1R Max speed up to 6400 MHz

• 2DPC 2R Max speed up to 4000 MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO

ONBOARD GRAPHICS : 1x Type-C DisplayPort

Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT : 3x PCI-E x16 slot

Supports x16/x0/x4, x8/x8/x4

PCI_E1 PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 PCIe 5.0 supports up to x8 (From CPU)

PCI_E3 PCIe 5.0 supports up to x4 (From CPU)

MULTI-GPU : Supports AMD MULTI-GPU

STORAGE : 4x M.2 slot

M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
