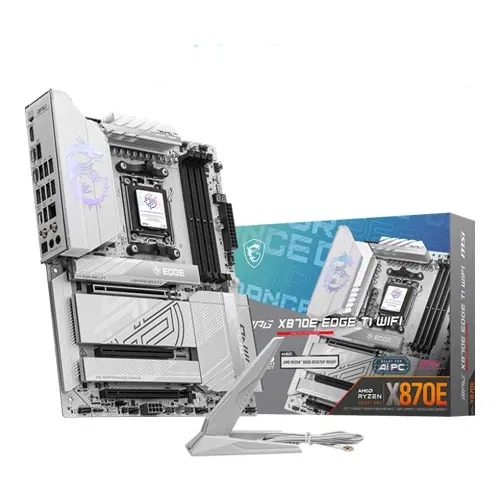

MSI MPG X870E Edge TI WIFI AM5 ATX Motherboard

Brand: MSI

SKU: MPG-X870E-EDGE-TI-WIFI

Price: ₹37,885 (inclusive of GST · genuine product with warranty)

ATX Form Factor AMD X870E Chipset AM5 Socket 4 x Dual-Channel DDR5 Slots 4 x SATA | 2 x PCIe 5.0 | 2 x PCIe 4.0

Specifications

About this product

MSI MPG X870E EDGE TI WIFI AM5 AMD X870E SATA 6Gb/s 5G LAN DDR5 M.2 Wi-Fi 7 ATX Motherboards

Feature

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)

Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material

Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna

Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2

Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission

Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Perform in Style

The MSI MPG X870E EDGE TI WIFI is a gaming oriented ATX motherboard with a 14 Duet Rail Power System, constructed around the latest AMD X870E chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7, DDR5 and premium Frozr design that delivers both performance and style.

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

The MPG X870E EDGE TI WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.

Form Factor:  ATX

Socket Type:  AM5

Chipset:  AMD X870E

Ultra Power – 14 Duet Rail Power System with 80A Smart Power Stage

With exclusive Core Boost technology and EZ OC Tuning functions, the MPG X870E EDGE TI WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

Digital PWM IC

14 Duet Rail Power System (80A / SPS)

2 Phase SOC Power

1 Phase MISC Power

Frozr Design

Frozr Guard:  Extended Heatsink design, Heat-pipe, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.

Frozr Sync:  Connect and synchronize cooling with strategically placed pin-headers – including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.

Frozr Control:  Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

4 x DDR5 Dual Channel (8400+ MT/s OC)*

Memory Boost:  A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

High-Efficiency Mode:  Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.

EXPO Profiles  in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

* 1DPC 1R Max. overclocking frequency 8400+ MT/s, supports AMD EXPO.

Fortified PCIe 5.0 x16 Slot

The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting 21% more graphics card weight compared to 1st Gen Steel Armor.

1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor II** and EZ PCIe Release)

1 x PCIe 4.0/3.0 x16 slot*

1 x PCIe 3.0 x1 slot

* Supports x16/x4

** MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen5 M.2 Connector
