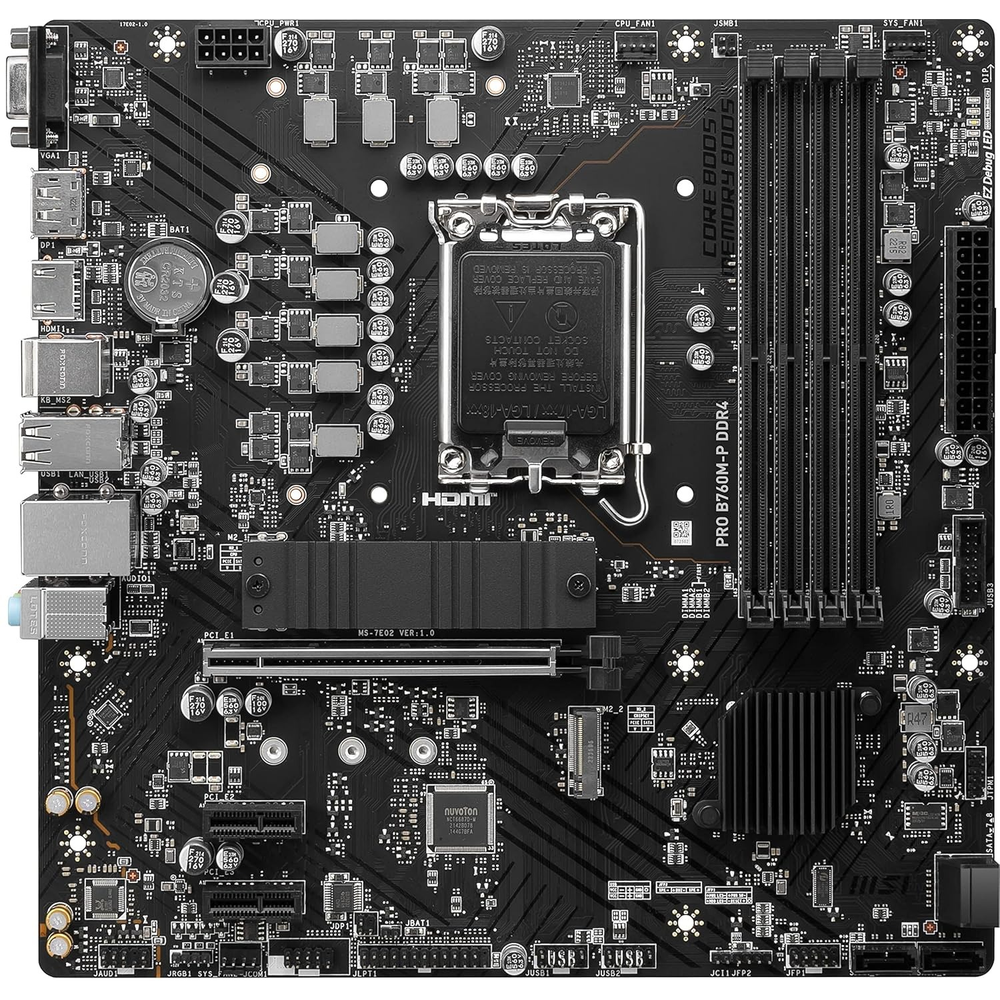

MSI PRO B760M-P DDR4 Motherboard
Brand: MSI
SKU: MSI-MOBO0527
Price: ₹7,499 (inclusive of GST · genuine product with warranty)
Most Affordable mATX Intel B760 PRO DDR4 Motherboard — PCIe 4.0, DDR4 4800+, Dual M.2 Gen4 with M.2 Shield Frozr for Intel Core 12th, 13th & 14th Gen. The MSI PRO B760M-P DDR4 is the most accessible B760 mATX board in MSI's PRO series for builders on a DDR4 platform. It features Core Boost, Memory Boost, Steel Armor PCIe slot, PCIe 4.0 x16, 2x M.2 PCIe 4.0 slots with M.2 Shield Frozr, DDR4 4800+ OC, and Gigabit LAN — a rock-solid foundation for budget Intel builds upgrading from older platfor
Specifications
| Type | Motherboard |
|---|---|
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| CPU Support | Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket |
| Connectivity | Realtek RTL8111H Gigabit LAN — no built-in Wi-Fi |
| PCIe Version | 4.0 |
| Video Output | 1x HDMI 1.4 (4K@30Hz), 1x DisplayPort 1.4 (4K@60Hz), 1x VGA |
| Power Delivery | Single 8-pin CPU connector, Core Boost, Memory Boost |
About this product
Most Affordable mATX Intel B760 PRO DDR4 Motherboard — PCIe 4.0, DDR4 4800+, Dual M.2 Gen4 with M.2 Shield Frozr for Intel Core 12th, 13th & 14th Gen.
The MSI PRO B760M-P DDR4 is the most accessible B760 mATX board in MSI's PRO series for builders on a DDR4 platform. It features Core Boost, Memory Boost, Steel Armor PCIe slot, PCIe 4.0 x16, 2x M.2 PCIe 4.0 slots with M.2 Shield Frozr, DDR4 4800+ OC, and Gigabit LAN — a rock-solid foundation for budget Intel builds upgrading from older platforms without the need to buy new DDR5 memory.
> CPU Support: Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket
> Power Delivery: Single 8-pin CPU connector, Core Boost, Memory Boost
> Storage: 2x M.2 — M.2_1: PCIe 4.0 x4 (CPU, 2280/2260/2242); M.2_2: PCIe 4.0 x4 / SATA (Chipset, 2280/2260/2242); 4x SATA 6G | RAID 0/1/5/10 — M.2 Shield Frozr on both slots
> Connectivity: Realtek RTL8111H Gigabit LAN — no built-in Wi-Fi
> USB: Rear — 1x USB 10Gbps Type-C, 1x USB 5Gbps Type-A, 4x USB 2.0; Front — 2x USB 5Gbps Type-A, 4x USB 2.0
> Video Output: 1x HDMI 1.4 (4K@30Hz), 1x DisplayPort 1.4 (4K@60Hz), 1x VGA
> Audio: Realtek ALC897, 7.1-Channel HD Audio
Specification
Details
Chipset
Intel B760
Socket
LGA 1700
Form Factor
mATX (243.84 x 243.84 mm)
Memory
4x DDR4 UDIMM, up to 128GB, DDR4 4800+ MT/s (OC) / 3200–2133 MT/s (JEDEC)
Memory Standard
Intel XMP, Dual Channel, non-ECC unbuffered
PCIe Slots
PCI_E1: PCIe 4.0 x16 (CPU, Steel Armor); PCI_E2: PCIe 4.0 x1 (Chipset); PCI_E3: PCIe 4.0 x1 (Chipset)
M.2 Slots
M.2_1: PCIe 4.0 x4 (CPU, 2280/2260/2242); M.2_2: PCIe 4.0 x4 / SATA (Chipset, 2280/2260/2242); M.2 Shield Frozr on both
