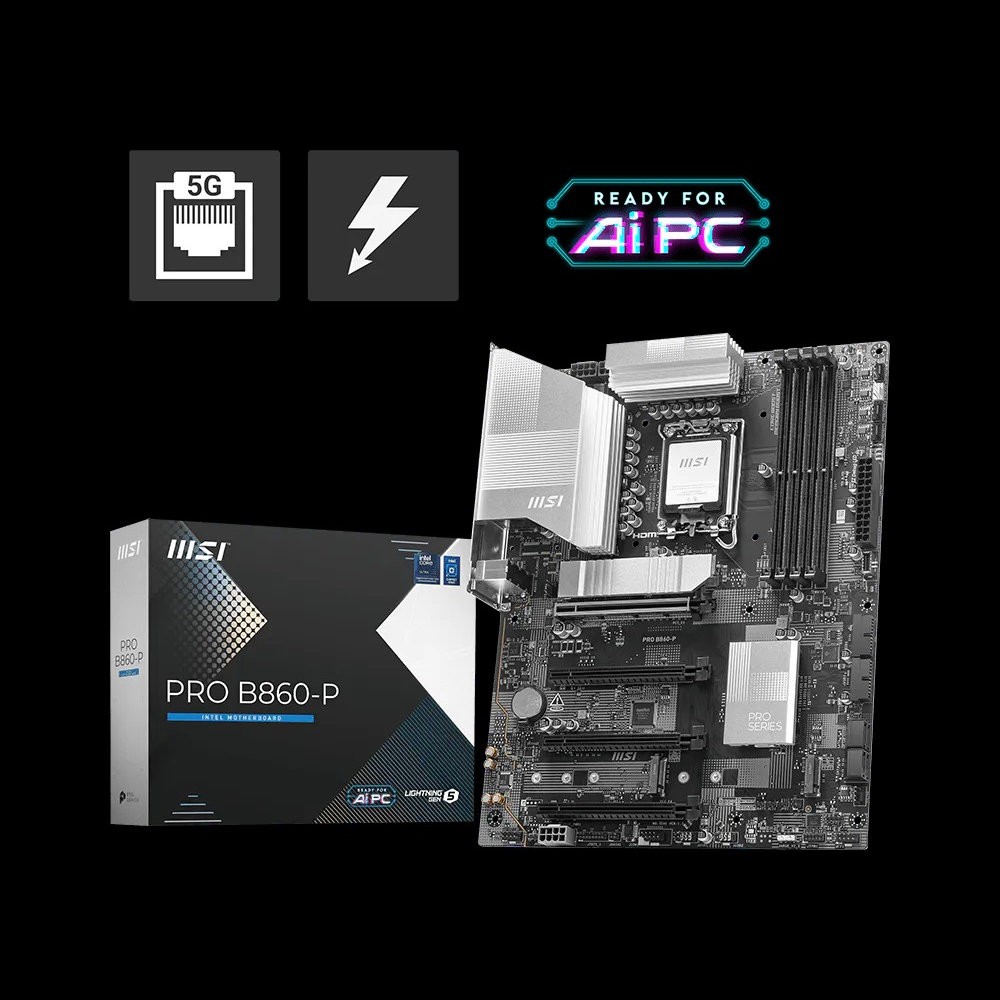

MSI PRO B860-P Motherboard
Brand: MSI
SKU: MSI-MOBO0500
Price: ₹17,999 (inclusive of GST · genuine product with warranty)
Silver Intel B860 ATX Motherboard — 5G LAN, Thunderbolt 4, PCIe 5.0, and M.2 Gen5 Without the Wi-Fi Premium. The MSI PRO B860-P is a clean silver ATX motherboard for Intel Core Ultra Series 2 processors on the LGA 1851 socket. It is the non-Wi-Fi variant of the PRO B860-P line, sharing the same strong feature set — Realtek 5G LAN, Thunderbolt 4, PCIe 5.0 x16, 3x M.2 slots with M.2 Gen5, Supplemental PCIe Power, and a 12+1+1+1 Duet Rail power system on a 6-layer server-grade PCB — at an even m
Specifications
| Type | Motherboard |
|---|---|
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| CPU Support | Intel Core Ultra Series 2, LGA 1851 socket |
| Ez Features | EZ M.2 Shield Frozr, EZ Debug LED, single-sided DIMM latches, pre-installed I/O shield |
| Connectivity | Realtek 8126 5G LAN, 1x Thunderbolt 4 rear port — no built-in Wi-Fi |
About this product
Silver Intel B860 ATX Motherboard — 5G LAN, Thunderbolt 4, PCIe 5.0, and M.2 Gen5 Without the Wi-Fi Premium.
The MSI PRO B860-P is a clean silver ATX motherboard for Intel Core Ultra Series 2 processors on the LGA 1851 socket. It is the non-Wi-Fi variant of the PRO B860-P line, sharing the same strong feature set — Realtek 5G LAN, Thunderbolt 4, PCIe 5.0 x16, 3x M.2 slots with M.2 Gen5, Supplemental PCIe Power, and a 12+1+1+1 Duet Rail power system on a 6-layer server-grade PCB — at an even more accessible price point.
> CPU Support: Intel Core Ultra Series 2, LGA 1851 socket
> Power Delivery: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU connectors, Core Boost, Memory Boost, supplemental PCIe power (8-pin), 6-layer server-grade PCB
> Storage: 3x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (Chipset, 2280/2260/2242); M.2_3: PCIe 4.0 x2 (Chipset, 2280/2260); 4x SATA 6G
> Connectivity: Realtek 8126 5G LAN, 1x Thunderbolt 4 rear port — no built-in Wi-Fi
> USB: Rear — 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 4x USB 2.0; Front — 4x USB 5Gbps, 1x USB 10Gbps Type-C, 4x USB 2.0
> EZ Features: EZ M.2 Shield Frozr, EZ Debug LED, single-sided DIMM latches, pre-installed I/O shield
> Audio: Realtek ALC897, 7.1-Channel HD Audio
Specification
Details
Chipset
Intel B860
Socket
LGA 1851
Form Factor
ATX (243.84 x 304.8 mm)
Memory
4x DDR5 UDIMM, up to 256GB, DDR5 8800+ MT/s (OC) / 6400–4800 MT/s (JEDEC)
Memory Standard
XMP 3.0, CUDIMM supported, Dual Channel, single-sided DIMM latches
PCIe Slots
PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 4.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset); PCI_E4: PCIe 4.0 x1 (Chipset)
M.2 Slots
3x M.2 — M.2_1: PCIe 5.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (Chipset); M.2_3: PCIe 4.0 x2 (Chipset)
