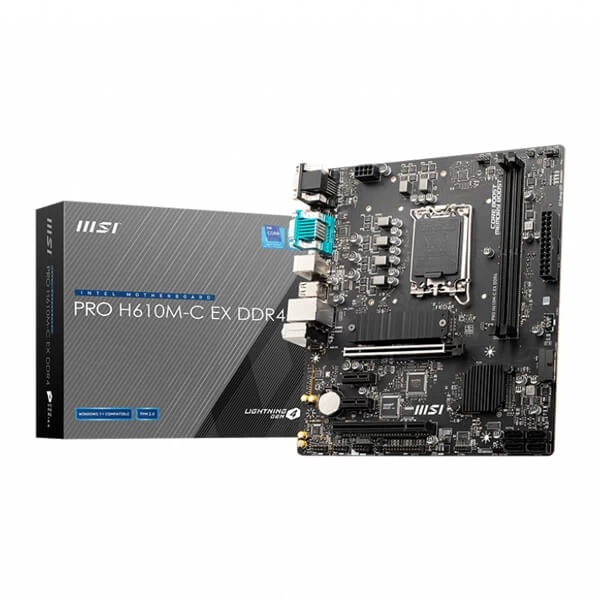

MSI Pro H610M-C EX DDR4 Intel Motherboard
Brand: MSI
SKU: PRO-H610M-C-EX-DDR4
Price: ₹9,450 (inclusive of GST · genuine product with warranty)
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket Supports DDR4 Memory, up to 3200(MAX) MHz Core Boost: With premium layout and digital power design to support more cores and provide better performance. Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility Lightning Fast Experience: PCIe 4.0 Audio Boost: Reward your ears with studio grade sound quality
Specifications
| PCIE | PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset) |
|---|---|
| Type | Motherboard |
| Audio | Realtek ALC897, 7.1-CH, Audio Boost, up to 192kHz |
| color | Black |
| Socket | LGA 1700 |
| Chipset | H610 |
| Storage | M2_1: PCIe 3.0 x4 (Chipset, 2280/2260/2242) — M.2 Shield Frozr; 4x SATA 6G |
| Platform | INTEL |
| Warranty | 3 Years |
| CPU Support | Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron — LGA 1700 socket |
| Connectivity | No Wi-Fi; Realtek RTL8111H 1G LAN |
| HDMI Version | 2.1 |
| PCIe Version | 4.0 |
| Product Type | Normal |
| Memory Series | DDR4 |
| EAN / UPC Code | 4719072974749 |
| Power Delivery | Core Boost, Memory Boost, 1x 8-pin CPU connector |
| Motherboard Size | ATX |
About this product
MSI PRO H610M-C EX DDR4 Motherboard, Micro-ATX – Support Intel Core 14th/ 13th/ 12th Gen Processors, LGA 1700 – DDR4 Memory Boost 3200MHz/MAX, PCIe 4.0 x16 Slot, M.2 Gen3 Slot
Feature
Intel Core 14th, 13th & 12th Gen – The PRO H610M-C EX DDR4 is a Micro-ATX motherboard outfitted with the Intel H610 chipset (LGA 1700, Intel Core 14th, 13th & 12th Gen); The VRM features MSI Core Boost technology for improved stability & performance
PASSIVE & AI COOLING – A chipset heatsink provides passive cooling; Frozr AI cooling automatically adjusts system fan settings based on CPU & GPU temperatures
DDR4 MEMORY, PCIe 4.0 x16 SLOT – 2 x DDR4 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 3200 MHz); The PCIe x16 slot supports PCIe 4.0 (64GB/s) graphics cards and includes Steel Armor
GEN3 M.2 SSD STORAGE – The M.2 Gen3 x4 32Gb/s slot is designed to maximize NVMe based SSD performance; SSD storage reduces loading time
WELL CONNECTED – Network hardware includes a 1Gbps LAN controller; Rear ports include USB 3.2 Gen 1 Type-A (5Gbps), HDMI 2.1 and 7.1 HD Audio with Audio Boost
TPM SUPPORT
The TPM (Trusted Platform Module) enhances security above and beyond the capabilities of consumer software, which is also used to keep your PC running well. MSI Pro H610M-C EX DDR4 motherboard support TPM to enable a deeper and broader level of security coverage.
SYSTEM SAFETY
MSI Pro H610M-C EX DDR4 Motherboard has SECURITY function in BIOS to protect every private files for no matter business or daily use.
HUMIDITY PROTECTION
Reduction in moisture absorption helps prevent "Conductive Anodic Filament". Untreated PCB's can have 10x higher failure rate.
HIGH TEMPERATURE PROTECTION
All key components used in MSI motherboards have all passed military testing ensuring stable operation in the harshest environments.
CIRCUIT PROTECTION
Carefully selected materials, multiple PCB layers and shielding result in the best circuit protection for MSI motherboards.
ESD PROTECTION
Each and every I/O port is protected against the hazards of Electro Static Discharge.
EMI PROTECTION
All MSI motherboards comply with strict American FCC regulations and reduce the impact of Electromagnetic Interference.
SECURE BOOT
Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.
M.2 SHIELD FROZR
