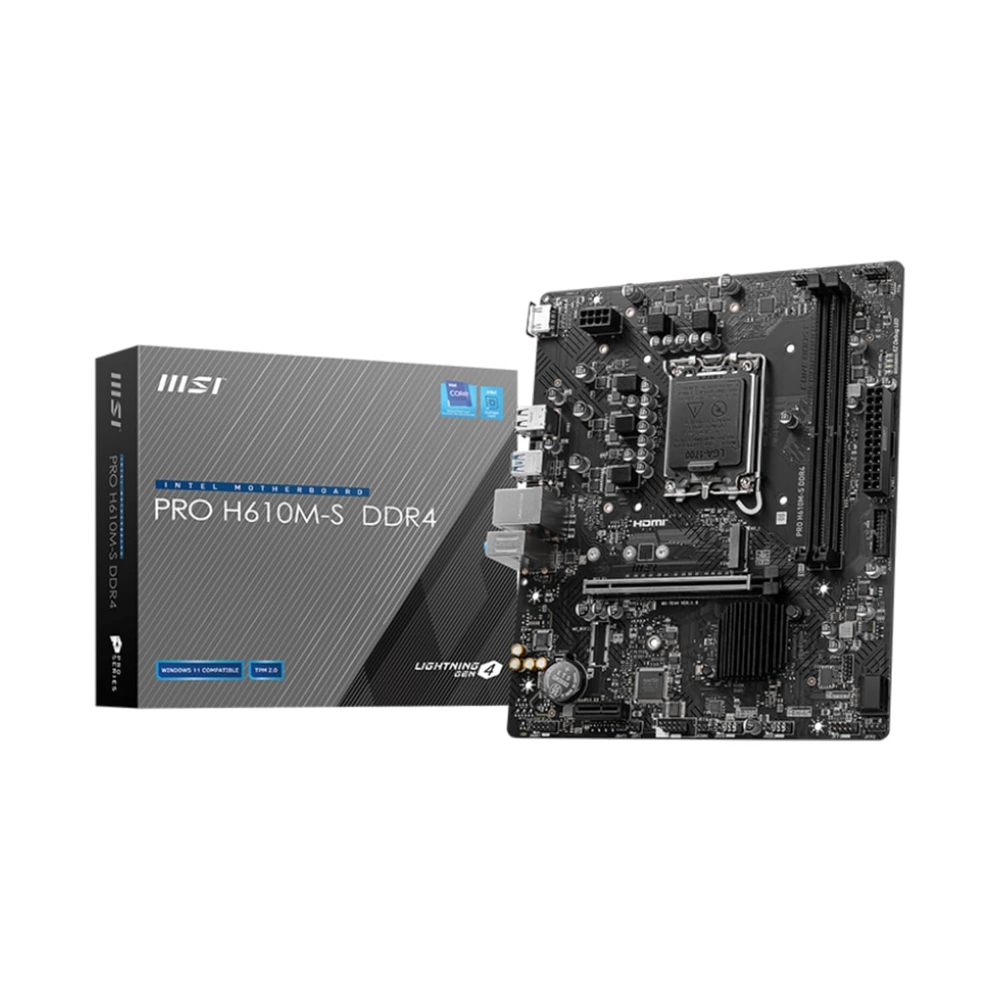

MSI PRO H610M-S DDR4 Motherboard
Brand: MSI
SKU: MOBO055000
Price: ₹10,350 (inclusive of GST · genuine product with warranty)
Intel H610 mATX Motherboard for LGA 1700 — DDR4 up to 3200MHz, No Wi-Fi, 1G LAN, PCIe 3.0 x4 M.2 (Chipset), PCIe 4.0 x16, HDMI 1.4, COM Port, USB 5Gbps, 12th / 13th / 14th Gen Intel Core Ready. The MSI PRO H610M-S DDR4 is the most affordable H610 DDR4 business mATX — stripped to the essentials for reliable, compact professional and office deployments. It features Core Boost VRM, Memory Boost DDR4 3200MHz, PCIe 4.0 x16, PCIe 3.0 x4 M.2 from chipset, Realtek 1G LAN, HDMI 1.4 output, Audio Boost
Specifications
| PCIE | PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset) |
|---|---|
| Type | Motherboard |
| Audio | Realtek ALC897, 7.1-CH, up to 192kHz |
| Storage | M2_1: PCIe 3.0 x4 (Chipset, 2242/2260/2280); 2x SATA 6G |
| CPU Support | Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron — LGA 1700 socket |
| Connectivity | No Wi-Fi; Realtek RTL8111H 1G LAN |
| HDMI Version | 1.4 |
| PCIe Version | 4.0 |
| Power Delivery | Core Boost, Memory Boost, 1x 8-pin CPU connector |
About this product
Intel H610 mATX Motherboard for LGA 1700 — DDR4 up to 3200MHz, No Wi-Fi, 1G LAN, PCIe 3.0 x4 M.2 (Chipset), PCIe 4.0 x16, HDMI 1.4, COM Port, USB 5Gbps, 12th / 13th / 14th Gen Intel Core Ready.
The MSI PRO H610M-S DDR4 is the most affordable H610 DDR4 business mATX — stripped to the essentials for reliable, compact professional and office deployments. It features Core Boost VRM, Memory Boost DDR4 3200MHz, PCIe 4.0 x16, PCIe 3.0 x4 M.2 from chipset, Realtek 1G LAN, HDMI 1.4 output, Audio Boost 7.1-CH, USB 5Gbps on rear and front, COM port, and TPM 2.0 — everything needed for a no-fuss Intel DDR4 build at the lowest entry price.
> CPU Support: Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron — LGA 1700 socket
> Power Delivery: Core Boost, Memory Boost, 1x 8-pin CPU connector
> Storage: M2_1: PCIe 3.0 x4 (Chipset, 2242/2260/2280); 2x SATA 6G
> Connectivity: No Wi-Fi; Realtek RTL8111H 1G LAN
> USB: Rear — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A; Front — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A
> PCIe: PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset)
> Audio: Realtek ALC897, 7.1-CH, up to 192kHz
Specification
Details
Chipset
Intel H610
Socket
LGA 1700
Form Factor
mATX (200 x 236.16 mm)
Memory
2x DDR4 UDIMM, up to 64GB; DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz (JEDEC); Dual Channel, Non-ECC Unbuffered
Memory Standard
Non-ECC Unbuffered DDR4, Dual Channel
PCIe Slots
PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset)
M.2 Slots
M2_1: PCIe 3.0 x4 (Chipset, 2242/2260/2280) — 1 slot only; No PCIe 4.0 M.2
