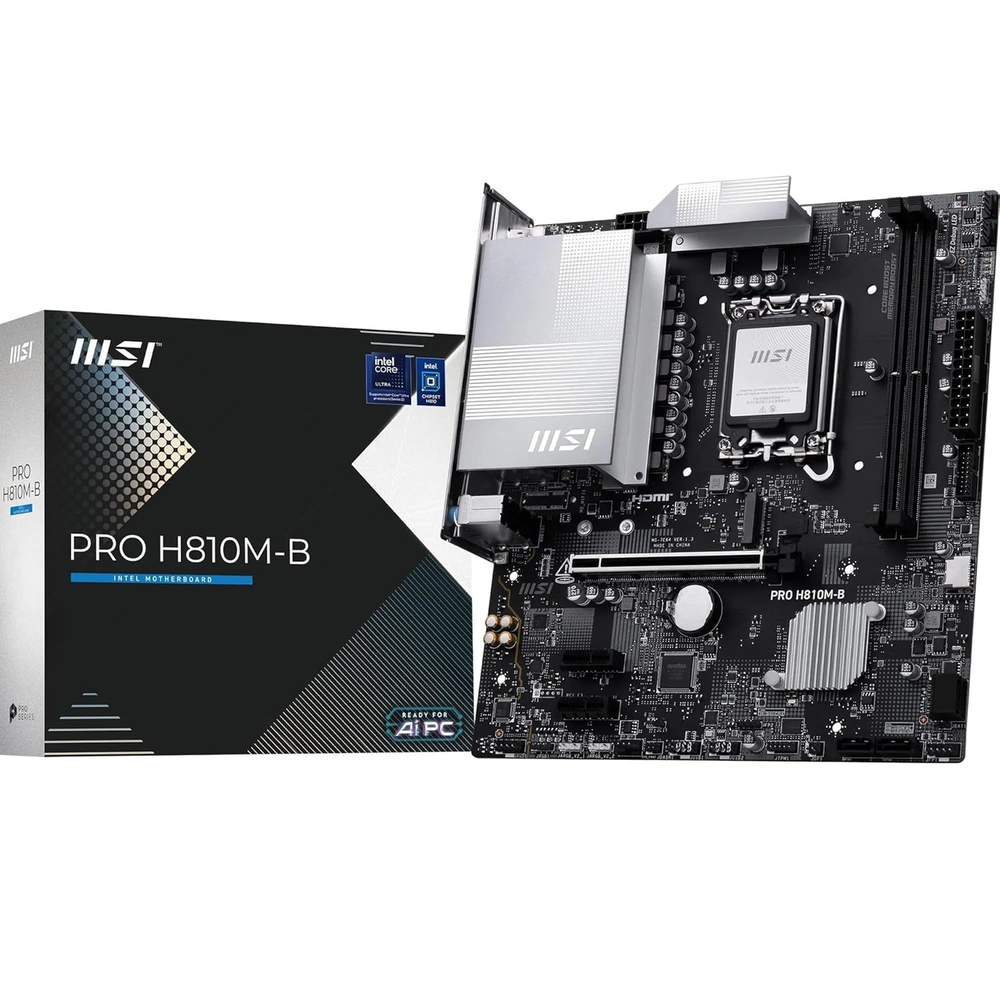

MSI PRO H810M-B Motherboard
Brand: MSI
Price: ₹21,999 (inclusive of GST · genuine product with warranty)
Intel H810 mATX Motherboard for LGA 1851 — DDR5 up to 6400MHz, No Wi-Fi, Realtek 2.5G LAN, PCIe 5.0 x16 Steel Armor, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, HDMI 2.1 + DisplayPort 1.4, USB 10Gbps Type-C Front, 3x ARGB V2 + 1x RGB, Intel Core Ultra Series 2 Ready. The MSI PRO H810M-B is a clean silver-design professional H810 mATX for Arrow Lake — delivering PCIe 5.0, 2.5G LAN, USB 10Gbps Type-C, and DDR5 6400 without Wi-Fi for the most cost-effective Arrow Lake professional deployment.
Specifications
| Type | Motherboard |
|---|---|
| Audio | Realtek ALC897, 7.1-CH, up to 192kHz |
| Storage | M2_1: PCIe 4.0 x4 (Chipset, 2280/2260) — M.2 Shield Frozr; 4x SATA 6G |
| Lighting | ARGB |
| CPU Support | Intel Core Ultra Processors Series 2 — LGA 1851 socket (Arrow Lake) |
| Connectivity | No Wi-Fi; Realtek 8125 2.5G LAN |
| HDMI Version | 2.1 |
| Power Delivery | Core Boost, Direct 6-phase, Memory Boost, 1x 8-pin CPU connector |
About this product
Intel H810 mATX Motherboard for LGA 1851 — DDR5 up to 6400MHz, No Wi-Fi, Realtek 2.5G LAN, PCIe 5.0 x16 Steel Armor, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, HDMI 2.1 + DisplayPort 1.4, USB 10Gbps Type-C Front, 3x ARGB V2 + 1x RGB, Intel Core Ultra Series 2 Ready.
The MSI PRO H810M-B is a clean silver-design professional H810 mATX for Arrow Lake — delivering PCIe 5.0, 2.5G LAN, USB 10Gbps Type-C, and DDR5 6400 without Wi-Fi for the most cost-effective Arrow Lake professional deployment. It features Core Boost VRM with Direct 6-phase power, M.2 Shield Frozr on Gen4 M.2, Steel Armor PCIe 5.0, Realtek 2.5G LAN, AI LAN Manager, XMP 3.0, CUDIMM support, 3x ARGB V2 + 1x RGB, JDASH Tuning Controller, EZ Debug LED, EZ Memory Detection LED, and full Intel Core Ultra Series 2 compatibility.
CPU Support: Intel Core Ultra Processors Series 2 — LGA 1851 socket (Arrow Lake)
Power Delivery: Core Boost, Direct 6-phase, Memory Boost, 1x 8-pin CPU connector
Storage: M2_1: PCIe 4.0 x4 (Chipset, 2280/2260) — M.2 Shield Frozr; 4x SATA 6G
Connectivity: No Wi-Fi; Realtek 8125 2.5G LAN
USB: Rear — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A; Front — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A, 1x USB 10Gbps Gen 2 Type-C
PCIe: PCI_E1: PCIe 5.0 x16 (CPU, Steel Armor); PCI_E2: PCIe 4.0 x1 (Chipset); PCI_E3: PCIe 4.0 x1 (Chipset)
Audio: Realtek ALC897, 7.1-CH, up to 192kHz
Specification
Details
Chipset
Intel H810
Socket
LGA 1851
Form Factor
mATX (220 x 243.84 mm)
Memory
2x DDR5 UDIMM (double-sided latch), up to 128GB; DDR5 6400(OC) / 4800(JEDEC) MHz; Intel XMP 3.0; CUDIMM supported; Dual-Controller Dual-Channel, Non-ECC Unbuffered
Memory Standard
Intel XMP 3.0, Non-ECC Unbuffered DDR5, Dual Channel
