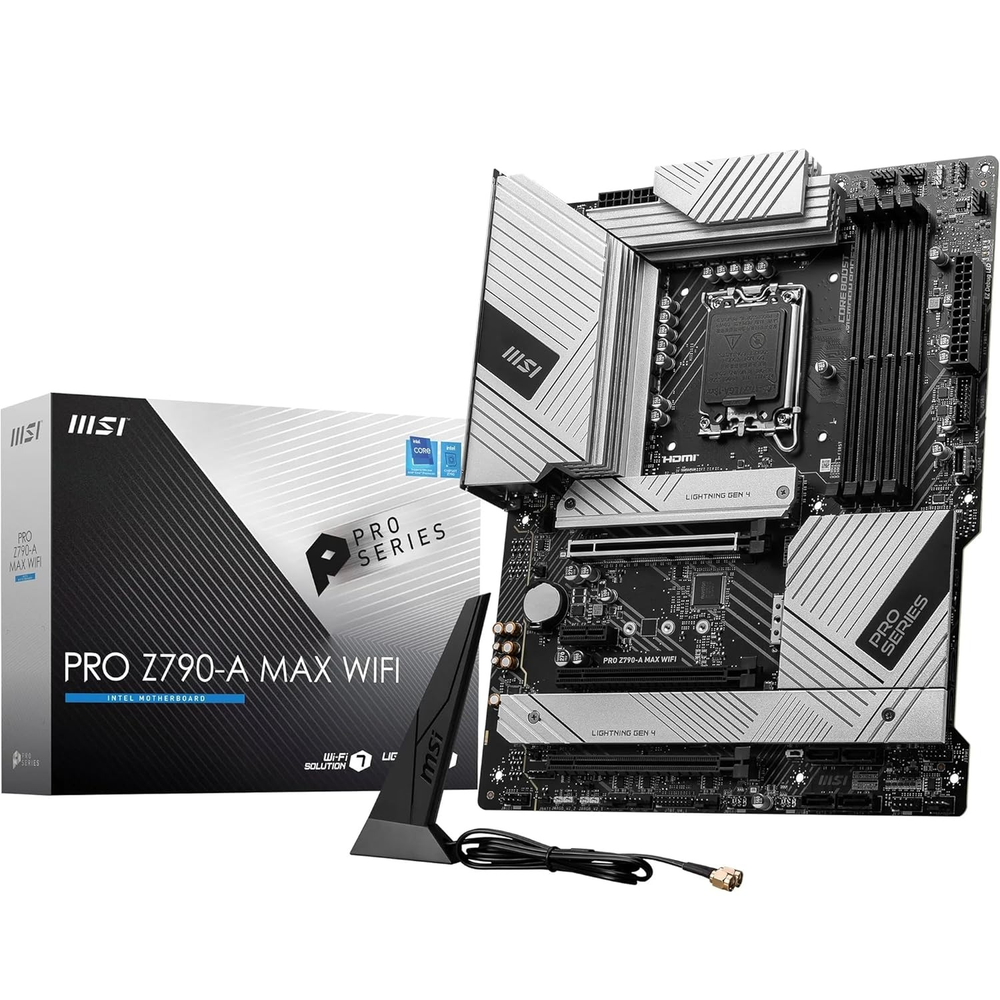

MSI PRO Z790-A MAX WIFI Motherboard
Brand: MSI
SKU: MSI-MOBO0457
Price: ₹29,999 (inclusive of GST · genuine product with warranty)
Professional Intel Z790 ATX Motherboard with Wi-Fi 7 — Engineered for Intel Core 12th, 13th & 14th Gen Performance. The MSI PRO Z790-A MAX WIFI is a feature-rich ATX motherboard for Intel Core 12th, 13th, and 14th Gen processors on the LGA 1700 socket. It upgrades the PRO Z790-A with Wi-Fi 7 connectivity while retaining a robust 16+1+1 Duet Rail power system, 4x M.2 PCIe 4.0 slots, 6x SATA, Realtek ALC4080 audio, and MSI's server-grade 6-layer 2oz copper PCB — a strong all-round platform for
Specifications
| Type | Motherboard |
|---|---|
| Audio | Realtek ALC4080, 7.1-Channel HD Audio, S/PDIF output, Audio Boost 5 |
| Storage | 4x M.2 (all PCIe 4.0), 6x SATA 6G — RAID 0/1/5/10 for both SATA and NVMe |
| CPU Support | Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket |
| Connectivity | Intel Wi-Fi 7 (802.11be, up to 5.8Gbps), Intel 2.5G LAN, Bluetooth 5.4 |
| Wi-Fi Version | 7 |
| Power Delivery | 16+1+1 Duet Rail Power System, 80A SPS, dual 8-pin CPU connectors, 6-layer 2oz copper server-grade PCB |
About this product
Professional Intel Z790 ATX Motherboard with Wi-Fi 7 — Engineered for Intel Core 12th, 13th & 14th Gen Performance.
The MSI PRO Z790-A MAX WIFI is a feature-rich ATX motherboard for Intel Core 12th, 13th, and 14th Gen processors on the LGA 1700 socket. It upgrades the PRO Z790-A with Wi-Fi 7 connectivity while retaining a robust 16+1+1 Duet Rail power system, 4x M.2 PCIe 4.0 slots, 6x SATA, Realtek ALC4080 audio, and MSI's server-grade 6-layer 2oz copper PCB — a strong all-round platform for builders and professionals alike.
> CPU Support: Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket
> Power Delivery: 16+1+1 Duet Rail Power System, 80A SPS, dual 8-pin CPU connectors, 6-layer 2oz copper server-grade PCB
> Storage: 4x M.2 (all PCIe 4.0), 6x SATA 6G — RAID 0/1/5/10 for both SATA and NVMe
> Connectivity: Intel Wi-Fi 7 (802.11be, up to 5.8Gbps), Intel 2.5G LAN, Bluetooth 5.4
> USB: Rear — 3x USB 10Gbps Type-A, 1x USB 20Gbps Type-C, 2x USB 5Gbps Type-A, 2x USB 2.0
> Expansion: 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4, 1x PCIe 3.0 x1, USB4 card connector (JTBT_U4)
> Audio: Realtek ALC4080, 7.1-Channel HD Audio, S/PDIF output, Audio Boost 5
Specification
Details
Chipset
Intel Z790
Socket
LGA 1700
Form Factor
ATX (243.84 x 304.8 mm)
Memory
4x DDR5 UDIMM, up to 192GB, DDR5 7800+ MT/s (OC) / 5600 MT/s (JEDEC)
Memory Standard
XMP 3.0, Dual Channel
PCIe Slots
PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset); PCI_E4: PCIe 3.0 x1 (Chipset)
M.2 Slots
4x M.2 — M.2_1: PCIe 4.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (Chipset); M.2_3: PCIe 4.0 x4 / SATA (Chipset); M.2_4: PCIe 4.0 x4 / SATA (Chipset)
