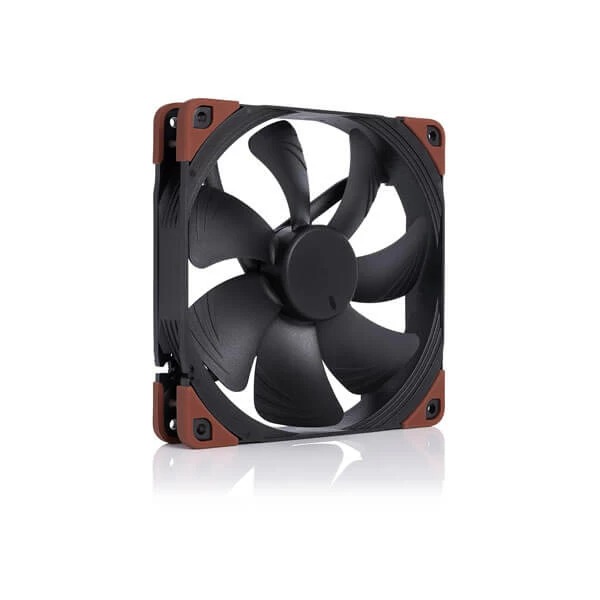

Noctua NF-A14 IndustrialPPC-2000 PWM Cabinet Fan (Single Pack)

Brand: Noctua

SKU: NF-A14iPPC-2000 PWM

Price: ₹2,999 (inclusive of GST · genuine product with warranty)

Heavy duty cooling fan, 140x140x25 mm, 12V, 4-pin PWM, max. 2000 RPM, max. 31.5 dB(A), >150,000 h MTTF Award-winning 140x25mm A-series fan with Flow Acceleration Channels and Advanced Acoustic Optimisation frame for superior cooling efficiency 12V 2000rpm model (31.5dB) with 4-pin PWM connector for automatic speed control via 4-pin PWM fan headers, broad 500-2000rpm speed range High-speed industrialPPC version for industrial heavy-duty applications that require extreme cooling performan

Specifications

About this product

Noctua NF-A14 IndustrialPPC-2000 PWM Cabinet Fan (Single Pack)

Feature

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the Noctua NF-A14 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the retail model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology ensures an MTTF of over 150.000hrs. Topped off with Noctua’s trusted reliability, the NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

Heavy duty cooling fan, 140x140x25 mm, 12V, 4-pin PWM, max. 2000 RPM, max. 31.5 dB(A), >150,000 h MTTF

Award-winning 140x25mm A-series fan with Flow Acceleration Channels and Advanced Acoustic Optimisation frame for superior cooling efficiency

12V 2000rpm model (31.5dB) with 4-pin PWM connector for automatic speed control via 4-pin PWM fan headers, broad 500-2000rpm speed range

High-speed industrialPPC version for industrial heavy-duty applications that require extreme cooling performance and advanced ingress protection

Ruggedised fibre-glass reinforced polyamide construction and IP52 certified water and dust protection

2000rpm industrialPPC version

Thanks to its elevated 2000rpm top speed, the NF-A14 industrialPPC-2000 provides a significant performance boost over the 1500rpm retail version. Combined with the industrialPPC series' robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications.

Three-phase motor design

While most axial fans use single-phase motors with 4 slots, Noctua's industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency.

IP52 water- and dust protection

Thanks to a special varnish coating that covers the motor and PCB, the NF-A14 industrialPPC complies with the ingress protection rating IP52. This means that it is not only highly dust resistant but also withstands dripping water equivalent to 3mm rainfall per minute.

Fibre-glass reinforced polyamide construction

Both the impeller and the frame of Noctua’s industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua’s standard fibre-glass reinforced PBT fans.

Please Note:

The industrialPPC models are high-speed fans for industrial applications. As such, they are not as quiet as other Noctua fans and less suited for low-noise PC builds.

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A14 industrialPPC features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer’s warranty.

Customisable for industry clients

For industry clients, various features, certificates, packaging options and accessories can be customised on requests. For example, we can provide 24V versions, different connectors and speeds, different cable length or UL and TÜV certification. Please feel free to contact us for customised offers!
