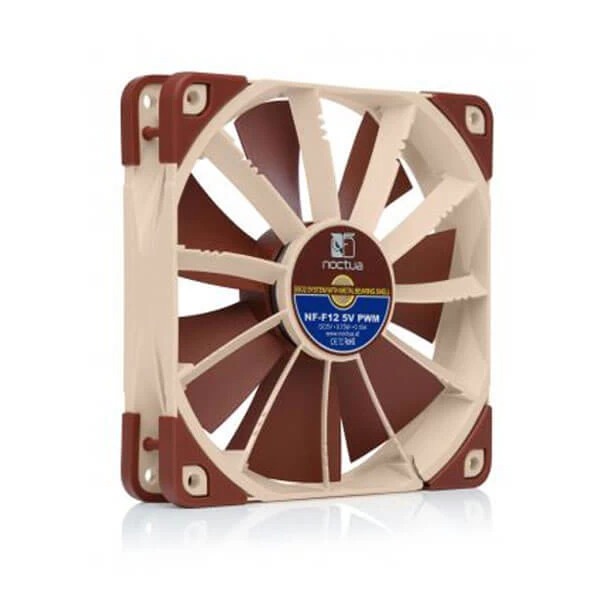

Noctua NF-F12 5V PWM 120mm Cabinet Fan (Single Pack)
Brand: Noctua
SKU: NF-F12-5V-PWM
Price: ₹2,249 (inclusive of GST · genuine product with warranty)
Premium quiet fan, 120x120x25 mm, 5V, 4-pin PWM, max. 1500 RPM, max. 22.4 dB(A), >150,000 h MTTF Award-winning 120x25mm Focused Flow design for superior quiet cooling performance 5V 4-pin PWM version with polarity protection for 5V applications with PWM speed control USB power adaptor cable allows the fan to run on devices with USB host ports, power banks or USB power supplies such as those used by smartphones Includes anti-vibration mounts, fan screws, extension cable and OmniJoin a
Specifications
| color | Brown |
|---|---|
| Fan Size | 120mm |
| Warranty | 6 years |
| FAN Speed | 1500 RPM |
| Product Type | Normal |
| Case Fan Pack | Single Pack |
| EAN / UPC Code | 9010018100273 |
About this product
Noctua NF-F12 5V PWM 120mm Cabinet Fan (Single Pack)
Feature
The Noctua NF-F12 5V PWM is a PWM-enabled 5V variant of Noctua’s award-winning, premium-quality NF-F12 120mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame and sophisticated aerodynamic design measures such as the FocusedFlow™ system, the NF-F12 is renowned for its superior performance and outstanding quietness of operation. Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearing guarantee superb running smoothness and excellent long-term stability. Topped off with the included USB power adaptor cable, OmniJoin™ adaptor set and 6-year manufacturer’s warranty, the NF-F12 5V PWM is a premium choice for demanding 5V applications that require PWM control.
Award-winning NF-F12 design
Having received more than 100 awards and recommendations from the international press, Noctua's NF-F12 has become a proven premium choice for 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
5V PWM version
5V fans are used in various devices and applications. With the included USB power adaptor cable and OmniJoin™ adaptor set, the NF-F12 5V PWM is a proven premium solution that gives you full flexibility both for replacing existing 5V fans and for new, custom applications.
Focused Flow™ frame
Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow™ frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
Varying Angular Distance and Vortex Control Notches
The NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear.
Heptaperf™ Impeller
Custom designed for the new Focused Flow™ frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven blade Heptaperf™ impeller has been carefully optimised to achieve a perfect balance between power and quietness.
Stepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
