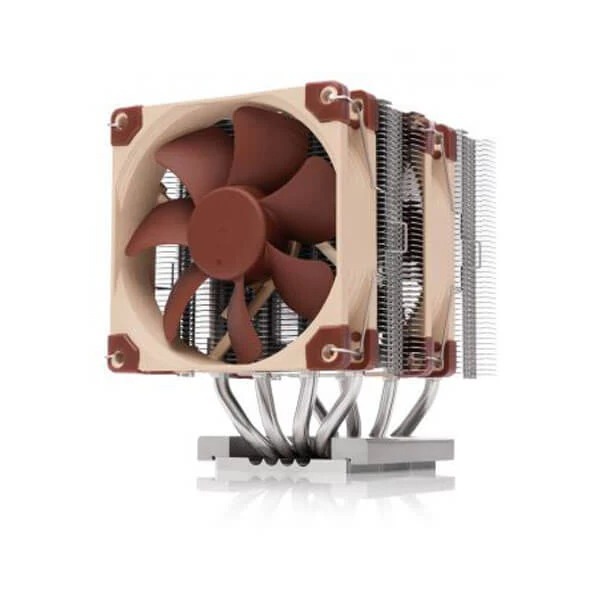

Noctua NH-D9 TR5-SP6 4U 92mm CPU Air Cooler (Brown)

Brand: Noctua

SKU: NH-D9-TR5-SP6-4U

Price: ₹11,200 (inclusive of GST · genuine product with warranty)

Compact 92mm size (134mm height) for excellent PCIe compatibility and 4U support, high cooling performance thanks to 6 heatpipes, dual tower design and two NF-A9 premium fans, ideal for quiet 4U servers Supports AMD SP6 socket for Epyc 8004 line server CPUs as well as sTR5 socket for 7000 series Threadripper (Pro) HEDT and workstations processors (TRX50/WRX90 chipsets, e.g. 7995WX, 7985WX, 7980X, 7970X, 7960X) Airflow path parallel to the long axis of the socket, ideal for systems where the

Specifications

About this product

Noctua NH-D9 TR5-SP6 4U, Premium Quality Quiet 92mm CPU Cooler for AMD Threadripper (sTR5) and Epyc 8004 (SP6)

Feature

Compact 92mm size (134mm height) for excellent PCIe compatibility and 4U support, high cooling performance thanks to 6 heatpipes, dual tower design and two NF-A9 premium fans, ideal for quiet 4U servers

Supports AMD SP6 socket for Epyc 8004 line server CPUs as well as sTR5 socket for 7000 series Threadripper (Pro) HEDT and workstations processors (TRX50/WRX90 chipsets, e.g. 7995WX, 7985WX, 7980X, 7970X, 7960X)

Airflow path parallel to the long axis of the socket, ideal for systems where the exhaust fans of the chassis are in this direction

Two award-winning NF-A9 fans (push/pull dual fan configuration), supporting PWM for automatic speed control through the motherboard: silent at idle, full CFM performance when necessary

Pre-applied NT-H2 thermal compound and easy, straightforward installation with included mounting tool

The Noctua NH-D9 TR5-SP6 4U is a 92mm size premium quality quiet CPU cooler for workstations and servers based on AMD Threadripper and Epyc processors that utilise sTR5/SP6 sockets. Built on the proven basis of the DX model with its dual tower heatsink and full-cover contact surface, the TR5-SP6 revision employs two of Noctua’s award-winning, PWM controlled NF-A9 92mm fans in their higher speed variant in order to achieve strong performance and superb acoustics. The NH-D9’s direction of airflow is parallel to the long axis of the socket, so it is ideal for builds where the hot air is exhausted this way. Topped off with the pre-applied NT-H2 thermal compound as well as the professional SecuFirm2™ mounting system for sTR5/SP6 that has been updated to meet the platform’s increased pressure specifications, the NH-D9 TR5-SP6 4U forms a complete premium quality package for quietly cooling sTR5-based Threadripper workstations and SP6-based Epyc servers in 4U cases.

Proven heatsinks for AMD Threadripper & Epyc

First introduced in 2017, Noctua’s Threadripper and Epyc coolers have become a standard choice when it comes to quiet, premium grade air cooling solutions for AMD-based workstations and servers. Thanks to their superior acoustic efficiency, they are ideal for Threadripper and Epyc systems that run in noise sensitive environments (e.g. audio/video production, content creation, engineering, etc.).

Enlarged contact surface

At 70x56mm, the heatsink’s copper contact surface is more than double the size of the standard desktop model. Tailored to fit the enormous integrated heat-spreaders (IHS) of AMD’s sTR5/SP6 based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.

Compact 92mm size for best compatibility

Thanks to its compact footprint (95x95mm with centre fan only, second fan can be installed on either side depending on available space) and a total height of only 134mm, the NH-D9 TR5-SP6 4U provides excellent PCIe compatibility and is small enough to fit most 4U size rack-mount enclosures.

Airflow parallel to long axis of the socket

The NH-D9’s direction of airflow is parallel to the long axis of the sTR5/SP6 socket, so it is ideal for systems where the exhaust fans of the chassis are in this direction. For systems that require the airflow to go perpendicular to the long axis of the socket, please choose the NH-U14S TR5-SP6 or adapt NH-U12S DX-4677 and NH-U9 DX-4677 coolers using the NM-TR5-SP6 kit.
