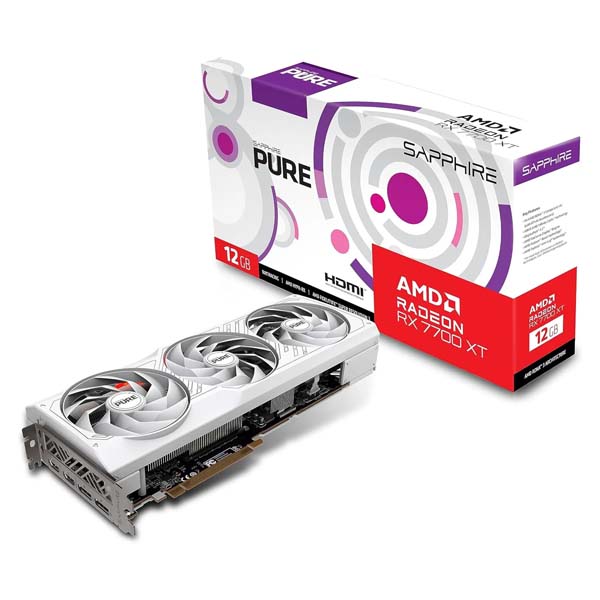

Sapphire Pure Amd Radeon Rx 7700 Xt 12Gb Graphics Card (11335-03-20G)
Brand: sapphire
SKU: 11335-03-20G
Price: ₹44,200 (inclusive of GST · genuine product with warranty)
Graphics Card: 12 GB GDDR6, PCIe 4.0 x16 interface, white triple‑fan design
Specifications
| BIOS | UEFI |
|---|---|
| Memory | 12 GB GDDR6 |
| Cooling | Triple‑fan Tri‑X, metal backplate, RGB LED |
| Dimensions | 320×128.75×52.57 mm |
| Game Clock | up to 2226 MHz |
| Memory bus | 192‑bit |
| Slot width | 2.5 slots |
| API support | DirectX 12 Ultimate, OpenGL 4.6, Vulkan |
| Boost Clock | up to 2584 MHz |
| Memory speed | 18 Gbps effective |
| Compute units | 54 |
| Infinity Cache | 48 MB |
| Max resolution | 7680×4320 |
| PCIe interface | PCIe 4.0 x16 |
| Display outputs | 2× HDMI 2.1, 2× DisplayPort 2.1 |
| Recommended PSU | 700 W |
| GPU architecture | AMD RDNA 3 |
| Power connectors | 2× 8‑pin |
| Stream processors | 3456 |
| Total board power | ≈240 W |
| Included accessory | Graphics card supporter |
About this product
Sapphire Pure Amd Radeon Rx 7700 Xt 12Gb Graphics Card (11335-03-20G)
Feature
Sapphire Pure Amd Radeon RX 7700 XT Series Graphics Card are designed with digital power which provides accurate power control and excellent power efficiency
GPU: Boost Clock: Up to 2584 MHz
GPU: Game Clock: Up to 2226 MHz
Memory: 12GB/192 bit DDR6. 18 Gbps Effective
Stream Processors: 3456
RDNA™ 3 Architecture
Ray Accelerator: 54
Digital Power Design
SAPPHIRE NITRO & PULSE AMD Radeon™ RX 7700 Series are designed with digital power which provides accurate power control and excellent power efficiency
Ultra High Performance Conductive Polymer Aluminum Capacitor
The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 14-phase power possible on the RX 7700 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.
Angular Velocity Fan Blade
The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.
GPU
AMD Radeon™ RX 7700 XT Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture
Engine Clock
Boost Clock: Up to 2584 MHz
Game Clock: Up to 2226MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
3456
Compute Units
54 CU (with RT+AI Accelerators)
Infinity Cache
48Mb
Ray Accelerators
54
