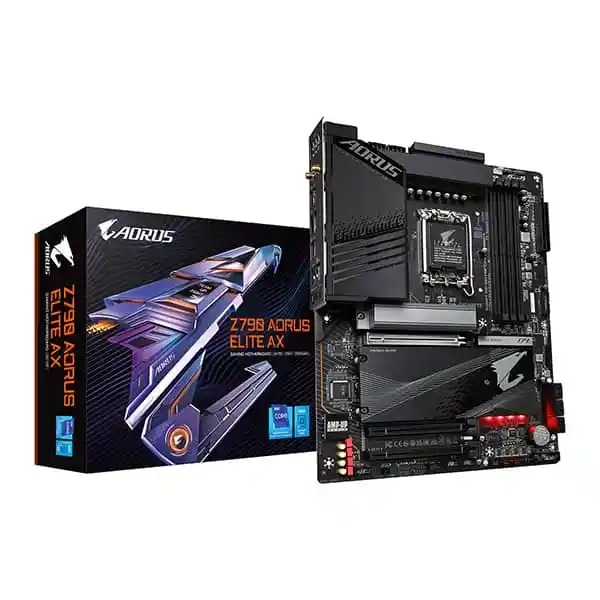

Gigabyte Z790 Aorus Elite AX DDR5
Brand: Gigabyte
SKU: Z790-AORUS-ELITE-AX
Price: ₹26,699 (inclusive of GST · genuine product with warranty)
Intel® Socket LGA 1700: Support 13th and 12th Gen Series Processors. Unparalleled Performance: Twin 16*+1+2 Phases Digital VRM Solution. Dual Channel DDR5: 4x SMD DIMMs with XMP 3.0 Memory Module Support. Next Generation Storage: 4x PCIe 4.0 x4 M.2 Connectors. Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD Performance. EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design. Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax.
Specifications
| LAN | Realtek 2.5 GbE |
|---|---|
| Audio | Realtek HD Audio codec, S/PDIF Out |
| Socket | LGA1700 |
| Chipset | Intel Z790 |
| Thermals | M.2 Thermal Guard III, MOSFET heatsinks |
| Wireless | Intel Wi‑Fi 6E AX211 (2.4/5/6 GHz), Bluetooth 5.3 |
| M.2 Slots | 4 × M.2 PCIe 4.0 x4 (22110/2280) |
| Max Memory | 256 GB |
| SATA Ports | 6 × SATA 6 Gb/s |
| Fan Headers | Multiple including CPU, system, pump |
| Form Factor | ATX (30.5 cm × 24.4 cm) |
| Memory Type | DDR5 |
| RGB Headers | Yes, addressable & RGB strip headers |
| Memory Slots | 4 DIMM |
| Memory Speed | DDR5‑7600 (OC) / up to DDR5‑4800 |
| Power Phases | Digital Twin 16+2+1 VRM |
| BIOS Features | Q‑Flash, Q‑Flash Plus |
| PCIe x16 Slot | 1 × PCIe 5.0 x16 |
| Video Outputs | 1×HDMI 2.1, 1×DisplayPort 1.2 |
| USB Ports Rear | 1×USB 3.2 Gen 2×2 Type‑C, 2×USB 3.2 Gen 2 Type‑A, 3×USB 3.2 Gen 1, 4×USB 2.0 |
| Unique Features | GIGABYTE Control Center support |
| USB Headers Internal | 1×USB‑C Gen 2, 1×USB 3.2 Gen 1, 2×USB 2.0 |
| Additional PCIe Slots | 2 × PCIe 4.0 x4 |
About this product
Gigabyte Intel Z790 AORUS ELITE AX DDR5 PCIe 5.0 ATX Motherboard
Feature
Gigabyte AORUS Gaming Motherboard for Intel Raptor Lake
Based on the Intel Z790 Express chipset, the Gigabyte Z790 AORUS ELITE AX motherboard will serve as the foundation for your high-performance processor-based Gaming PC with exclusive Gigabyte features like Smart Fan 6. It supports 12th and 13th generation Intel Core processors, PCI-Express 5.0 16x graphics cards, M.2 PCIe 4.0 SSDs, DDR5 RAM as well as USB 3.1 and 3.2 devices.
GIGABYTE Z790 AORUS ELITE AX
Support for 12th and 13th generation Intel Core processors on socket LGA 1700
Support for DDR5 7600 MHz memory (OC)
VRM 16+1+2 phases (8+8 parallel)
PCI-Express 5.0 16x
Smart Fan 6
EZ-Latch PLus : Quick lock/unlock of PCIe 5.0 x16 and M.2 (no screws required)
Wi-Fi 6E and Bluetooth 5.3 + 2.5 GbE LAN
Q-Flash Plus: Upgrade BIOS without installing CPU, Memory or Graphics Card
ALWAYS HIGHER
The 13th generation Intel Core processors for desktop PCs offer the most complete platform for using the gaming technologies you want. Thunderbolt 4 support offers a quick and easy way to connect peripherals. Push your machine further than the max: Enhanced overclocking on both sets of cores for performance at your level. You can play and stream at the same time, as much as you want.
Unparalleled Performance
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE Z790 AORUS ELITE AX motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimised performance for gaming.
Twin Digital VRM Design
To ensure maximum Turbo Boost and overclocking performance of Intel’s new generation CPU, GIGABYTE Z790 AORUS ELITE AX motherboard equip the best VRM design ever built with the highest quality components.
Design Ready for PCIe 5.0
PCIe 5.0 Design supports double the bandwidth of PCIe 4.0 and ensures that compatible with cutting-edge SSDs and GPUs released in the next few years to their full capability.
DDR5 Overclocking Up to 7600 and Beyond
AORUS is offering a tested and proven platform that has memory overclocking capability up to 7600 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their Z790 AORUS ELITE AX motherboard.
Triple 7G/s Gen4 M.2 PCIe SSDs in RAID 0
The exclusive 3 PCIe 4.0 M.2 from CPU and 2nd Generation 7000 MB/s SSD provides unparalleled Read/ Write performance up to 21053 and 15499 MB/s.
Outstanding Thermal Design
GIGABYTE Motherboards unparalleled performance is guaranteed by innovative and optimised thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
4X Large Surface
Increased surface area up to 4X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
Real One-Piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors’ multi-piece design.
Multi-Cut Design
TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.
M.2 Thermal Guard III
M.2 Thermal Guard III constructed with 9X optimized heat dissipation surface to prevent throttling and bottleneck that high-speed/ large capacity of PCIe 5.0 M.2 SSDs may cause, especially under heavy workload. The special design of heatsink grooves in the direction of CPU further enhances the in-chassis air flow and optimizes the heat convection efficiency.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Connectivity
GIGABYTE Z790 AORUS ELITE AX Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
802.11ax Wi-Fi 6E
