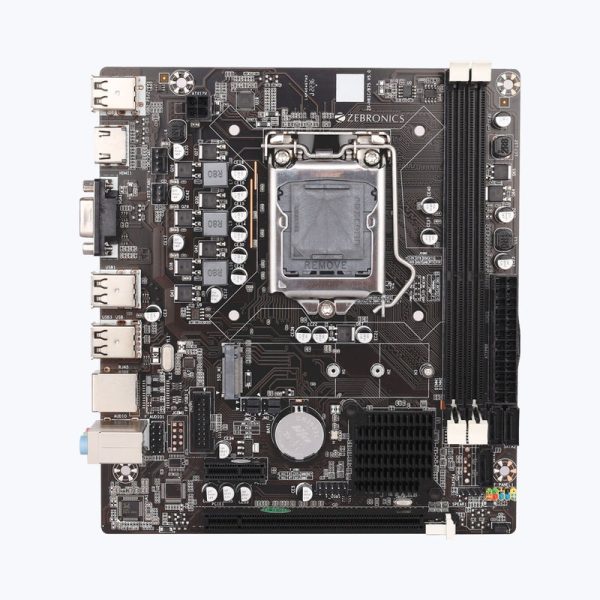

ZEBRONICS ZEB-H61M2 with PCIE M.2 / NVMe Slot (LGA 1155 Socket) Motherboard (Black)
Brand: Zebronics
SKU: ZEB-H61M2
Price: ₹1,199 (inclusive of GST · genuine product with warranty)
Suitable For Desktop, Workstation Intel H61 Express Chipset Data Rate DDR3 Maximum RAM Capacity 16 GB Form Factor: Micro-ATX
Specifications
| color | Black |
|---|---|
| RAM type | DDR3 |
| Warranty | 2 Year |
| Product Type | Normal |
| EAN / UPC Code | 2008475100409 |
| Motherboard Size | mATX |
About this product
ZEBRONICS ZEB-H61M2 with PCIE M.2 / NVMe Slot (LGA 1155 Socket) Motherboard (Black)
Feature
Socket Type : The motherboard ZEBRONICS features an LGA 1155 socket, which is compatible with Intel Core 2nd and 3rd Gen processors. Chipset : It utilizes the Intel H61 Express Chipset , providing essential features for stable system performance.
Memory Support :
The ZEB-H61M2 has two DDR3 dual-channel slots for RAM.
It supports DDR3 memory speeds of 1066/1333/1600MHz .
The maximum RAM capacity is 16 GB .
Audio :
The onboard audio solution uses the Realtek 662 audio codec .
You’ll find three audio jacks for 6-channel high-definition audio.
LAN (Network) :
The motherboard supports Realtek 8106E 10/100 Mbps Ethernet for network connectivity.
Back Panel Ports :
PS/2 Mouse/Keyboard Port : For legacy peripherals.
VGA Port : For connecting monitors.
HDMI Port : For high-definition video output.
Four USB 2.0 Ports : For connecting peripherals.
LAN Port : For wired network connectivity.
Three Audio Jacks : For audio output.
On-Board Connectors :
Front Panel Connector : Used for connecting power/reset buttons and LEDs.
Speaker Connector : For system audio.
Front Panel Audio Connector (2 x 5-pin) : Connects front panel audio jacks.
USB 2.0 Ports : Additional internal USB connectors.
SATA Ports (SATAII) : For connecting hard drives and optical drives.
CPU Fan Connector (4-pin) : For CPU cooling fans.
SYS Fan Connector : For system fans.
24-pin ATX Power Connector : Supplies power to the motherboard.
4-pin ATX 12V Power Connector : Provides additional power to the CPU.
3-pin Clear CMOS Header : Used for resetting BIOS settings.
Expansion Slots :
